Description
AF12-30-10-12

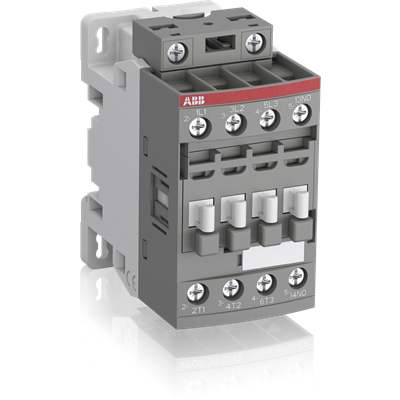

AF12-30-10-12 is a 3-pole contactor from ABB designed for reliable motor control and power circuit switching.
This contactor is suitable for controlling 3-phase motors and non-inductive loads, offering robust performance with a wide voltage range and built-in auxiliary contact. It features an electronic coil interface for both AC and DC operation, ensuring compatibility with various control systems. The AF12 series is known for its compact design, energy efficiency, and clear switching action.
-
Key Specifications
- Amperage: 12A (AC-3, 415V), 9A (AC-3, 690V)
- Voltage: Up to 690V AC, 220V DC
- Poles: 3
- Mounting Type: DIN Rail
- Interrupt Rating: 10 x Ie AC-3 making, 8 x Ie AC-3 breaking (per IEC 60947-4-1)
- Series/Frame: AF12
- Trip Unit: Not applicable (contactor only)
- Certifications: IEC 60947-4-1
- Coil Voltage: 48–130V AC/DC
- Auxiliary Contacts: 1NO
- Enclosure: IP20
- Operating Temperature: -60°C to +80°C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
This includes a 60 VAC coil.
Specifications
- Part Number: AF12-30-10-12
- Manufacturer : ABB
- Brand : ABB
- Category : Motor Control
- Item Subcategory : Contactor
- Family : A-Line
- Type : AF12
- Voltage : 600
- Amperage : 28
- Phase : 3
- Poles : 3
- Aux Contacts : 1 NO
- Coil Voltage Maximum : 130
- Coil Voltage Minimum : 48
Product Data
- UPC : 47152311032
- GTIN : 03471523110328
- Dimensions : Depth / Length 77 mm X Height 86 mm X Width 45 mm
- Weight : 0.6
