Description

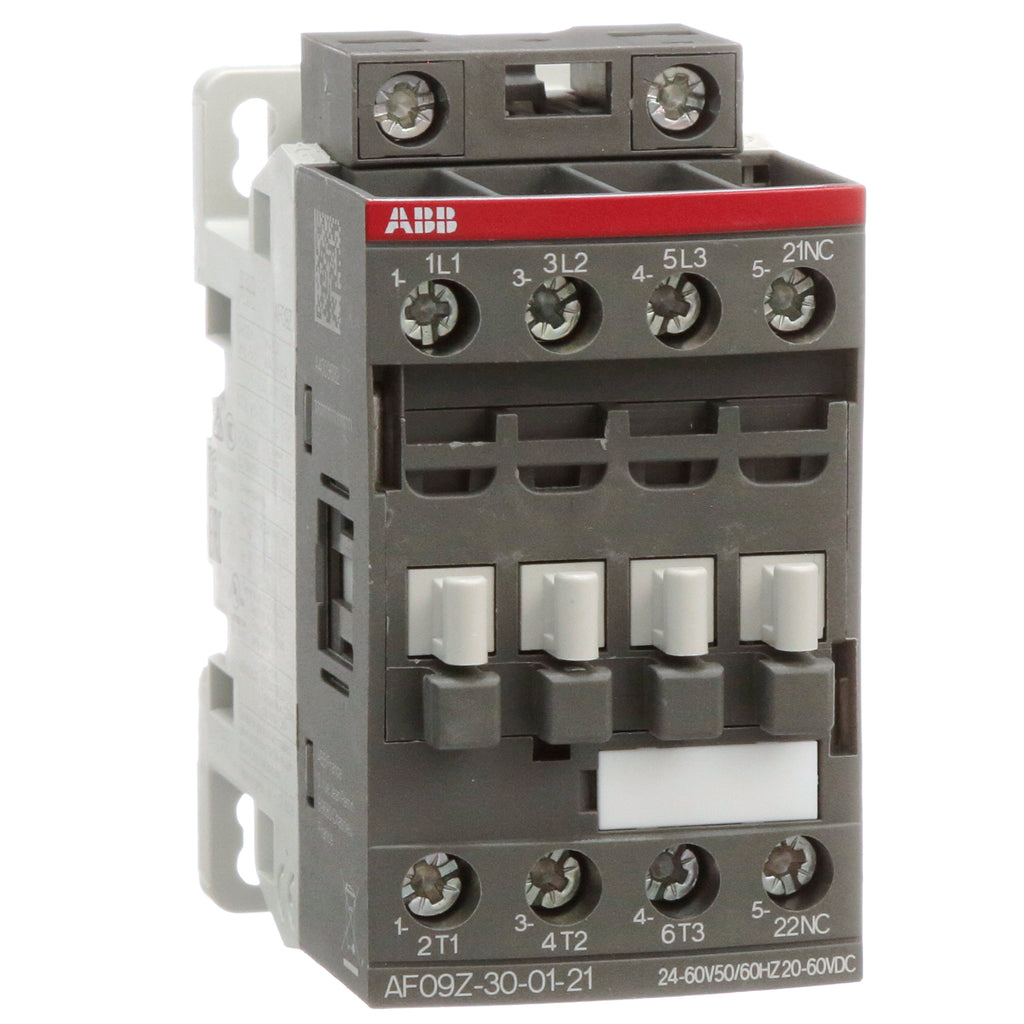

AF09Z-30-01-21
AF09Z-30-01-21 is an ABB 3 pole motor contactor designed for controlling motors up to 4 kW at 400 V with a 690 V IEC or 600 V UL rating and 1 built-in auxiliary contact.AF09Z-30-01-21 features screw terminals and supports coil voltages from 24 to 60 V AC or 20 to 60 V DC, suitable for motor starting and power switching applications. It offers reliable performance with low holding coil consumption and is certified for industrial use.
- Key Specifications
- Poles: 3
- Voltage Rating: 690 V IEC / 600 V UL
- Motor Power: Up to 4 kW at 400 V
- Coil Voltage: 24 to 60 V AC / 20 to 60 V DC
- Auxiliary Contacts: 1 built-in
- Terminal Type: Screw terminals
- Application: Motor control and power switching
- Series: AF09Z
- Mounting Type: Panel mount
- Interrupt Rating: Suitable for motor starting
- Certifications: IEC and UL compliant
Additional Information
This includes a 60 VAC coil.
Specifications
- Part Number: AF09Z-30-01-21
- Manufacturer : ABB
- Brand : ABB
- Category : Motor Control
- Item Subcategory : Contactor
- Family : A-Line
- Type : AF09
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 3
- Aux Contacts : 1 NC
- Coil Voltage Maximum : 60
- Coil Voltage Minimum : 24
Product Data
- UPC : 47152311331
- GTIN : 03471523113312
- Dimensions : Depth / Length 77 mm X Height 86 mm X Width 45 mm
- Weight : 0.68
