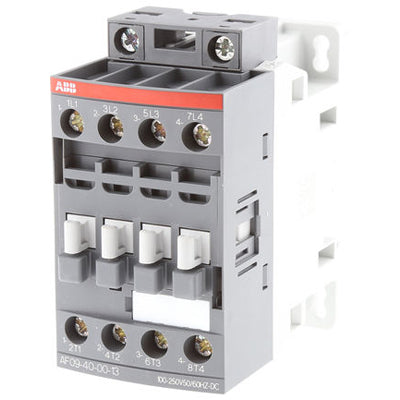

AF09-40-00-13 - ABB 4-Pole Contactor 25A 690V IEC 600V UL Screw Terminals Motor Control

AF09-40-00-13

AF09-40-00-13 is a 4-pole contactor from ABB designed for motor control applications with screw terminals and rated for up to 25 amps.AF09-40-00-13 contactor supports power circuits up to 690 V AC (IEC) and 600 V UL, suitable for controlling motors up to 4 kW at 400 V AC (AC-3). It features a robust design for non-inductive or slightly inductive loads and offers worldwide compatibility with control voltages from 24 to 500 V AC/DC. The contactor includes an electronic coil interface for reduced power consumption and extended operating limits.

Key Specifications
• Number of Poles: 4
• Current Rating: 25 A
• Voltage Rating: 690 V AC (IEC), 600 V UL
• Control Voltage Range: 24 to 500 V AC/DC
• Motor Power Rating: Up to 4 kW at 400 V AC (AC-3)
• Mounting Type: Screw Terminals
• Application: Motor Control, Non-inductive or Slightly Inductive Loads
• Interrupt Rating: Suitable for power circuits up to 690 V AC and 440 V DC
• Certifications: IEC and UL Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

This includes a 250 VDC coil.

Specifications

• Part Number: AF09-40-00-13
• Manufacturer : ABB
• Brand : ABB
• Category : Motor Control
• Item Subcategory : Contactor
• Family : A-Line
• Type : AF09
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 4
• Horse Power : HP @ 3 Phase - 208V 3 hp HP @ 3 Phase - 240V 3 hp HP @ 3 Phase - 480V 7 1/2 hp
• Aux Contacts : 4 NO + 0 NC
• Coil Voltage Maximum : 250
• Full Load Amps : Full Load Amps-Inductive 12A Full Load Amps-Resistive 25A
• Coil Voltage Minimum : 100
• Frequency : 50/60 Hz

Product Data

• UPC : 47152311503
• GTIN : 03471523115033
• Dimensions : Depth / Length 77 mm X Height 86 mm X Width 45 mm
• Weight : 0.6
