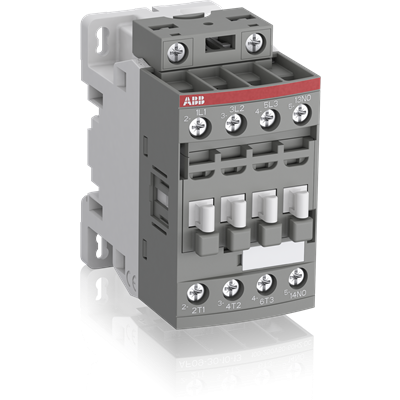

AF09-30-01-13 - ABB 3 Pole Miniature Contactor 25A 250V DIN Rail Mount

AF09-30-01-13

AF09-30-01-13 is a 3 pole miniature contactor from ABB designed for motor control applications with a 25A load current and 250V operating voltage.This contactor features screw terminals and a built-in auxiliary contact, suitable for controlling motors up to 4 kW at 400V or 5 hp at 480V. It supports a wide control voltage range of 100-250V AC/DC and complies with IEC 60947-4-1 and UL/CSA standards, rated for 690V insulation voltage and 6 kV impulse withstand voltage. The device is designed for DIN rail mounting and operates reliably in temperatures from -40°C to +70°C.

Key Specifications
• Poles: 3
• Load Current: 25A
• Operating Voltage: 250V AC
• Control Voltage Range: 100-250V AC/DC
• Motor Control Capacity: Up to 4 kW at 400V
• Mounting Type: DIN Rail
• Built-in Auxiliary Contact: 1 NO
• Rated Insulation Voltage: 690V IEC / 600V UL
• Impulse Withstand Voltage: 6 kV
• Operating Temperature: -40°C to +70°C
• Standards: IEC 60947-4-1, UL/CSA
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Additional Information

This includes a 250 VDC coil.




Specifications

• Part Number: AF09-30-01-13
• Brand : ABB
• Category : Motor Control
• Item Subcategory : Contactors
• Section : Contactors
• Family : AF09
• Aux Contacts : 1 NC



Product Data

• UPC : 3471523110137
• Dimensions : 86 mm H x 45 mm W x 77 mm D
• Weight : 4
