Description

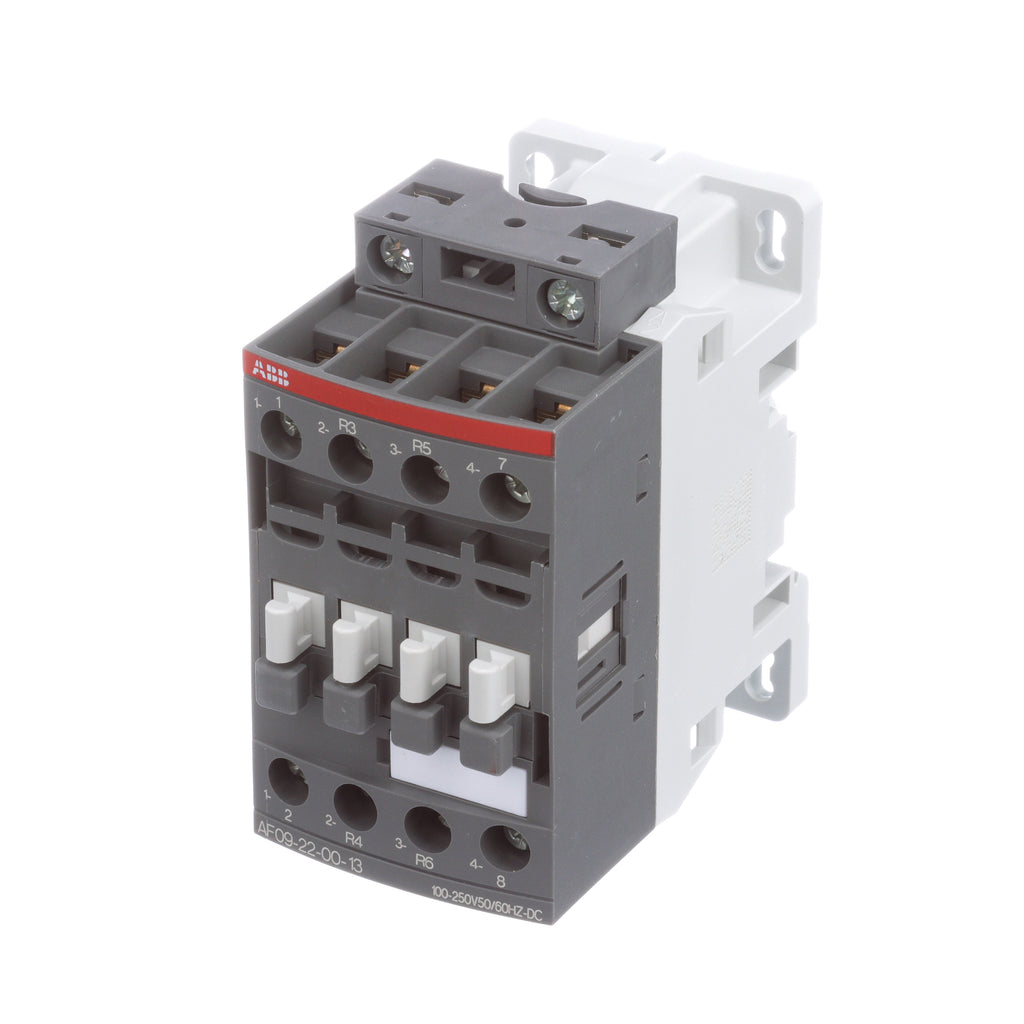

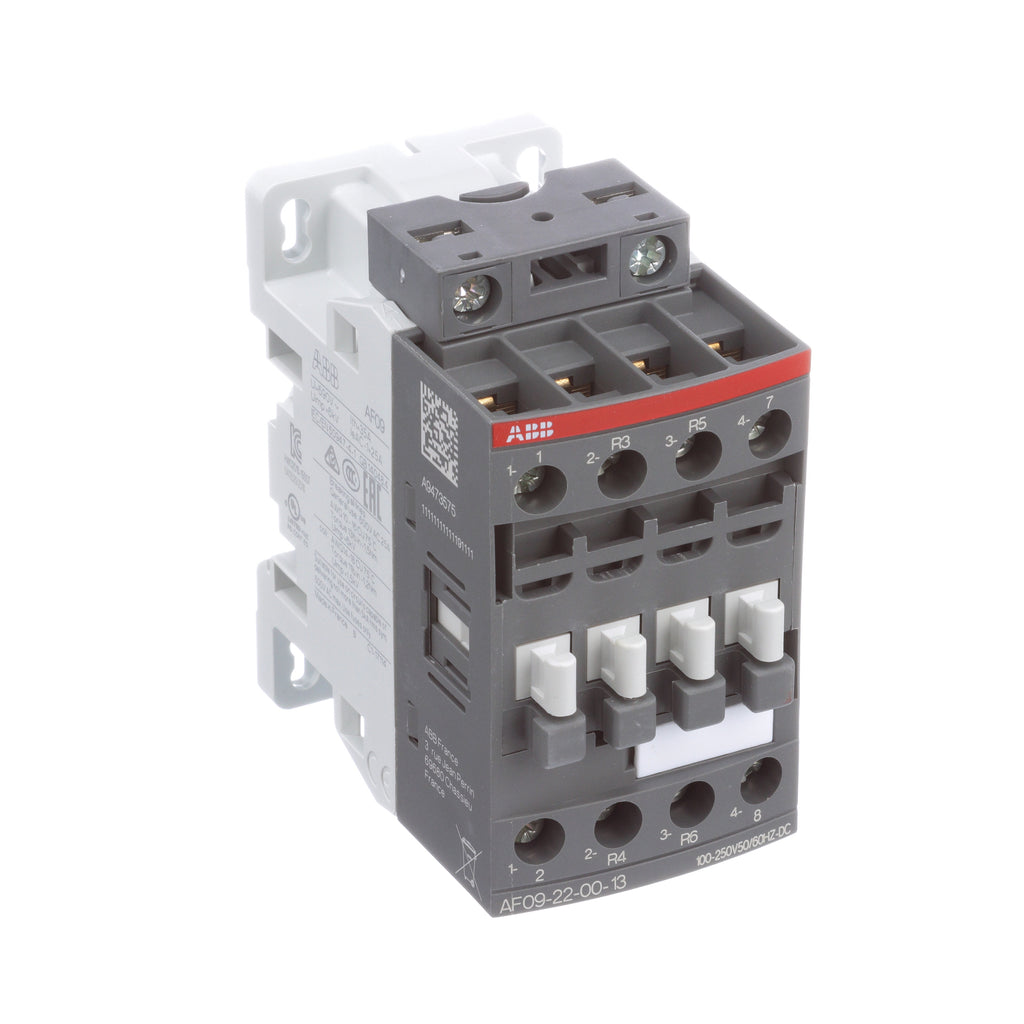

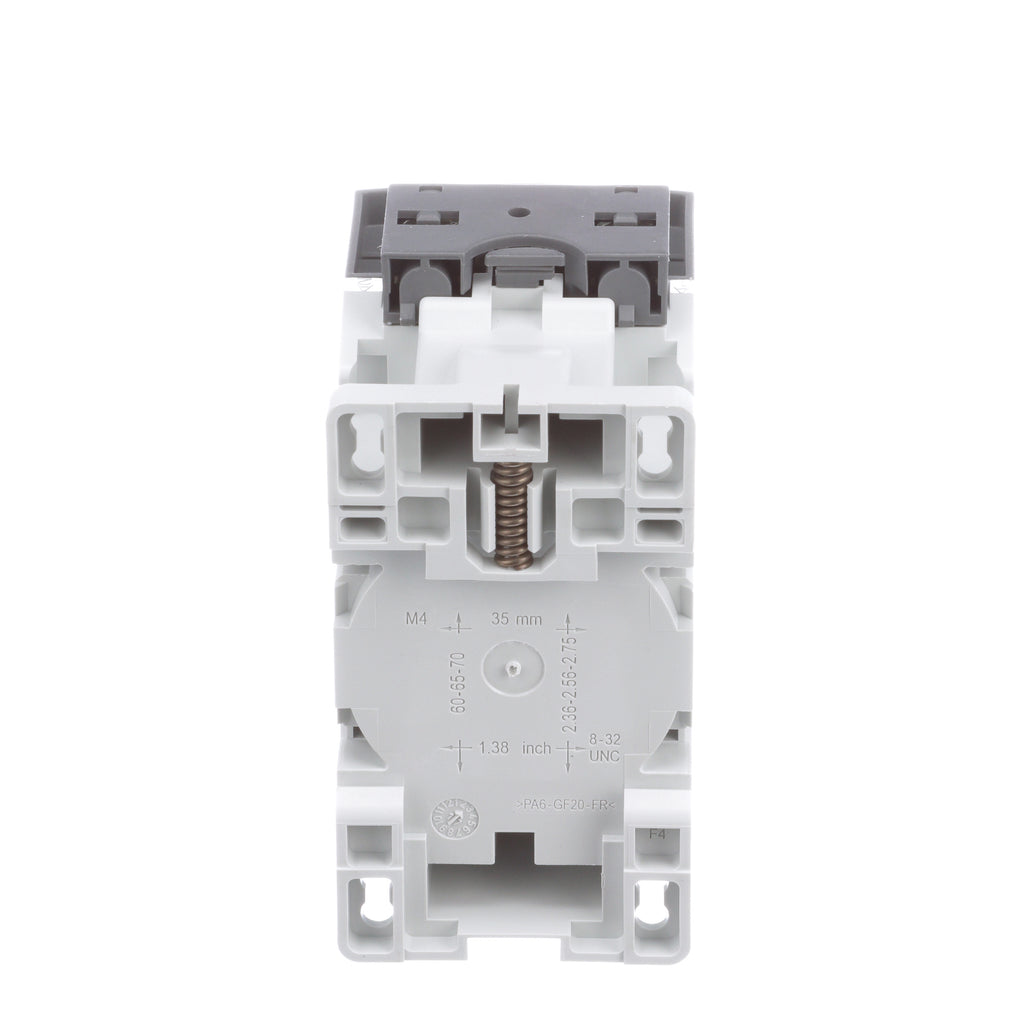

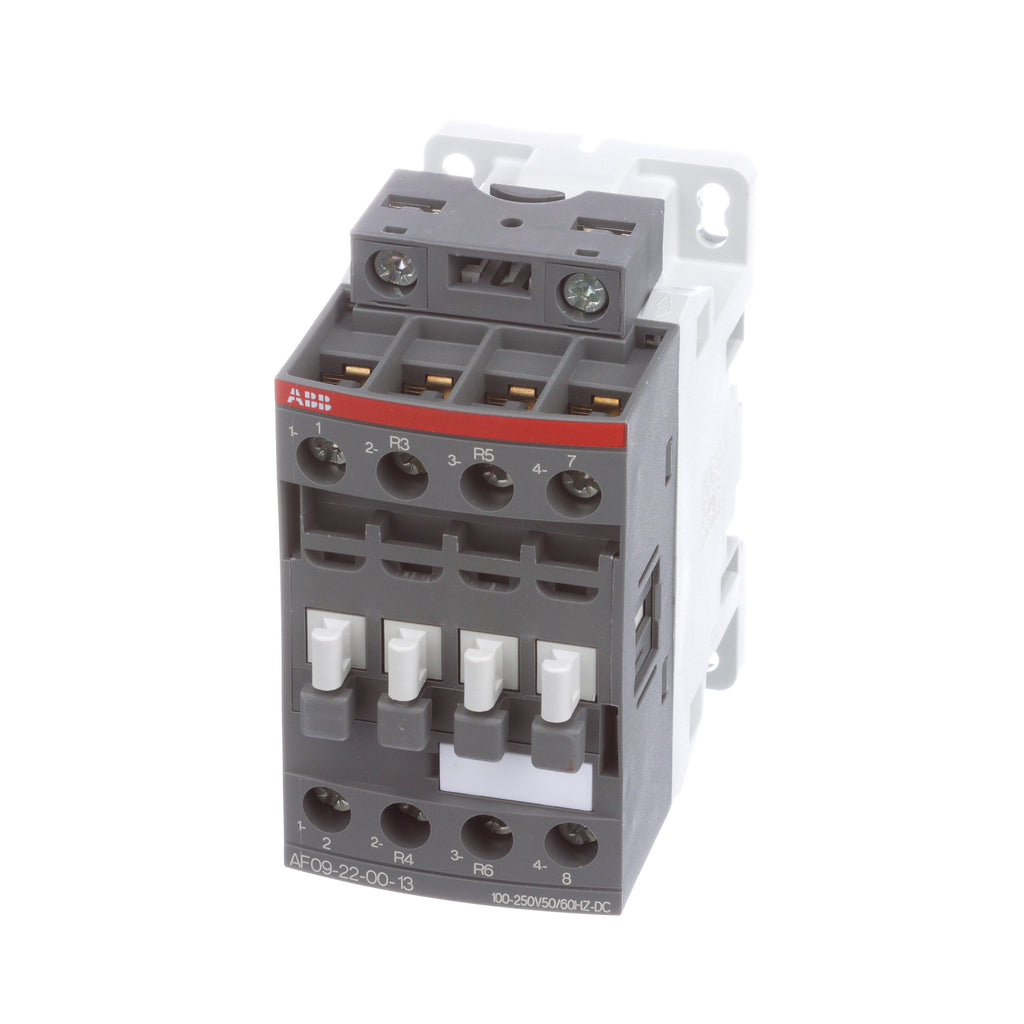

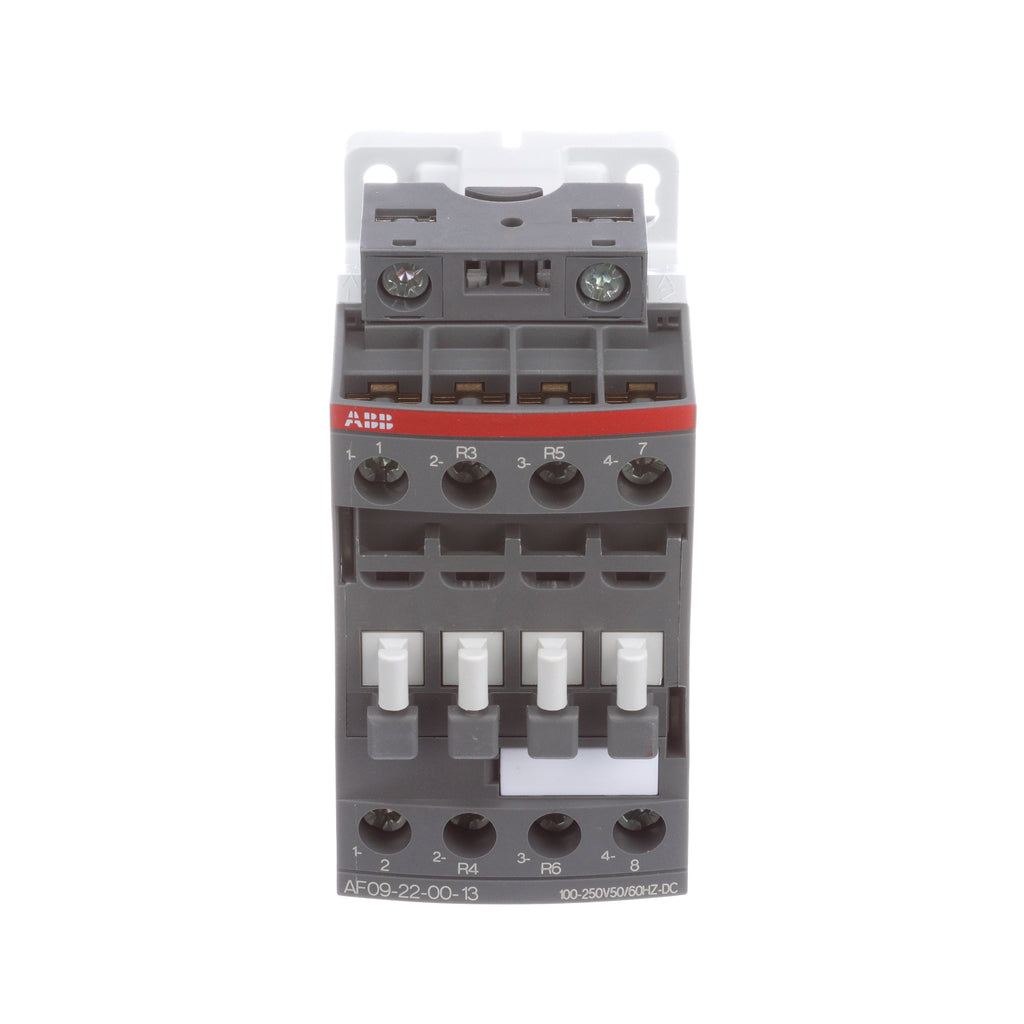

AF09-22-00-13
AF09-22-00-13 is a 4-pole motor contactor from ABB designed for controlling power circuits up to 690 V AC with a 25 ampere rating.This ABB AF09-22-00-13 contactor features a 4-pole configuration, suitable for motor control applications up to 4 kW at 400 V AC (AC-3). It operates with a coil voltage range of 100-250 V AC/DC and includes screw terminals for secure connections. The device is non-reversing and built to IEC standards, supporting loads with high durability and reliability.
- Key Specifications
- Amperage: 25 A
- Voltage Rating: 690 V AC / 240 V DC
- Poles: 4-pole
- Coil Voltage: 100-250 V AC/DC
- Mounting Type: Screw terminals
- Interrupt Rating: Suitable for motor control up to 4 kW at 400 V AC (AC-3)
- Non-reversing contactor
- Series/Frame: AF09
- Operating Temperature: -40°C to +70°C
- Mechanical Durability: 10 million operating cycles
- Certifications: IEC compliant
Additional Information
This includes a 250 VDC coil.
Specifications
- Part Number: AF09-22-00-13
- Manufacturer : ABB
- Brand : ABB
- Category : Motor Control
- Item Subcategory : Contactor
- Family : A-Line
- Type : AF09
- Voltage : 600
- Amperage : 25
- Phase : 3
- Poles : 4
- Aux Contacts : 2 NO + 2 NC
- Coil Voltage Maximum : 250
- Coil Voltage Minimum : 100
- Frequency : 50/60 Hz
Product Data
- UPC : 47152311623
- GTIN : 03471523116238
- Dimensions : Depth / Length 77 mm X Height 86 mm X Width 45 mm
- Weight : 0.6
