AF09-22-00-11 - ABB 4-Pole 690V IEC / 600V UL Motor Contactor with Screw Terminals

AF09-22-00-11

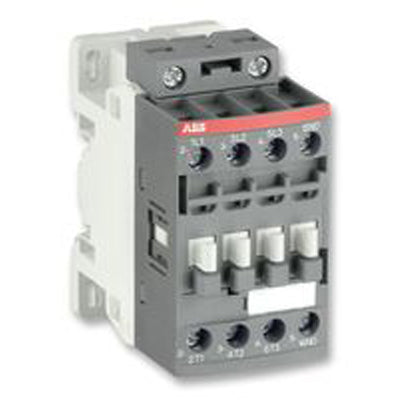

AF09-22-00-11 is a 4-pole motor contactor from ABB designed for controlling power circuits up to 690 V AC (IEC) or 600 V AC (UL) with screw terminals.This contactor is suitable for controlling 3-phase motors up to 4 kW at 400 V AC (AC-3 utilization category). It features a coil voltage rating of 60 V AC, a contact current rating of 25 A, and is built for high mechanical durability with up to 10 million operating cycles. The device supports both AC and DC control voltages and is designed for mounting in position B2. It offers reliable switching performance with a maximum switching frequency of 600 cycles per hour (AC-1) and withstands shock according to IEC standards.

Key Specifications
• Poles: 4
• Rated operational voltage: 690 V AC (IEC), 600 V AC (UL)
• Contact current rating: 25 A
• Motor control power: up to 4 kW at 400 V AC (AC-3)
• Coil voltage: 60 V AC
• Mounting type: Screw terminals, mounting position B2
• Mechanical durability: 10 million operating cycles
• Max switching frequency: 600 cycles/h (AC-1)
• Shock withstand: IEC 60068-2-27
• Control voltage range: 24-500 V AC / 12-500 V DC
• Tightening torque: 1.5 Nm main terminals, 1.2 Nm coil terminals
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: AF09-22-00-11
• Manufacturer : ABB
• Brand : ABB
• Category : Motor Control
• Item Subcategory : Contactor
• Family : A-Line
• Type : AF09
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 4
• Coil Voltage Maximum : 60
• Coil Voltage Minimum : 20



Product Data

• UPC : 47152311621
• GTIN : 03471523116214
• Dimensions : Depth / Length 77 mm X Height 86 mm X Width 45 mm
• Weight : 0.6
