Product Info
- Manufacturer:Appleton
- Sub-Category:Pin-and-sleeve plug/receptacle system
Description
ADR6044RS

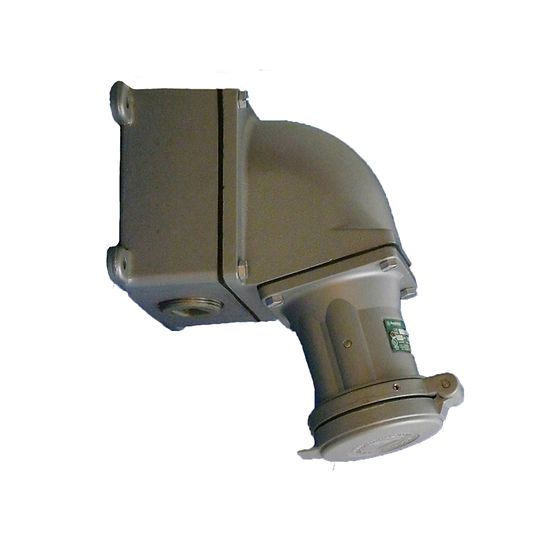

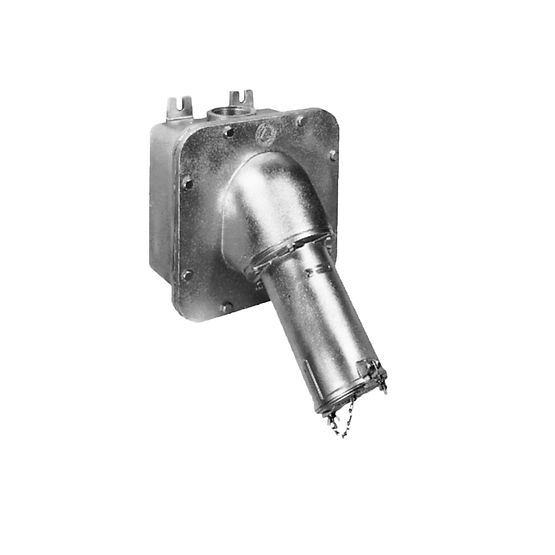

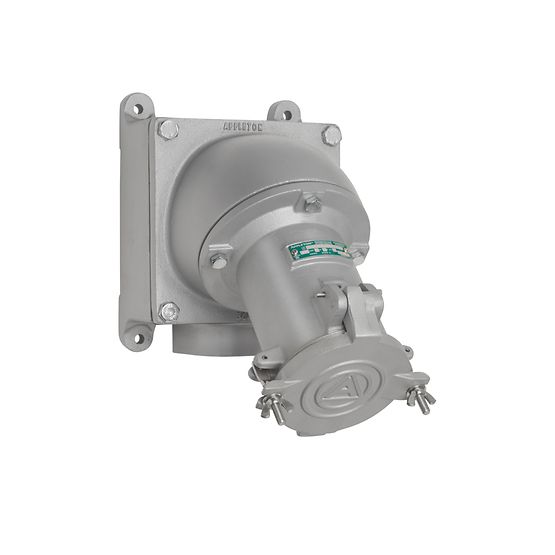

ADR6044RS is an Appleton Powertite pin and sleeve receptacle designed for robust industrial power distribution.
This heavy-duty receptacle features a reverse service type, epoxy powder coated copper-free aluminum housing, and pressure wire terminals for secure connections. It is engineered for demanding environments with a wide temperature range and meets rigorous safety and performance standards.
-
Key Specifications
- Amperage: 60A
- Voltage: 600VAC/250VDC
- Poles: 4
- Mounting Type: Not specified in available data
- Interrupt Rating: Not specified in available data
- Series/Frame: ADR Series
- Trip Unit: Not applicable (receptacle, not a breaker)
- Certifications: UL 1682, UL 1686, UL 50E (UL Listed: E145916, E145917); CSA C22.2 No. 182.1 (CSA Certified: 065179)
- Wire Size: 6–2 AWG (Building), 6–4 AWG (Extra Flex)
- NEMA Rating: 3/3R/4/4X
- Temperature Rating: -40 to 225°F
- Frequency Rating: 50/400 Hz
- Material: Copper-free aluminum
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
Industrial duty; interlocked/with-switch options
Specifications
- Part Number: ADR6044RS
- Manufacturer : Appleton
- Brand : Appleton
- Category : Wiring Devices
- Item Subcategory : Pin-and-sleeve plug/receptacle system
- Family : ADR
- Voltage : 600/250 600/250 /DC
Product Data
- UPC : 781381710916
- GTIN : 00781381710916
- Dimensions : 4.88 in H x 4.25 in W
- Weight : 5.19
