Product Info
- Manufacturer:Appleton
- Sub-Category:Pin-and-sleeve plug/receptacle system
Description
ADR6033

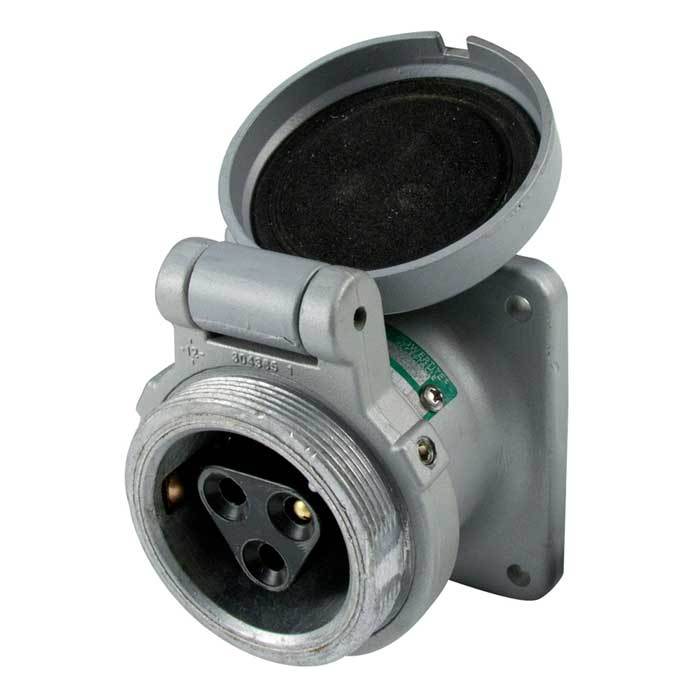

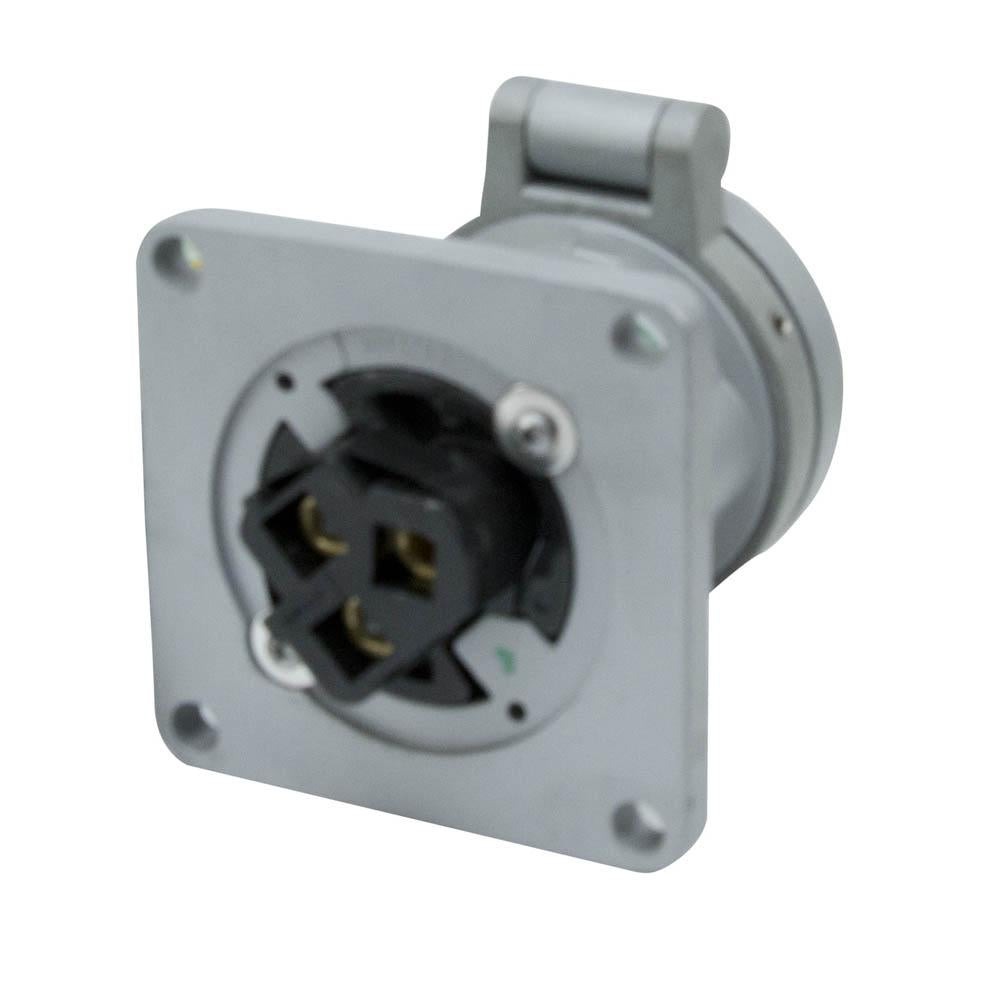

ADR6033 is a 60 Amp, 600 Volt, 3-Pole, 3-Wire Powertite Pin and Sleeve Receptacle from Appleton designed for heavy-duty electrical connections.ADR6033 features a durable copper-free aluminum construction with a NEMA 3/3R/4/4X rating, suitable for harsh environments. It includes a spring door, pressure wire terminals, and is rated for 50/400 Hz frequency and 30 horsepower. The device provides safe, reliable power with recessed contacts in an arc snuffing chamber, positive polarization, and a neoprene sealing bushing to protect against water and dust ingress.
- Key Specifications
- Amperage: 60 A
- Voltage: 600 VAC / 250 VDC
- Poles: 3
- Wires: 3
- Frequency: 50/400 Hz
- NEMA Rating: 3/3R/4/4X
- Material: Copper-Free Aluminum
- Mounting Type: Surface Mount
- Terminal Type: Pressure Wire
- Temperature Rating: -40 to 225 °F
- Series: Powertite ADR
- Grounding Style: Style 1, Shell
Additional Information
Industrial duty; interlocked/with-switch options
Specifications
- Part Number: ADR6033
- Manufacturer : Appleton
- Brand : Appleton
- Category : Wiring Devices
- Item Subcategory : Pin-and-sleeve plug/receptacle system
- Family : ADR
- Voltage : 600/250 /DC
Product Data
- UPC : 781381186414
- GTIN : 00781381186414
- Weight : 4 lb
