Product Info
- Manufacturer:Appleton
- Sub-Category:Pin-and-sleeve plug/receptacle system
Description
ADR3034RS

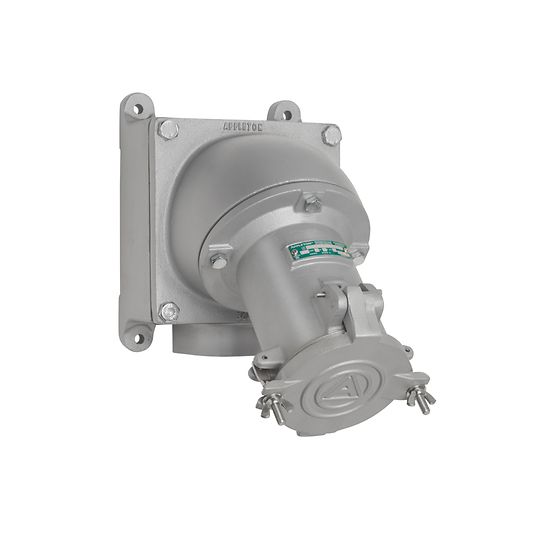

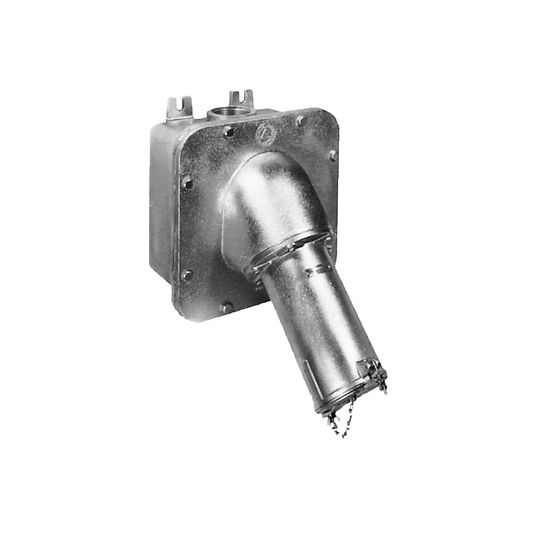

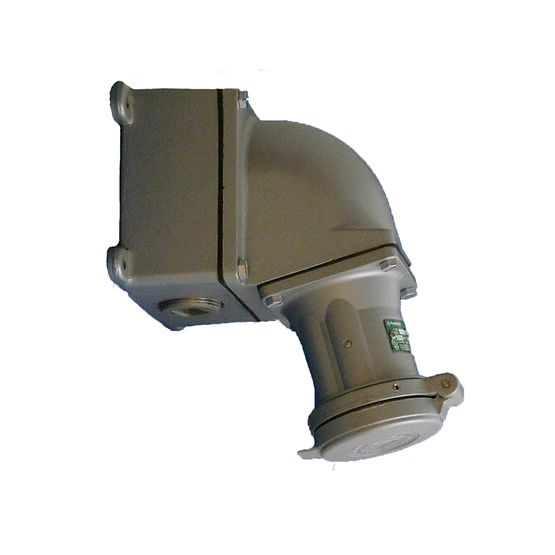

ADR3034RS is a 30 amp, 600 volt Powertite pin and sleeve receptacle from Appleton designed for industrial wiring applications.This 4-pole, 3-wire grounding style 2 receptacle features a pressure wire terminal and is constructed from copper-free aluminum with epoxy powder coating for durability. It supports 50/400 Hz frequency, 20 hp motor rating, and is rated for use in harsh environments with NEMA 3/3R/4/4X protection. The device operates reliably in temperatures from -40 to 225 degrees Fahrenheit and is UL and CSA certified.
- Amperage: 30A
- Voltage: 600 VAC / 250 VDC
- Number of Poles: 4
- Number of Wires: 3
- Mounting Type: Surface Mount
- Interrupt Rating: Suitable for motor loads up to 20 hp
- Series: Powertite ADR
- Terminal Type: Pressure Wire
- Material: Copper-Free Aluminum with epoxy powder coating
- Temperature Rating: -40 to 225 °F
- NEMA Rating: 3/3R/4/4X
- Certifications: UL 1682/1686/50E, CSA C22.2
Additional Information
Industrial duty; interlocked/with-switch options
Specifications
- Part Number: ADR3034RS
- Manufacturer : Appleton
- Brand : Appleton
- Category : Wiring Devices
- Item Subcategory : Pin-and-sleeve plug/receptacle system
- Family : ADR
- Voltage : 600/250 600/250 /DC
Product Data
- UPC : 781381710435
- GTIN : 00781381186360
- Dimensions : 2.8 in H x 3.38 in W
- Weight : 2 lb
