Product Info
- Manufacturer:Appleton
- Sub-Category:Pin-and-sleeve plug/receptacle system
Description
ADR20034

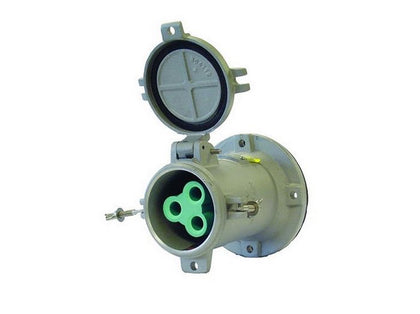

ADR20034 is a Powertite 200A 4-pole, 3-wire grounding style 2 receptacle designed for industrial power distribution applications. This receptacle features epoxy powder coated copper-free aluminum construction for durability and corrosion resistance, and is rated for 600 VAC and 250 VDC. It is suitable for use with Powertite plugs and connectors, providing secure and reliable connections in demanding environments. Engineered for high performance, the ADR20034 offers a wide wire size range, positive polarization, and a robust mounting design. It is UL Listed, CSA Certified, and meets NEMA 4X and FB11 standards for safety and reliability. The receptacle is designed for use in both indoor and outdoor applications, with a wide operating temperature range.
- Part Number: ADR20034
- Manufacturer: Appleton
- Series: Powertite
- Amperage: 200A
- Voltage: 600 VAC / 250 VDC
- Poles: 4
- Wires: 3
- Mounting Type: Style 2
- Interrupt Rating: Not Disconnect Under Load
- Material: Epoxy Powder Coated Copper-Free Aluminum
- Wire Size: 2/0 AWG - 250 MCM
- Certifications: UL Listed, CSA Certified, NEMA 4X, NEMA FB11
Additional Information
Industrial duty; interlocked/with-switch options
Specifications
- Part Number: ADR20034
- Manufacturer : Appleton
- Brand : Appleton
- Item Subcategory : Pin-and-sleeve plug/receptacle system
- Amperage : 200A
Product Data
- UPC : 78138161266
- GTIN : 00781381612661
- Weight : 7.56
