Product Info
- Manufacturer:Appleton
- Sub-Category:Pin-and-sleeve plug/receptacle system
Description
ADR15034

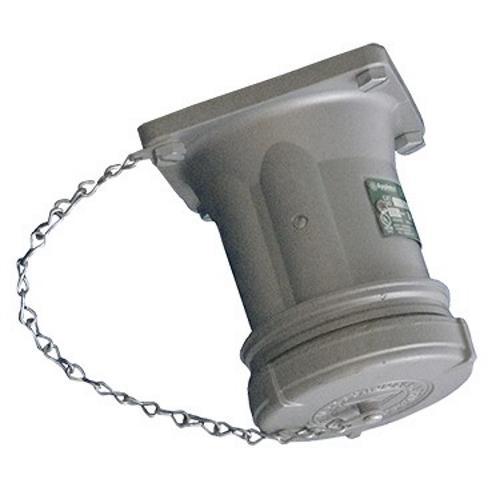

ADR15034 is an Appleton Powertite 150 amp, 600 volt, 4-pole, 3-wire pin and sleeve receptacle designed for robust industrial power connections.This receptacle features a grounding Style 2 design with a pressure wire terminal type, suitable for 50/400 Hz frequency operation. It is constructed from copper-free aluminum and rated for NEMA 3/3R/4/4X environments, supporting temperature ranges from -40 to 225 degrees Fahrenheit. The device is UL and CSA certified, ensuring compliance with industry safety standards.
- Amperage: 150 A
- Voltage: 600 VAC / 250 VDC
- Number of Poles: 4
- Number of Wires: 3
- Frequency: 50-400 Hz
- Mounting Type: Box Mount
- Terminal Type: Pressure Wire
- Material: Copper-Free Aluminum
- NEMA Rating: 3/3R/4/4X
- Temperature Range: -40 to 225 °F
- Certifications: UL Listed, CSA Certified
- Series: Powertite ADR
Additional Information
Industrial duty; interlocked/with-switch options
Specifications
- Part Number: ADR15034
- Manufacturer : Appleton
- Brand : Appleton
- Category : Wiring Devices
- Item Subcategory : Pin-and-sleeve plug/receptacle system
- Family : ADR
- Voltage : 600/250 /DC
- Amperage : 150A
Product Data
- UPC : 78138114996
- GTIN : 781381149969
- Weight : 5 lb
