Product Info
- Manufacturer:Appleton
- Sub-Category:Pin-and-sleeve plug/receptacle system
Description
ADR1044RS

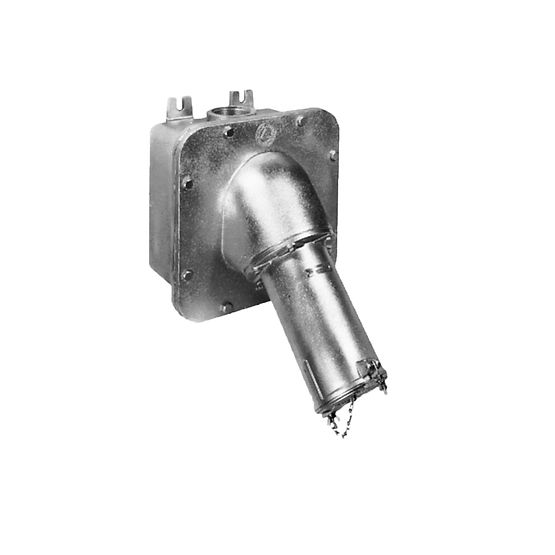

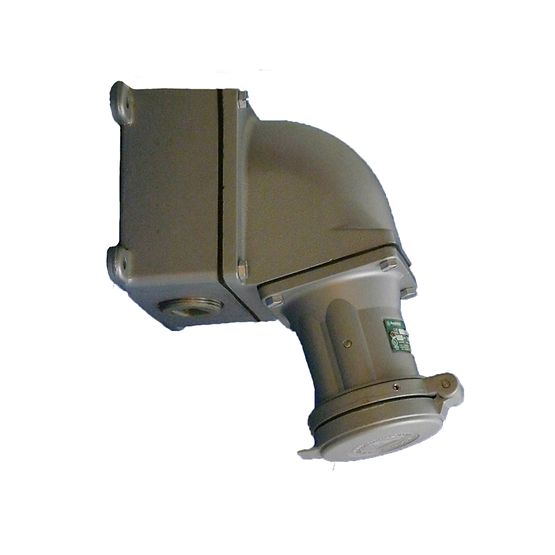

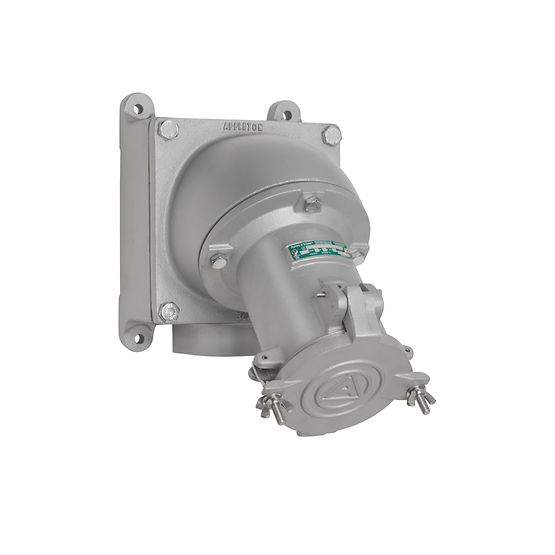

ADR1044RS is a heavy-duty Appleton pin and sleeve receptacle designed for demanding industrial power distribution applications.
This 4-pole, 4-wire receptacle features reverse service, a spring-loaded door, and is constructed from epoxy powder-coated, copper-free aluminum for durability and corrosion resistance. It is part of the Appleton Powertite series, offering reliable performance in harsh environments and is approved to UL 1682, UL 1686, UL 50E, and CSA C22.2 standards.
Key Specifications
- Amperage: 100A
- Voltage: 600VAC, 250VDC
- Poles: 4
- Wires: 4
- Mounting Type: Panel or surface mount (exact type not specified in sources)
- Interrupt Rating: Not specified in sources
- Series/Frame: Powertite
- Trip Unit: Not applicable (receptacle, not a circuit breaker)
- Certifications: UL 1682, UL 1686, UL 50E, CSA C22.2
- Wire Size: 4-1 AWG building wire, 4-2 AWG extra flex
- Material: Copper-free aluminum, epoxy powder coated
- Frequency Rating: 50/400 Hz
- Dimensions: 5.1 in H x 4.25 in W
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
Industrial duty; interlocked/with-switch options
Specifications
- Part Number: ADR1044RS
- Manufacturer : Appleton
- Brand : Appleton
- Category : Wiring Devices
- Item Subcategory : Pin-and-sleeve plug/receptacle system
- Family : ADR
- Voltage : 600/250 600/250 /DC
Product Data
- UPC : 781381711395
- GTIN : 00781381711395
- Dimensions : 5.1 in H x 4.25 in W
- Weight : 5 lb
