Product Info
- Manufacturer:Appleton
- Sub-Category:Industrial accessory
Description
ACP6033BC

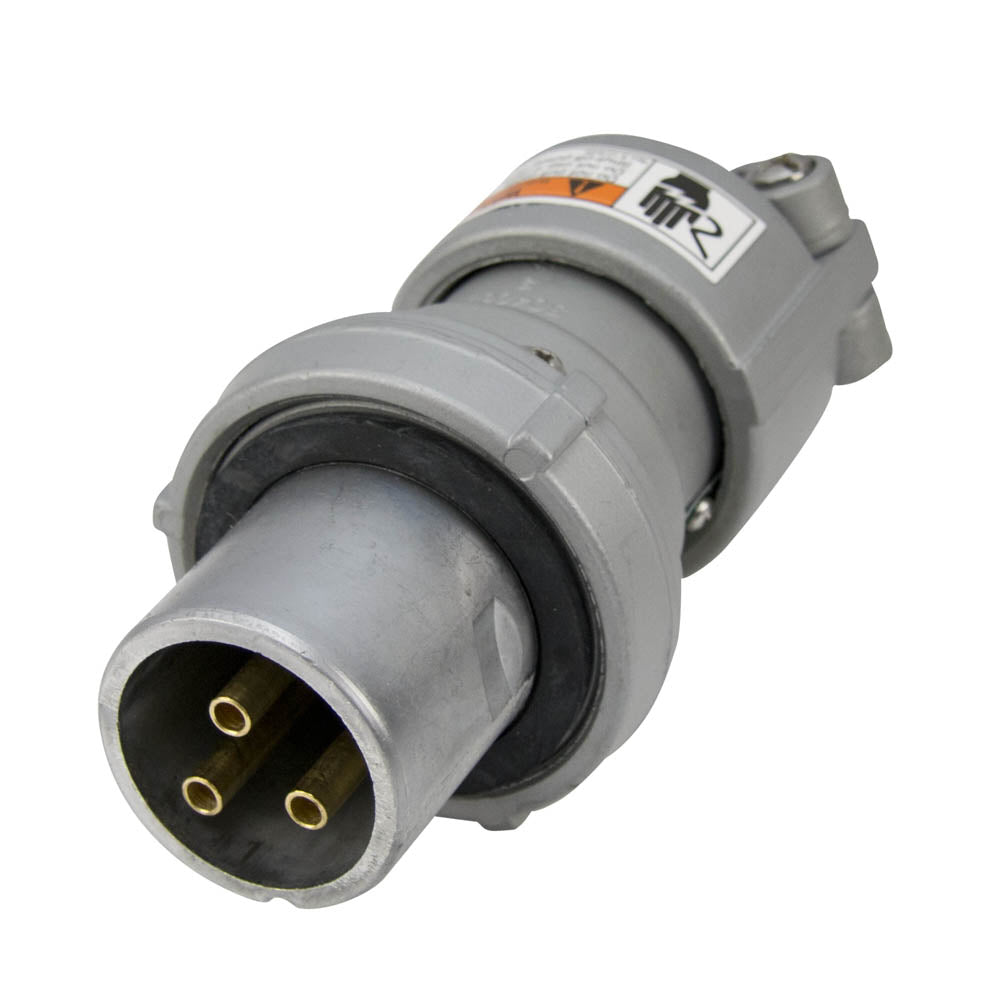

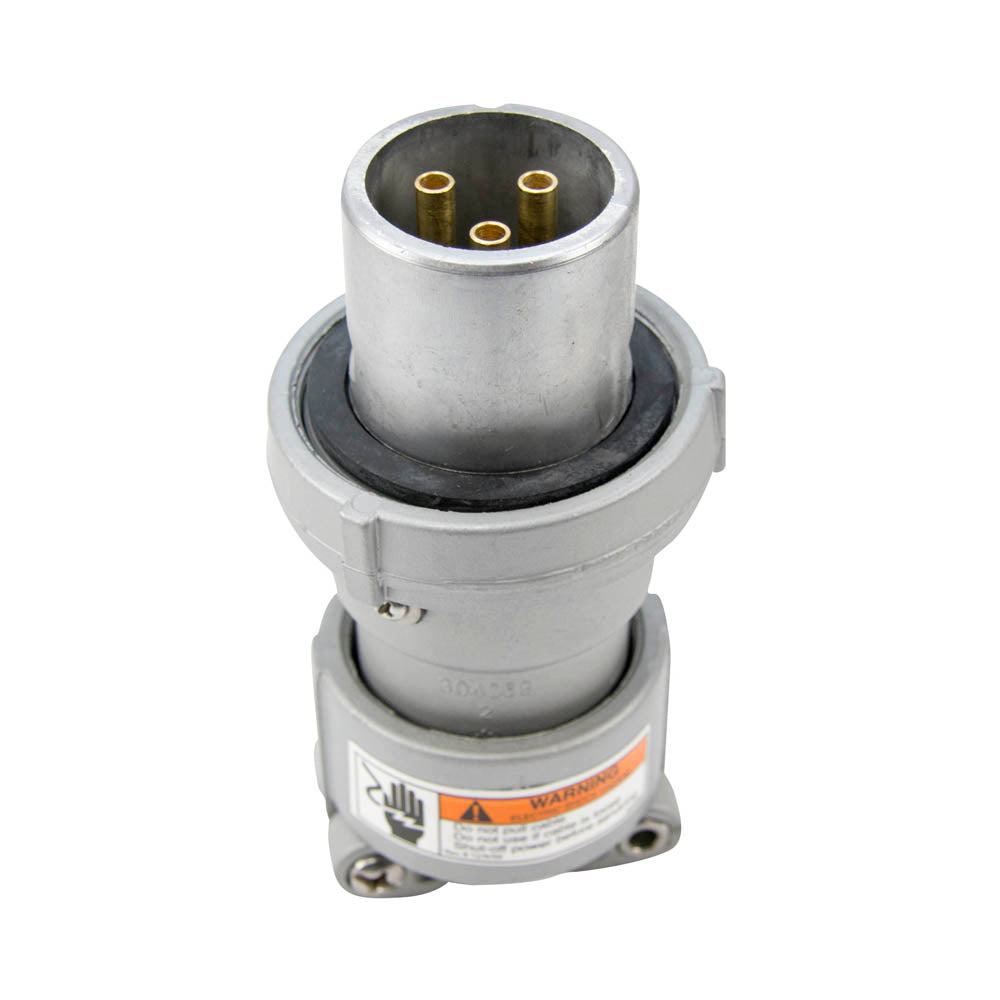

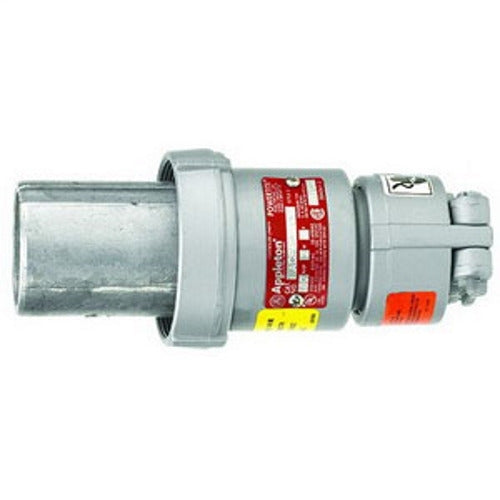

ACP6033BC is a 60 amp, 600 volt, 3-pole, 3-wire Powertite pin and sleeve plug assembly from Appleton designed for heavy-duty power connections.ACP6033BC features a clamping ring grounding style 1 metallic construction with triple-coated, copper-free aluminum for corrosion resistance and durability in harsh environments. It supports 50 to 400 Hz frequency and operates in temperatures from -40 to 107 degrees Celsius. The plug includes widely spaced recessed contacts within an arc snuffing chamber, positive polarization, and a neoprene bushing for water and dust sealing. It is suitable for NEMA 3/3R/4/4X rated applications and designed for easy installation in standard and hazardous locations.
- Key Specifications
- Amperage: 60 Amps
- Voltage: 600 VAC / 250 VDC
- Poles: 3
- Wires: 3
- Mounting Type: Clamping Ring
- Frequency: 50 to 400 Hertz
- Material: Triple-coated copper-free aluminum
- Temperature Rating: -40 to 107 °C
- Grounding Style: Powertite Style 1
- Enclosure Rating: NEMA 3/3R/4/4X
- Category: Pin and Sleeve Plug
Additional Information
Appleton accessory component
Specifications
- Part Number: ACP6033BC
- Manufacturer : Appleton
- Brand : Appleton
- Item Subcategory : Industrial accessory
Product Data
- UPC : 781381440219
- GTIN : 00781381440219
- Weight : 3 lb
