ACP3044BC - Appleton 30A 600VAC/250VDC 4-Pole Pin & Sleeve Clamping Ring Plug, Powertite Series, NEMA 3/3R/4/4X, Style 1 Grounding

ACP3044BC

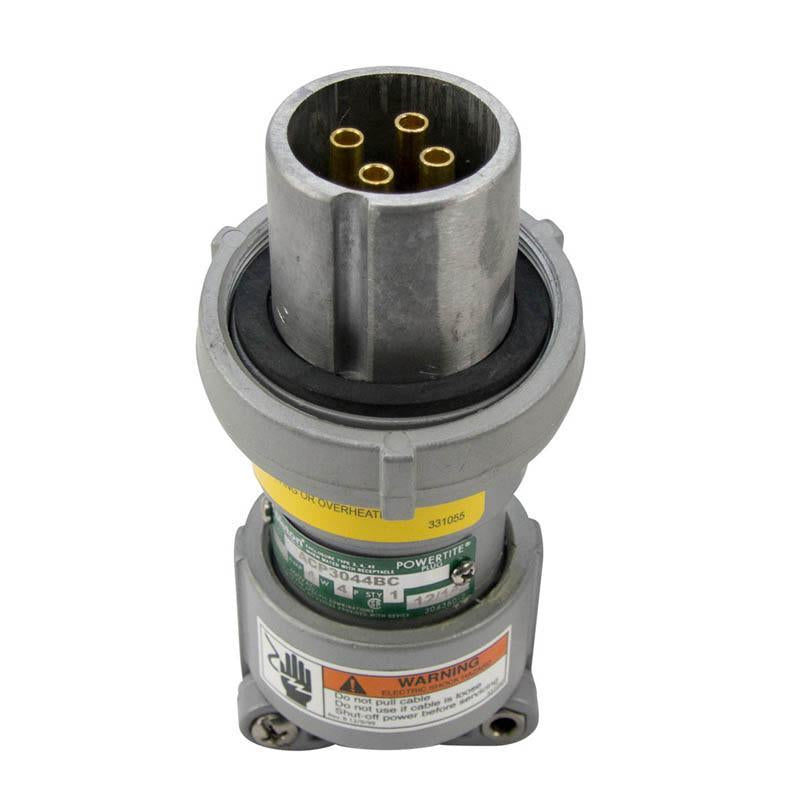

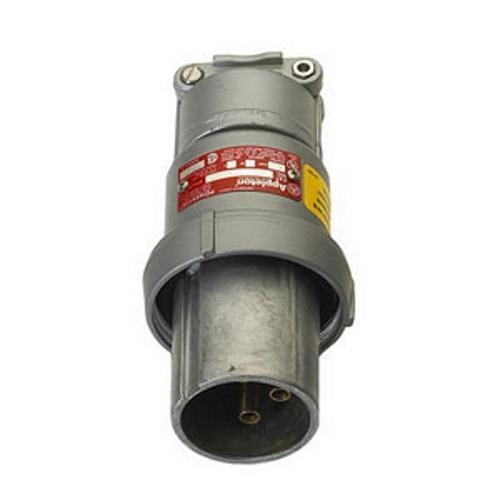

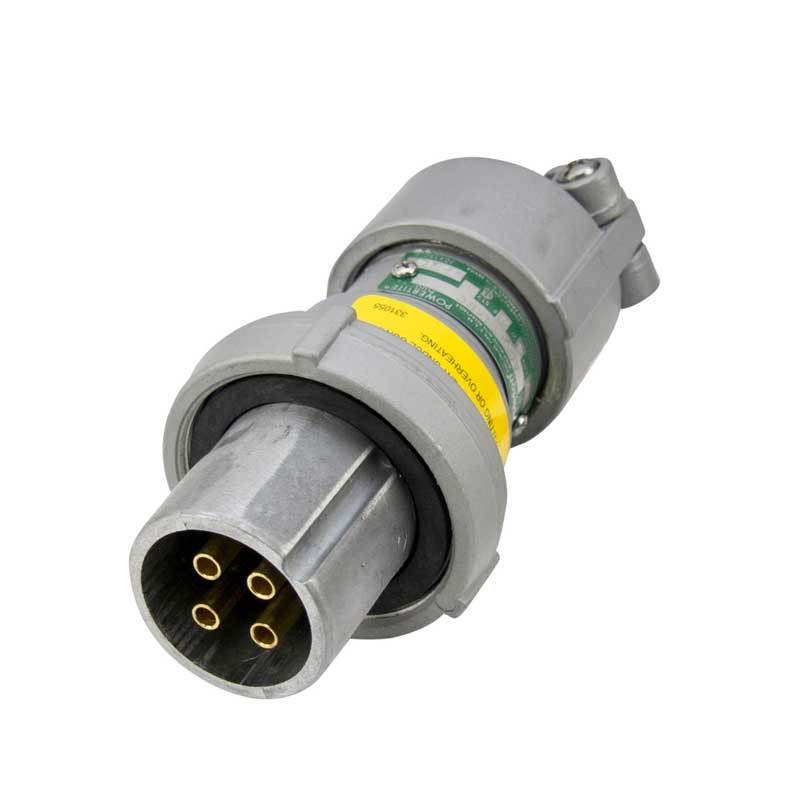

ACP3044BC is a heavy-duty Appleton Powertite Series pin and sleeve clamping ring plug designed for reliable power distribution in demanding environments.

This 3-phase grounding style 1 plug features a robust, triple-coated copper-free aluminum shell for superior corrosion resistance and durability. It is engineered for easy installation and safe operation, with widely spaced contacts recessed in an internal arc snuffing chamber, insulating blocks, positive polarization, and a neoprene bushing for water and dust protection. Ideal for fixed or portable heavy-duty equipment in standard and hazardous locations.

Key Specifications
• Amperage: 30A
• Voltage: 250/600V AC/DC
• Poles: 4
• Wires: 4
• Mounting Type: Clamping ring
• Wire Size: 10–6 AWG (building), 10–8 AWG (extra flex)
• Series/Frame: Powertite Series, ACP
• Interrupt Rating: Not specified
• Trip Unit: Not applicable
• Certifications: NEMA 3, 3R, 4, 4X
• Grounding Style: Style 1
• Minimum Operating Temperature: -25°C
• Frequency Rating: 50/400 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Appleton accessory component

Specifications

• Part Number: ACP3044BC
• Manufacturer : Appleton
• Brand : Appleton
• Category : Wiring Devices
• Item Subcategory : Industrial accessory
• Family : ACP
• Voltage : 250/600 250/600 /DC

Product Data

• UPC : 781381440431
• GTIN : 00781381440431
• Country of Origin : Mexico
• Dimensions : 6 in L x 3.13 in W
• Weight : 1.92 lb
• Certification : CSA Certified 065179, CSA Certified C22.2 No. 182.1-13, cULus E145917 (200 Amp), UL 1682, UL 50E, UL E145916, UL E145917
