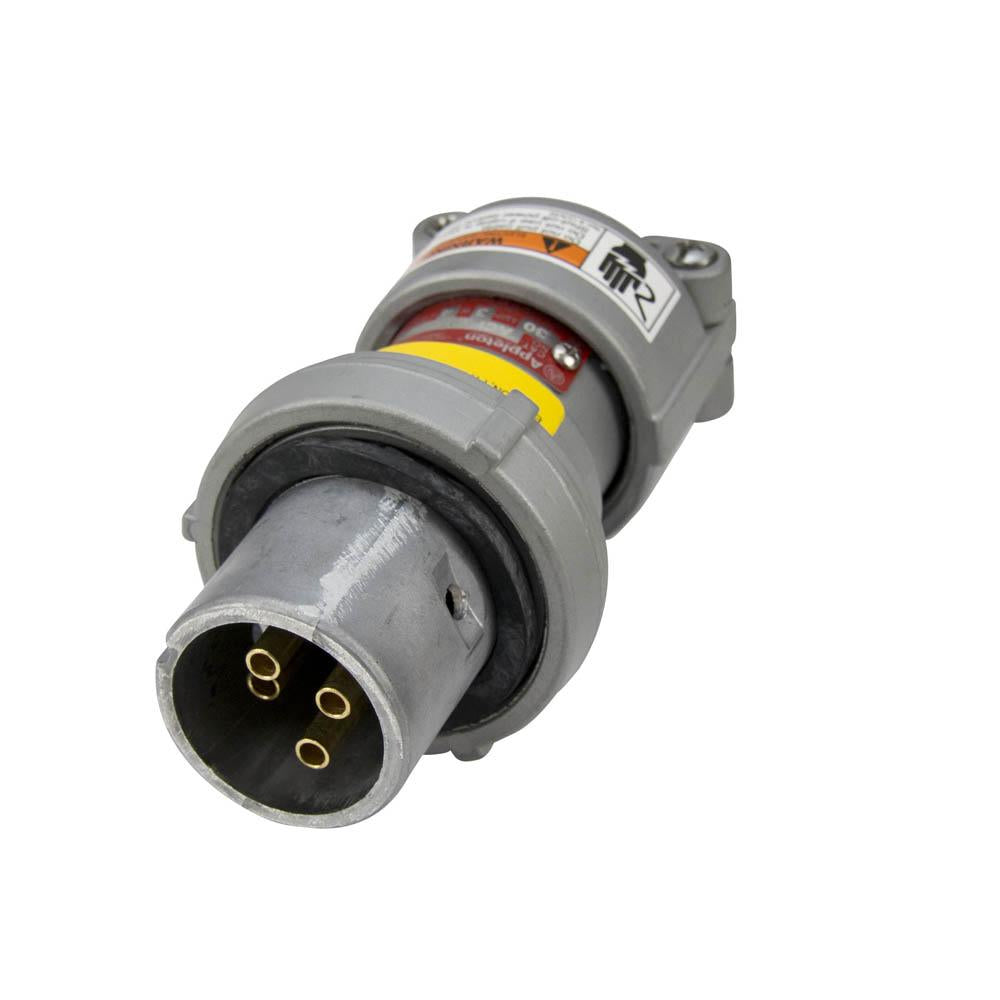

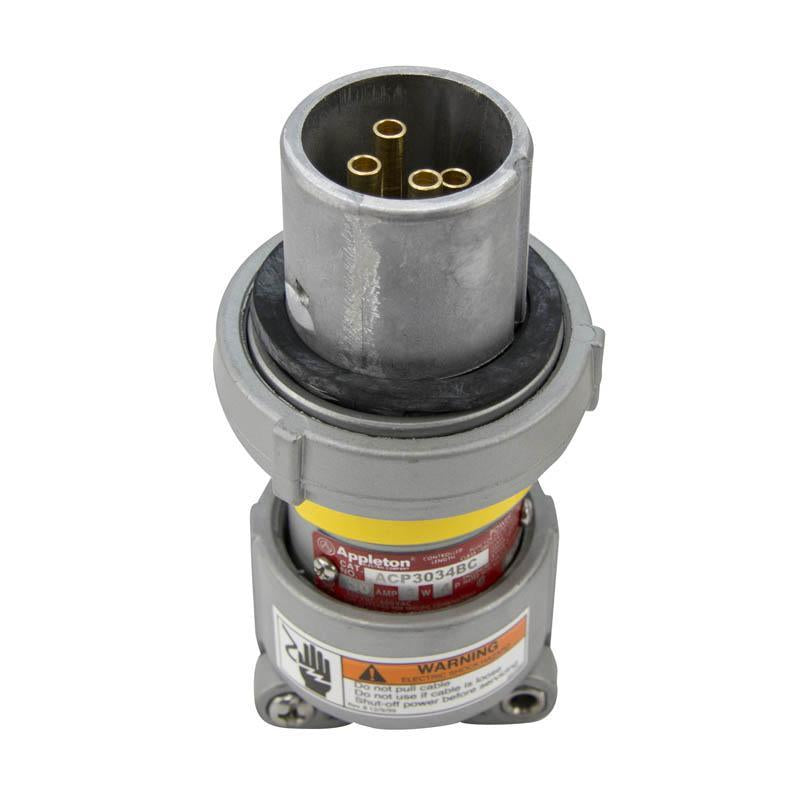

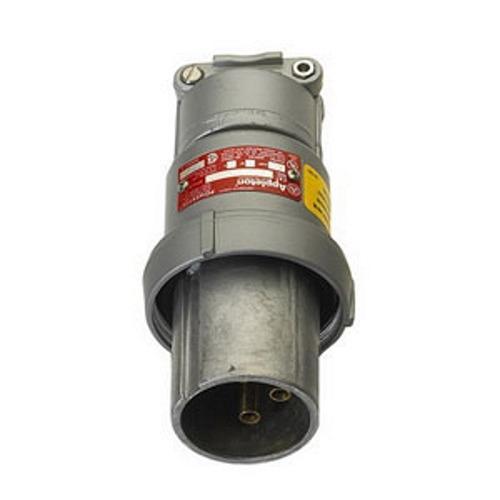

ACP3034BC - Appleton Powertite 30A 600VAC 4-Pole 3-Wire Clamping Ring Male Plug

ACP3034BC

ACP3034BC is a 30 amp, 600 VAC, 4-pole, 3-wire clamping ring male plug from Appleton's Powertite series designed for reliable power connections.ACP3034BC features a grounding style 2 metallic design made of copper-free aluminum with epoxy powder coating for durability and corrosion resistance. It supports 600 VAC at 50-400 Hz and 250 VDC, suitable for harsh environments with a temperature rating from -40 to 107 °C. This plug is compatible with ADR3034 receptacles and ARC3034BC connector bodies and meets UL and CSA certifications including UL 1682, 1686, 50E, and CSA C22.2 No. 182.1 standards.

Key Specifications
• Amperage: 30 A
• Voltage Rating: 600 VAC (50-400 Hz), 250 VDC
• Number of Poles: 4
• Number of Wires: 3
• Material: Copper-free aluminum with epoxy powder coating
• Grounding Style: Style 2 metallic
• Temperature Rating: -40 to 107 °C
• Compatible with ADR3034 receptacle and ARC3034BC connector body
• Certifications: UL 1682, 1686, 50E, CSA C22.2 No. 182.1
• NEMA Ratings: 3, 3R, 4, 4X
• Conductor Size: 10-6 AWG building wire, 10-8 AWG extra flex

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Appleton accessory component

Specifications

• Part Number: ACP3034BC
• Manufacturer : Appleton
• Brand : Appleton
• Category : Conduit & Fittings
• Item Subcategory : Industrial accessory
• Voltage : 600 AC

Product Data

• UPC : 781381440424
• GTIN : 03606486288368
• Country of Origin : Mexico
• Dimensions : Depth 9.40 in (238.8 mm) Width 11.70 in (297.2 mm) Height 22.67 in (575.8 mm)
• Weight : 1.58
• Certification : CSA Certified 025875, CSA Certified C22.2 No. 159, CSA Certified C22.2 No. 25, CSA Certified C22.2 No. 30, UL 1010 (UL 1203), UL 1682, UL 894, UL E10784
