Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

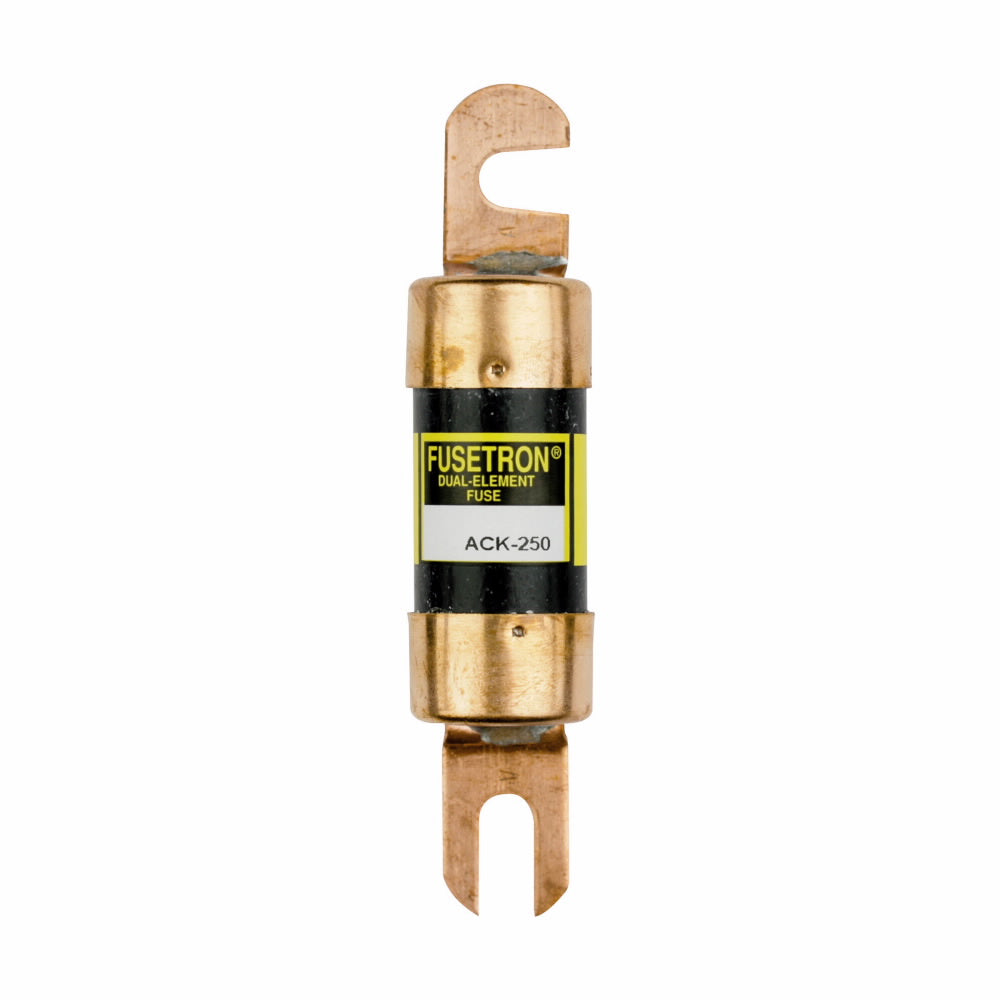

ACK-250
ACK-250 is a Bussmann series ACK time-delay stud-mounted fuse designed for DC circuit protection in lift trucks and battery chargers.Engineered for reliable performance, the ACK-250 fuse features a dual-element construction, copper terminals, and a stud mounting style for secure installation. This non-indicating fuse is rated for 250A at 48VDC and provides time-delay protection for demanding applications.
- Amperage Rating: 250A
- Voltage Rating: 48VDC
- Mounting Type: Stud
- Interrupt Rating: 100 sec at 200%, 35 sec at 300%, 13 sec at 500%
- Series/Frame: Bussmann ACK
- Element Type: Dual
- Indicator: Non-indicating
- Terminal Material: Copper
- Termination Style: Bolt Down
- Application: Lift Trucks, Battery Chargers
- Special Features: Time-Delay, Slow Blow
- Compliance: UL Listed
Specifications
- Part Number: ACK-250
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : ACK Series
- Type : ACK
- Voltage : 125
- AIC rating : 10kA@125Vac
- Diameter : 1
- Barrels : 1
Product Data
- UPC : 051712701464
- GTIN : 00051712701464
- Country of Origin : Mexico
- Dimensions : 3.87 in x 1.063 in x 1.063 in (Length/Depth x Height x Width)
- Weight : 0.288
