AC424R General Electric Armor-Clad Switch-Operated Fusible Bus Plug, 200 A, 240 V

SKU: AC424R-New
Condition: New
Price:
$6,071.43
Stock:
Low inventory, please call (866) 790-5296 for stock check

💡 ABB / GE Branding Notice

On June 30, 2018, ABB completed the acquisition of GE Industrial Solutions.

As a result of this transition, certain products may be labeled as either ABB or GE depending on the manufacturing date and production batch. In many cases, the product itself remains identical in form, fit, function, and specifications, with only the branding or label differing.

Customers may receive:

  • ABB-branded products
  • GE-branded products
  • Packaging reflecting either brand

Unless otherwise stated, these are considered the same product and are fully interchangeable under the applicable manufacturer specifications.

If you have questions regarding labeling, compatibility, or product identification, please contact our support team prior to ordering.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

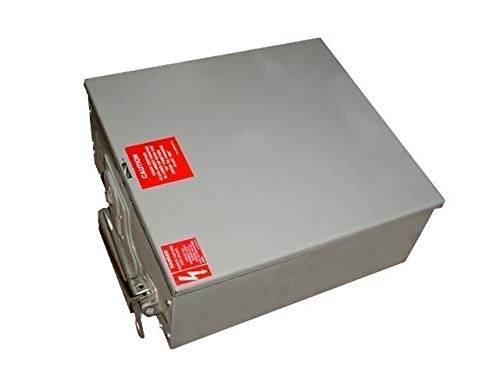

General Electric AC424R 200 Amp Fusible Bus Plug - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
General Electric AC424R 200 Amp Fusible Bus Plug - Essential Electric Supply

Description

AC424R


AC424R General Electric Armor-Clad Switch-Operated Fusible Bus Plug, 200 A, 240 V

AC424R is a General Electric Armor-Clad switch-operated fusible bus plug for 3-phase, 4-wire, 240 V service at 200 A. The catalog-number chain identifies a QMR switch, no ground stab, and Class H fuse clips.

The indoor configuration includes standard plug assist. Manufacturer tables give a 46 lb product weight and standard-gutter dimensions of 16 in wide x 18.75 in long x 8.75 in deep.

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Common Applications

  • Fusible plug-in service on an Armor-Clad busway system with the documented electrical configuration

Key Features

  • Switch: QMR
  • Fuse clips: Class H
  • Ground stab: None
  • Plug assist: Standard at 200 A
  • Environment: Indoor configuration without I or Z gasketing suffix

Specifications

  • Current rating: 200 A
  • Voltage rating: 240 V AC
  • Service: 3 phase, 4 wire
  • Product dimensions: 16 in wide x 18.75 in long x 8.75 in deep
  • Product weight: 46 lb

Product Identification

  • Catalog number: AC424R
  • Manufacturer: General Electric
  • Product family: Armor-Clad
  • Product type: Switch-operated fusible bus plug

FAQ

What is AC424R?

It is a 200 A, 240 V General Electric Armor-Clad fusible bus plug for 3-phase, 4-wire service.

Which switch and fuse clips does AC424R use?

The manufacturer suffix key identifies a QMR switch and Class H fuse clips.

Does AC424R include a ground stab?

No. The exact catalog number omits the G code that identifies a ground stab.

Is a replacement documented for AC424R?

No official manufacturer replacement recommendation was confirmed for this exact part.


Specifications

  • Part Number: AC424R
  • Manufacturer : General Electric
  • Brand : General Electric
  • Category : Bus Plug
  • Item Subcategory : Fusible
  • Family : Armor Clad
  • Type : AC
  • Voltage : 240
  • Amperage : 200
  • Phase : 3
  • AIC rating : 200kA@240V
  • Fuse Class : H, R
  • Wire : 4

Product Data

  • Dimensions : 16 in wide x 18.75 in long x 8.75 in deep
  • Weight : 46 lb
