2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
Description
ABC5R

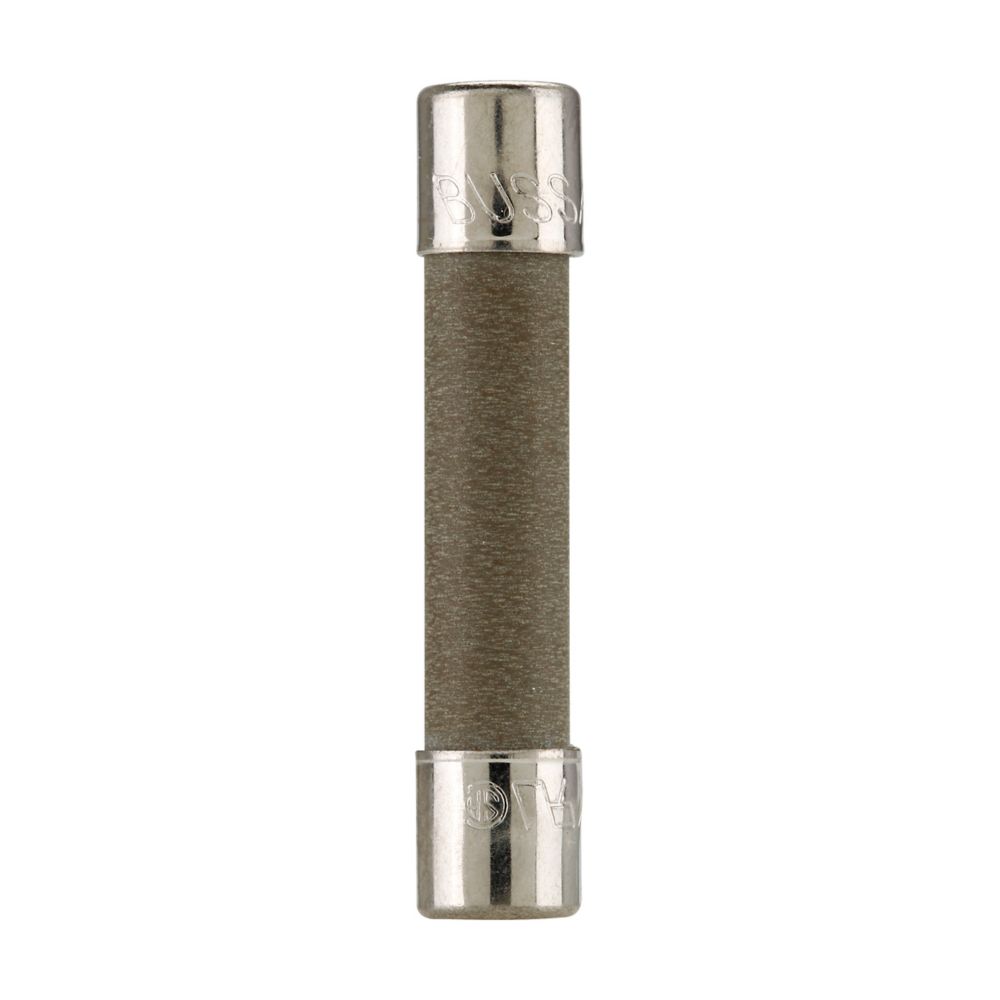

ABC5R is a 5 amp, 250 VAC fast-acting ceramic fuse from Eaton's ABC series designed for reliable circuit protection.This fuse features a 1/4 inch by 1-1/4 inch (6.3 mm x 32 mm) 3AG size ceramic tube construction with nickel-plated brass endcaps. It is rated for 5 amps at 250 VAC and 125 VDC with a fast blow characteristic, suitable for protecting sensitive electronic equipment. The fuse is UL Listed, CSA Certified, and meets Eaton's high standards for interrupting ratings and durability.
- Key Specifications
- Current Rating: 5 Amps
- Voltage Rating: 250 VAC, 125 VDC
- Fuse Type: Fast-Acting (Fast Blow)
- Physical Size: 1/4 x 1-1/4 inch (3AG, 6.3 mm x 32 mm)
- Construction: Ceramic tube with nickel-plated brass endcaps
- Interrupt Rating: 10,000 A
- Certifications: UL Listed, CSA Certified
- Mounting Type: Ferrule end x ferrule end
- Series: Eaton ABC Series
Specifications
- Part Number: ABC5R
- Manufacturer : Eaton
- Brand : Eaton
- Category : Fuse
Product Data
- UPC : 051712646284
- GTIN : 00051712646284
- Dimensions : Diameter .25 inches X Length 1.25 inches
- Weight : 0.01 lb
