Product Info
- Manufacturer:Eaton
Description
ABC12

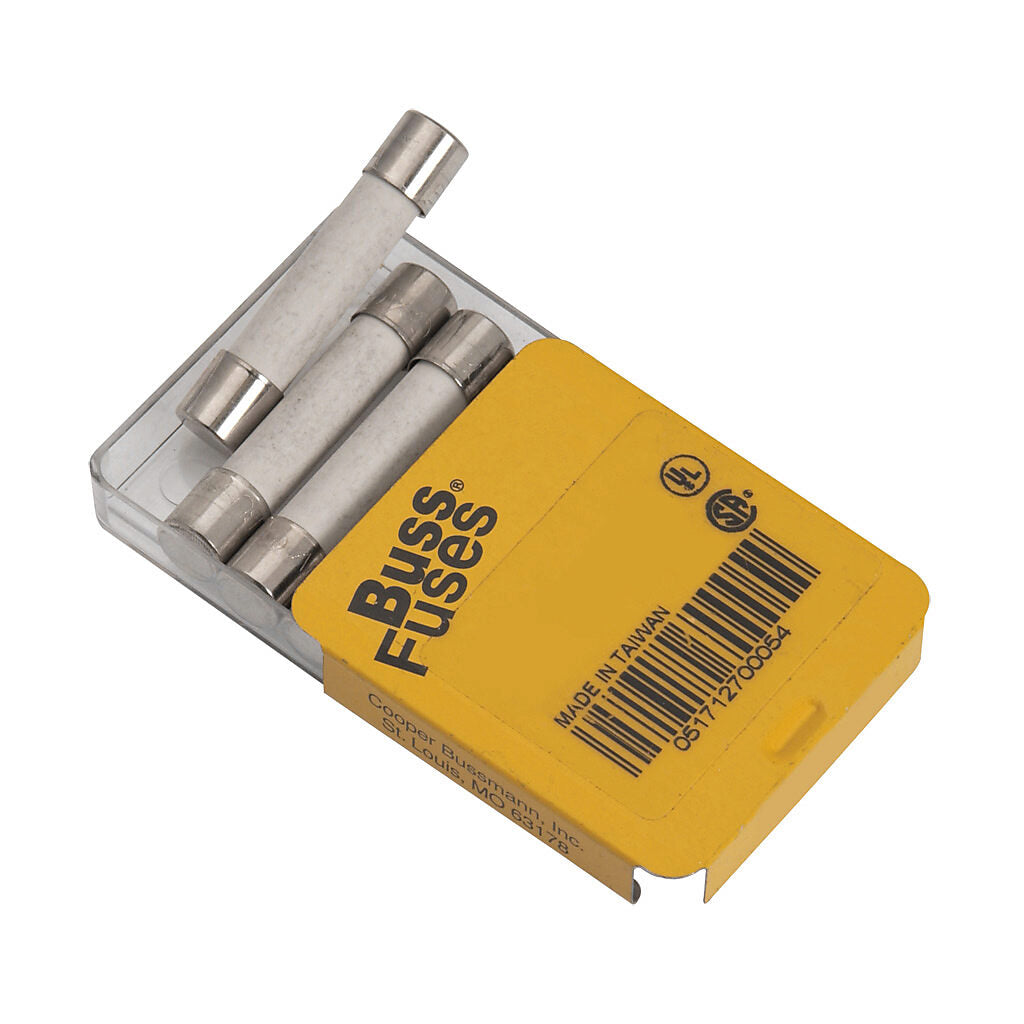

ABC-12-R is a 12 amp, 250 volt fast-acting ceramic tube fuse from Eaton's Bussmann series designed for electronic circuit protection.This fuse features a ceramic tube construction with nickel-plated brass endcaps, providing reliable fast-acting protection for electronic applications. It has a voltage rating of 250 Vac, 125 Vdc, and 32 Vac (self certified) and an interrupt rating of 750 AIC at 250 Vac and 10 kAIC at 125 Vac/dc. The fuse has a typical pre-arc melting I2T of 133.3 and a DC cold resistance of 0.0068 ohms. It is CE marked and RoHS compliant.
- Amperage Rating: 12 A
- Voltage Rating: 250 Vac, 125 Vdc, 32 Vac (self certified)
- Interrupt Rating: 750 AIC at 250 Vac, 10 kAIC at 125 Vac/dc
- Type: Fast-acting ceramic tube fuse
- Material: Ceramic tube with nickel-plated brass endcaps
- Fuse Indicator: Non-indicating
- Connection: Ferrule end x ferrule end
- Response Time: 4 hr at 100%, 60 min at 135%, 120 sec at 200%
- Compliance: CE Marked, RoHS Compliant
- Product Dimensions: 32 mm length, 6.4 mm diameter
Specifications
- Part Number: ABC12
- Manufacturer : Eaton
- Brand : Bussmann
Product Data
- UPC : 051712700122
- GTIN : 00051712700122
- Weight : 0.13 lb
