Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
ABC-9

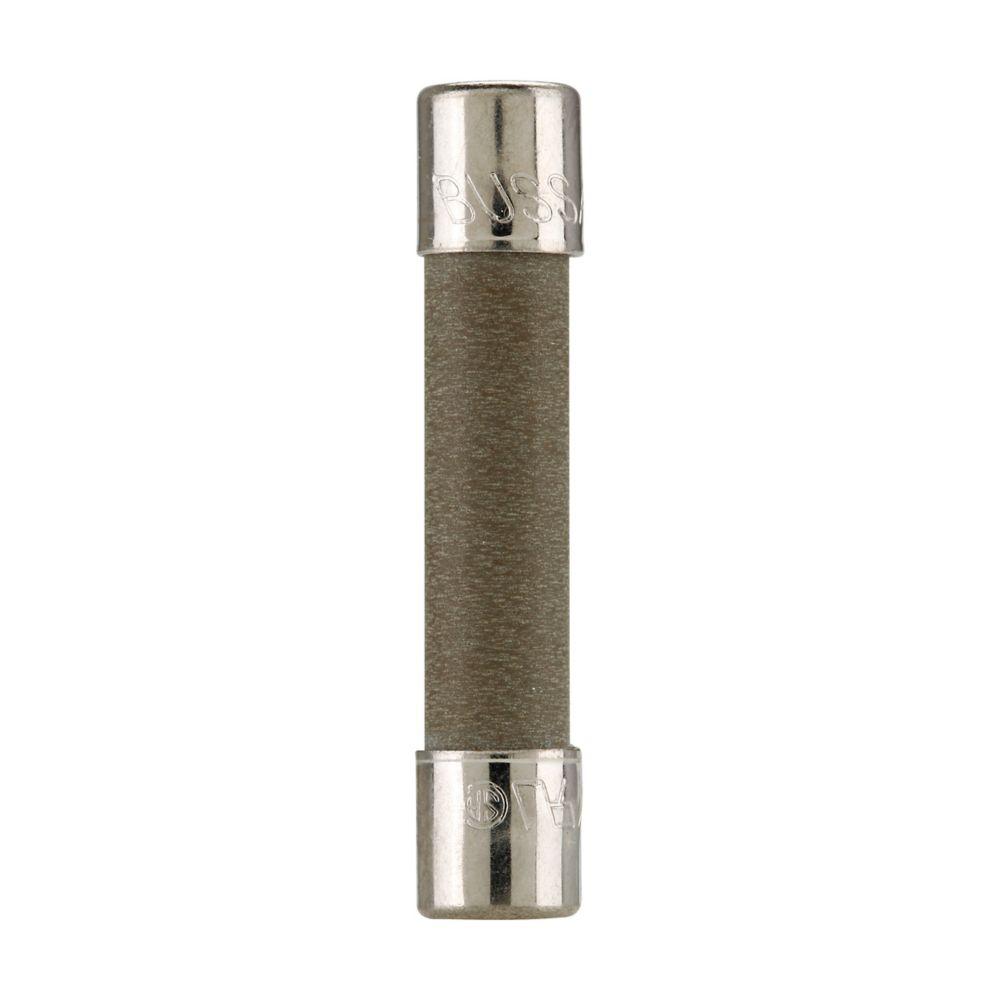

ABC-9 is a fast-acting ceramic tube fuse from Eaton, designed for reliable circuit protection in a wide range of electrical applications. This fuse features a 9A current rating and a 250V AC voltage rating, making it suitable for use in low-voltage circuits where dependable overcurrent protection is required. The ABC-9 is constructed with a ceramic tube and nickel-plated brass end caps for durability and consistent performance. The ABC-9 is part of Eaton's ABC series, known for its fast-acting response and robust interrupting capacity. It is UL listed and CSA certified, meeting industry standards for safety and reliability. The fuse is available in a standard 3AG (6.3mm x 32mm) size, making it compatible with a variety of fuse holders and panels. Optional axial leads are available for specific mounting requirements.
- Part Number: ABC-9
- Manufacturer: Eaton
- Series: ABC
- Amperage Rating: 9A
- Voltage Rating: 250V AC, 125V DC
- Interrupt Rating: 200AIC at 250V AC, 10kAIC at 125V AC/DC
- Fuse Type: Fast-Acting Ceramic Tube
- Physical Size: 1/4" x 1 1/4" (6.3mm x 32mm)
- Mounting Type: Ferrule
- Certifications: UL Listed, CSA Certified
- Agency Approvals: UL 248-14, CSA Class 1422-01 & 1422-30
- Construction: Ceramic tube, nickel-plated brass end caps
Specifications
- Part Number: ABC-9
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : ABC
- Type : ABC
- Voltage : 250
- AIC rating : 200A@250Vac
- Connection : Ferrule
- Diameter : 1.25
- Barrels : 1
Product Data
- UPC : 051712700092
- Weight : 1
