ABC-8-R - Eaton Bussmann Series 8A 250VAC Fast-Acting Ceramic Fuse

ABC-8-R

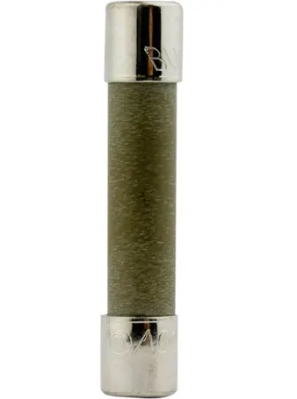

ABC-8-R is an Eaton Bussmann series fast-acting ceramic tube fuse designed for electronic circuit protection with a 8 ampere rating and 250 Vac primary voltage rating. This ferrule-end fuse delivers reliable fast-acting protection in a compact 1/4" x 1 1/4" (6.4 x 31.7 mm) form factor with nickel-plated brass endcaps and ceramic tube construction. The ABC-8-R meets UL Listed standard 248-14 and is CE marked and RoHS compliant for global applications.

• Amperage Rating: 8 A
• Voltage Rating: 250 Vac, 125 Vdc, 32 Vac (self certified)
• Interrupt Rating: 200 AIC at 250 Vac, 10 kAIC at 125 Vac/dc
• Fuse Type: Fast-acting ceramic tube
• Connection: Ferrule end x ferrule end
• Physical Size: 6.4 mm diameter x 31.7 mm length
• Material: Nickel-plated brass endcaps with ceramic tube
• Response Time: 4 hours at 100%, 60 minutes at 135%, 120 seconds at 200%
• Fuse Indicator: Non-indicating
• Certifications: UL Listed, CE Marked, RoHS Compliant
• Application: Electronic circuits
• Packaging: 100 pieces per box

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ABC-8-R
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : ABC
• Voltage : 250
• Amperage : 8
• AIC rating : 200A@250Vac
• Connection : Ferrule
• Diameter : 0.25
• Barrels : 1

Product Data

• UPC : 05171264631
• GTIN : 00051712646314
• Country of Origin : China
• Dimensions : x 1-1/4 in x
• Weight : 0.004715
• Certification : CSA Certification Class 1422-01, UL 248-14 Guide JDYX
