Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
ABC-4-R

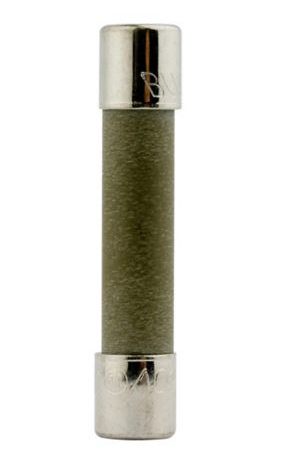

ABC-4-R is a fast-acting ceramic cartridge fuse from the Eaton ABC series, designed for reliable protection in electronic circuits. This fuse features a 4A current rating and a 250VAC voltage rating, making it suitable for a wide range of applications where fast response and high reliability are required. The Eaton ABC-4-R fuse has a ceramic tube construction with nickel-plated brass endcaps, providing durability and high amp/volt rating combinations. It is a non-indicating fuse with ferrule end connections and is rated for 200 AIC at 250 Vac and 10 kAIC at 125 Vac/dc. The fuse is CE marked and RoHS compliant, ensuring it meets international safety and environmental standards.
- 4A Amperage Rating
- 250VAC Voltage Rating
- 125VDC Voltage Rating
- 32VAC (self certified)
- 200 AIC at 250 Vac
- 10 kAIC at 125 Vac/dc
- Fast-acting response
- Ceramic tube construction
- Nickel-plated brass endcaps
- Ferrule end x ferrule end connection
- Non-indicating
- CE Marked
- RoHS Compliant
- Electronic circuit application
Specifications
- Part Number: ABC-4-R
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : ABC
- Voltage : 250
- Amperage : 4
- AIC rating : 200A@250Vac
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- UPC : 05171264627
- GTIN : 00051712646277
- Country of Origin : China
- Dimensions : x 1-1/4 in x
- Weight : 0.004715
- Certification : CSA Certification Class 1422-01, UL 248-14 Guide JDYX
