Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

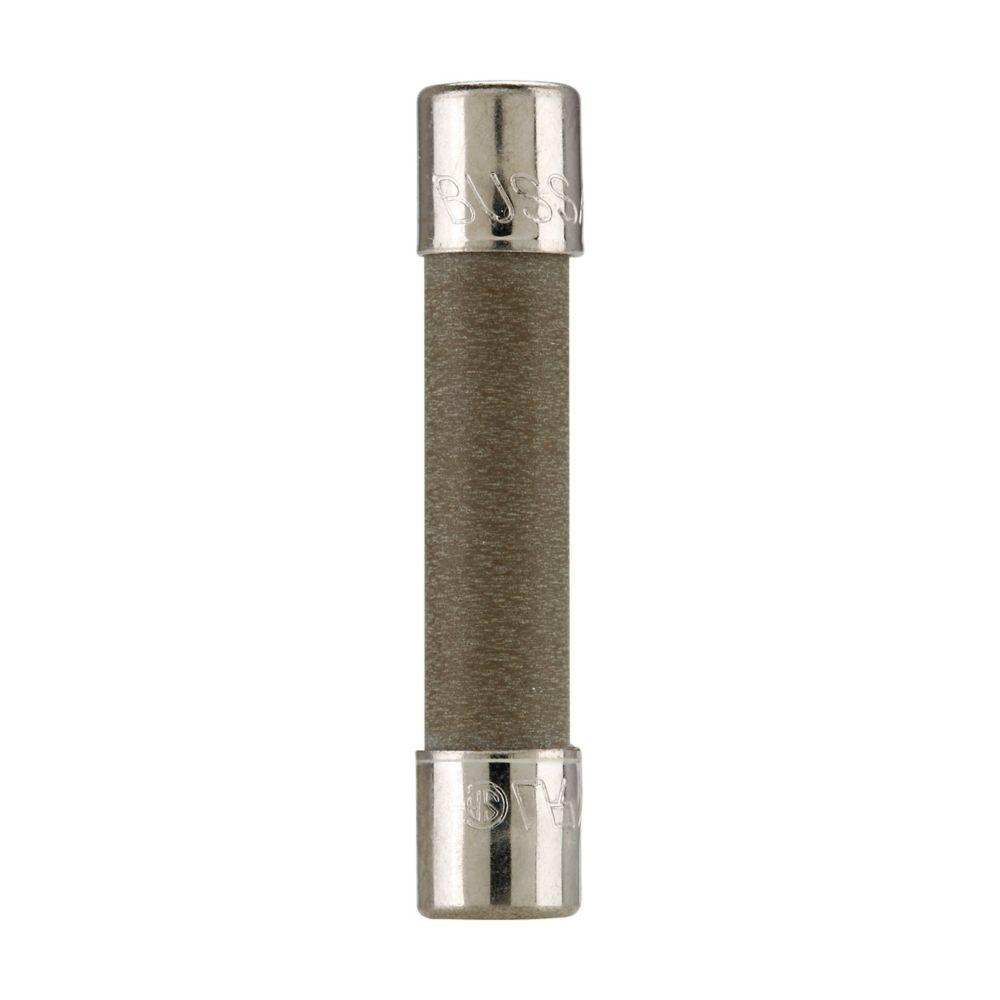

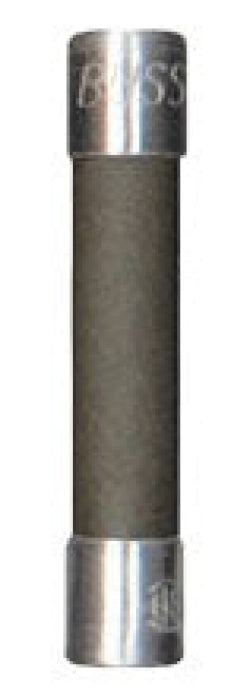

ABC-4
ABC-4 is a fast-acting ceramic fuse from Eaton's ABC series, designed for reliable circuit protection in electronic and industrial applications. This fuse features a 4A current rating, 250VAC/125VDC voltage rating, and a 3AG (6.3mm x 32mm) physical size for standard fuse holders. The ceramic body provides high interrupt capacity and durability, making it suitable for demanding environments. The ABC-4 fuse is UL Listed and CSA Certified, ensuring compliance with safety standards. It offers a fast-acting response to overcurrent events, protecting sensitive equipment from damage. The fuse is constructed with nickel-plated brass endcaps for reliable electrical contact and long-term performance.
- Part Number: ABC-4
- Manufacturer: Eaton
- Series: ABC
- Amperage: 4A
- Voltage Rating: 250VAC / 125VDC
- Fuse Size: 3AG (6.3mm x 32mm)
- Interrupt Rating: 200A at 250VAC, 10kA at 125VAC/VDC
- Mounting Type: Cartridge (Ferrule)
- Agency Approvals: UL Listed, CSA Certified
- Blow Characteristic: Fast-Acting
- Body Material: Ceramic
- Endcap Material: Nickel-Plated Brass
Specifications
- Part Number: ABC-4
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : ABC
- Type : ABC
- Voltage : 250
- Amperage : 4
- AIC rating : 200A@250Vac
- Connection : Ferrule
- Diameter : 1.25
- Barrels : 1
Product Data
- UPC : 051712700047
- Country of Origin : China
- Weight : 1
