Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
ABC-3

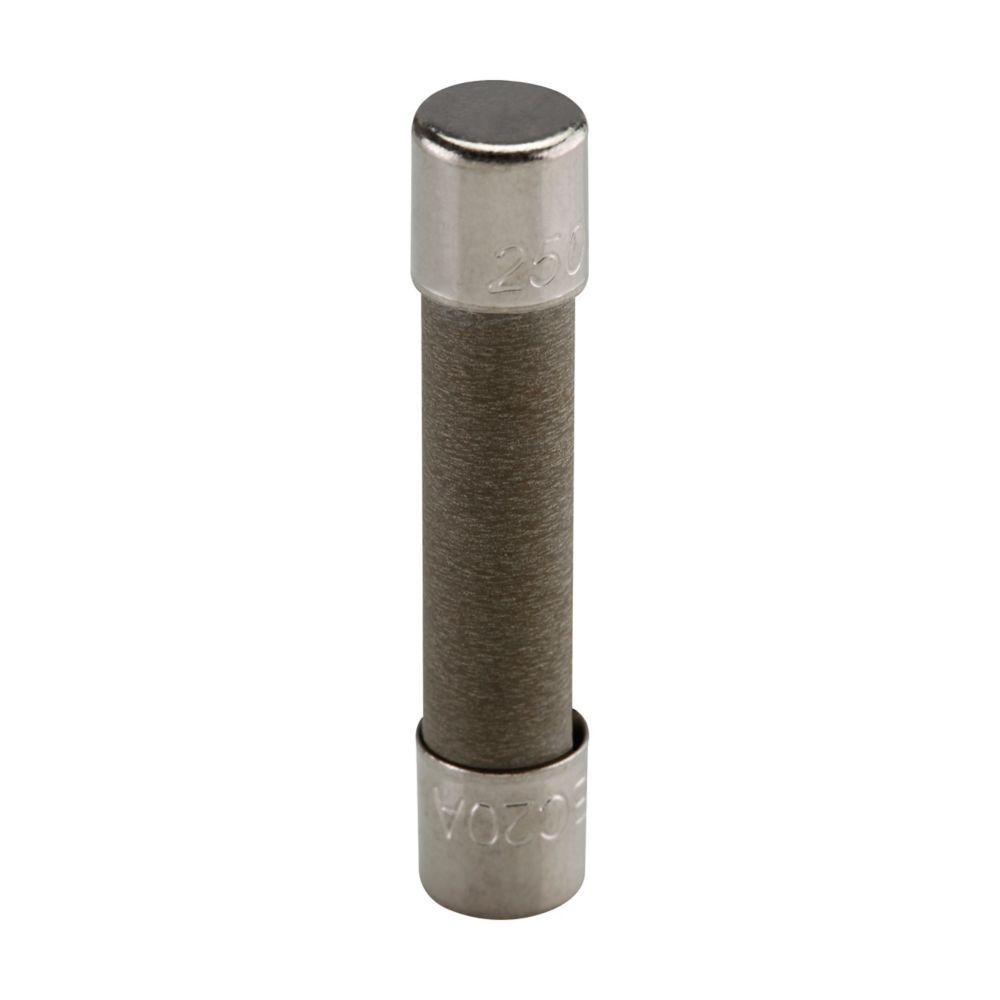

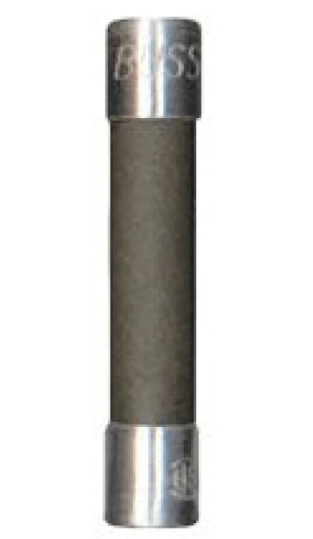

ABC-3 is a fast acting ceramic tube fuse rated for 3 amps and 250 volts AC, manufactured by Cooper Bussmann, Eaton. ABC-3 features a 1/4 inch by 1 1/4 inch physical size with nickel plated brass end caps, designed for low voltage circuit protection. It has an interrupting rating of 100 AIC at 250 VAC and 10,000 AIC at 125 VAC and VDC, meeting UL 248-14 standards and CSA certifications.
- Key Specifications
- Amperage: 3 Amps
- Voltage: 250 Volts AC, 125 Volts DC
- Poles: 1 barrel fuse
- Mounting Type: Cartridge fuse
- Interrupt Rating: 100 AIC @ 250 VAC, 10,000 AIC @ 125 VAC/VDC
- Physical Size: 1/4" x 1 1/4" (6.4 x 31.7 mm)
- Construction: Ceramic tube with nickel plated brass end caps
- Fuse Type: Fast acting
- Series/Frame: ABC series
- Certifications: UL Listed (Guide JDYX & File E19180), CSA Class 1422-01 & 1422-03
Specifications
- Part Number: ABC-3
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : ABC
- Type : ABC
- Voltage : 250
- Amperage : 3
- AIC rating : 100A@250Vac
- Connection : Ferrule
- Diameter : 1.25
- Barrels : 1
Product Data
- UPC : 051712700030
- GTIN : 00051712700030
- Country of Origin : China
- Weight : 1
