Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
ABC-25

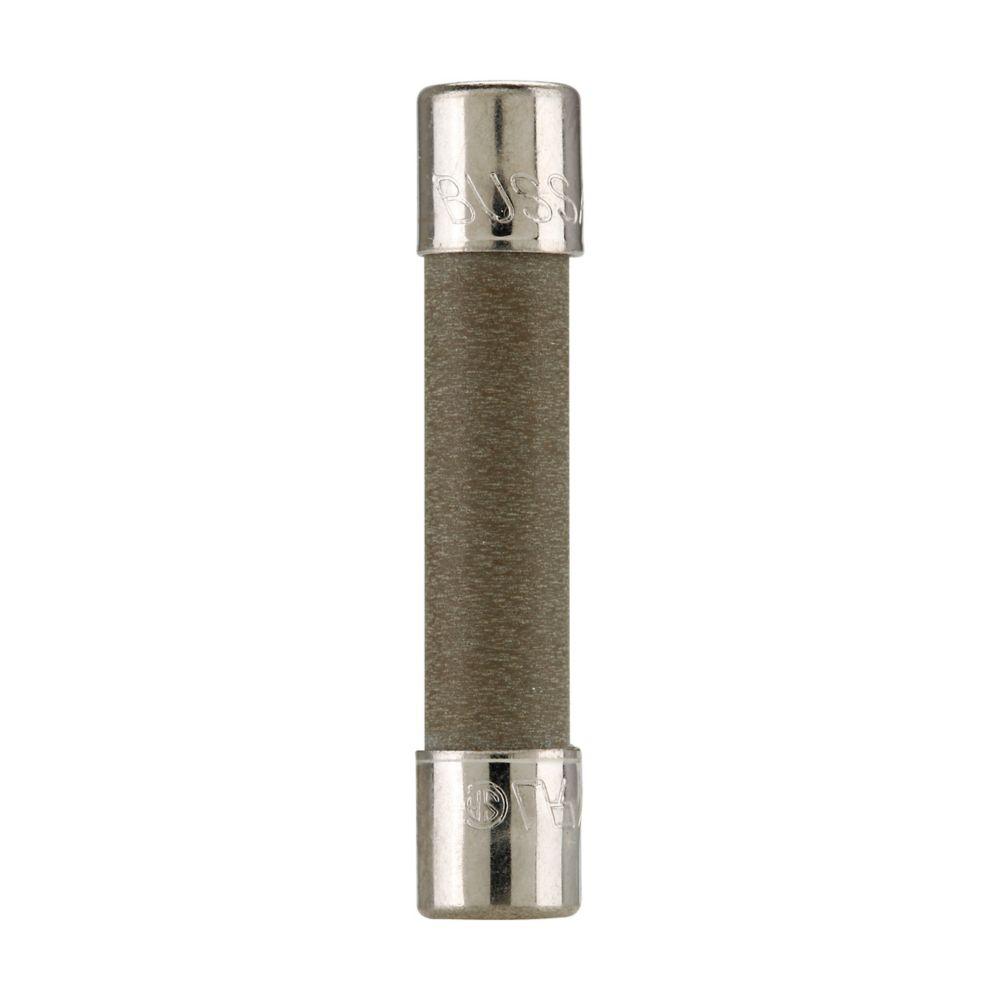

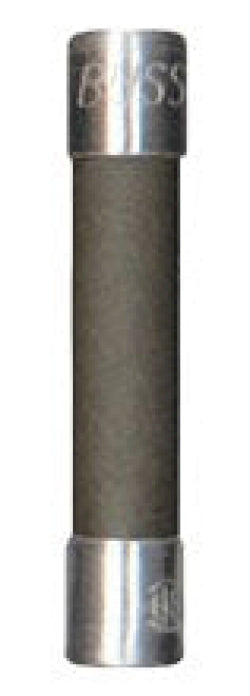

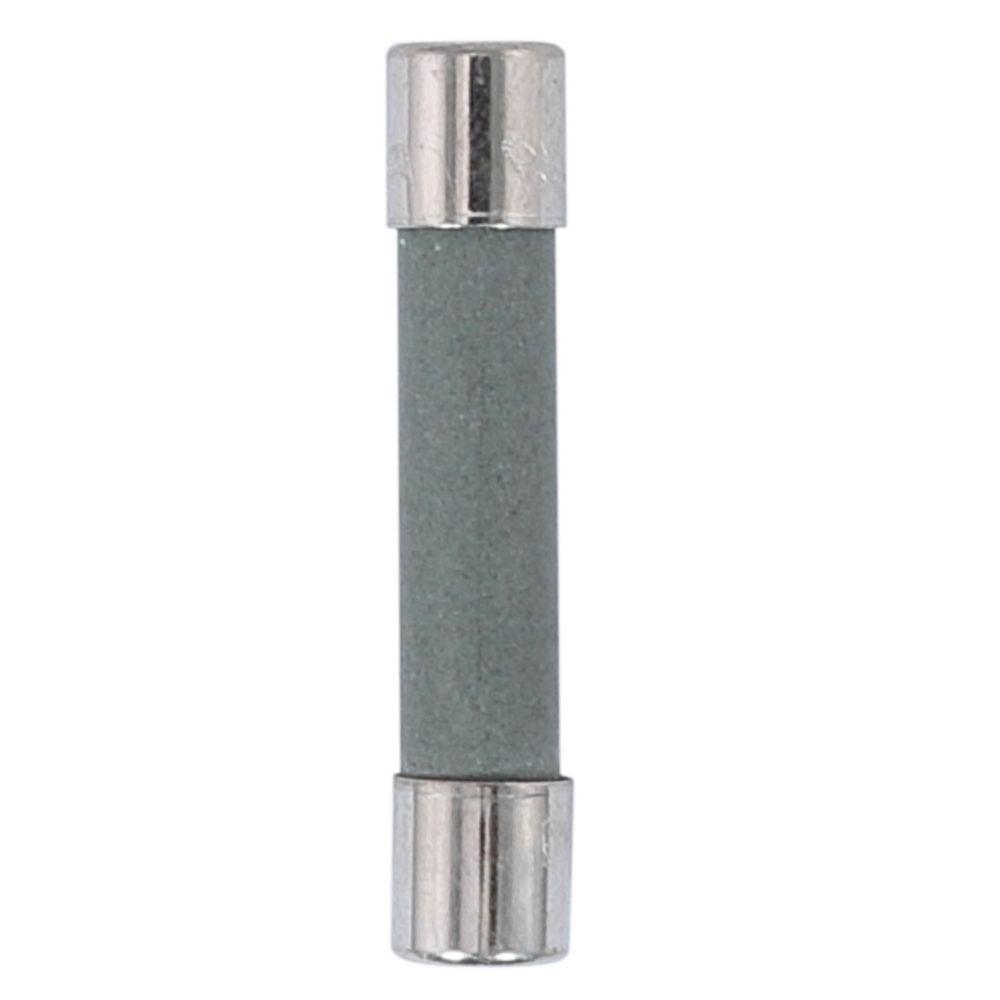

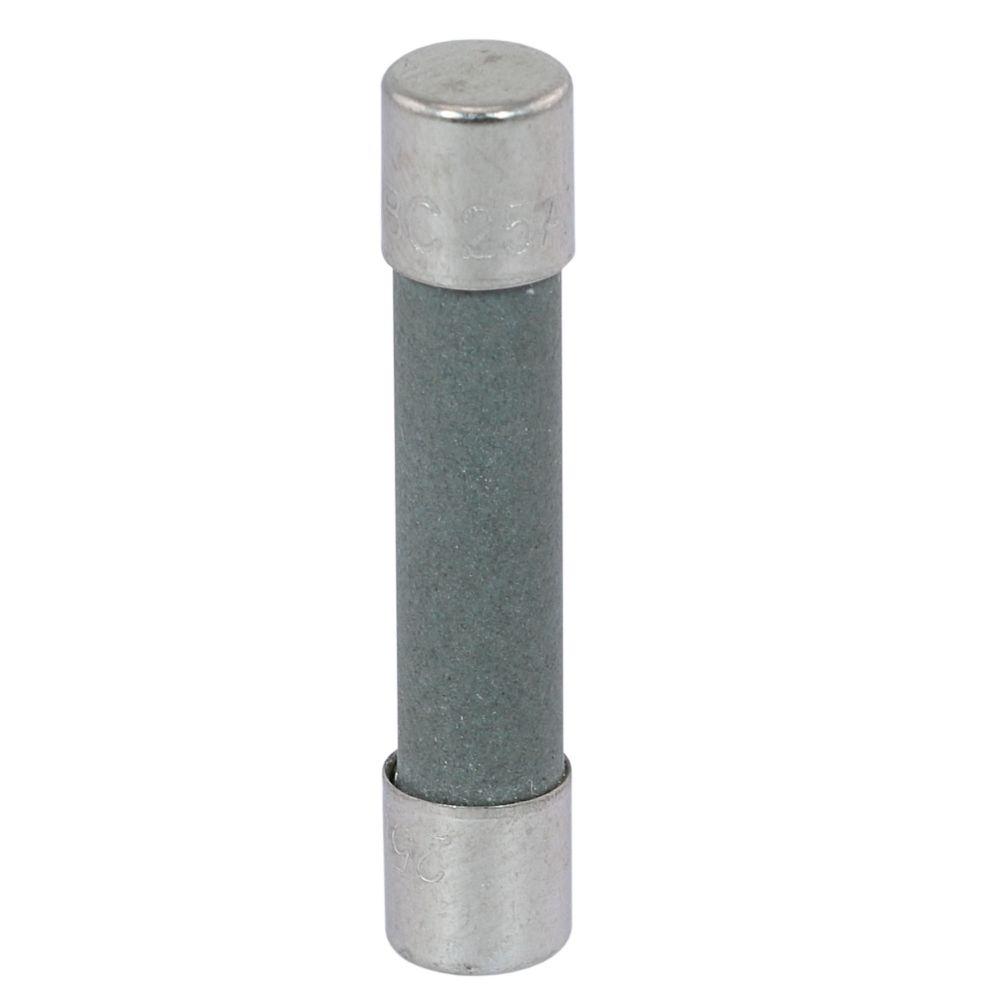

ABC-25 is a 25 Amp, 250 Volt fast-acting ceramic tube fuse from Cooper Bussmann designed for electronic circuit protection.This fuse features a 1/4" x 1 1/4" ceramic tube construction with nickel-plated brass end caps, providing reliable interruption performance. It has an interrupting rating of 400 AIC at 250 VAC and 1,000 AIC at 125 VAC, meeting UL 248-14 standards and CSA certifications. The fuse is non-indicating and suitable for holder mounting in low voltage applications.
- Key Specifications
- Amperage: 25 Amps
- Voltage Rating: 250 VAC, 125 VDC
- Fuse Type: Fast Acting Ceramic Tube
- Physical Size: 1/4" x 1 1/4" (6.4 x 31.7 mm)
- Interrupting Rating: 400 AIC @ 250 VAC, 1,000 AIC @ 125 VAC, 10,000 AIC @ 125 VDC
- Connection Type: Ferrule
- End Caps: Nickel Plated Brass
- Series: ABC
- Certifications: UL Listed (Guide JDYX, File E19180), CSA Certified (Class 1422-01 & 1422-03, File 53787)
- Mounting: Holder Mount
Specifications
- Part Number: ABC-25
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : ABC
- Type : ABC
- Voltage : 250
- Amperage : 25
- AIC rating : 400A@250Vac
- Connection : Ferrule
- Diameter : 1.25
- Barrels : 1
Product Data
- UPC : 051712700177
- GTIN : 00051712700177
- Country of Origin : China
- Weight : 1
