Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
ABC-20

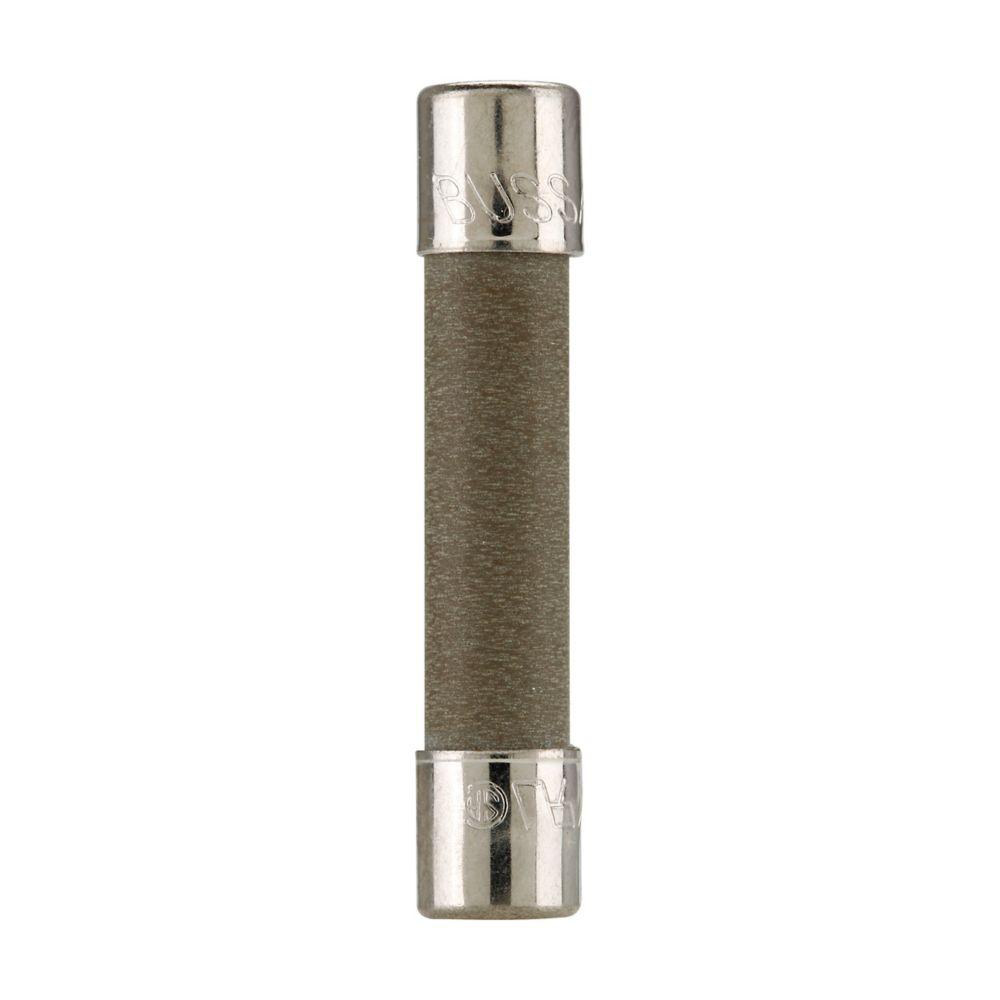

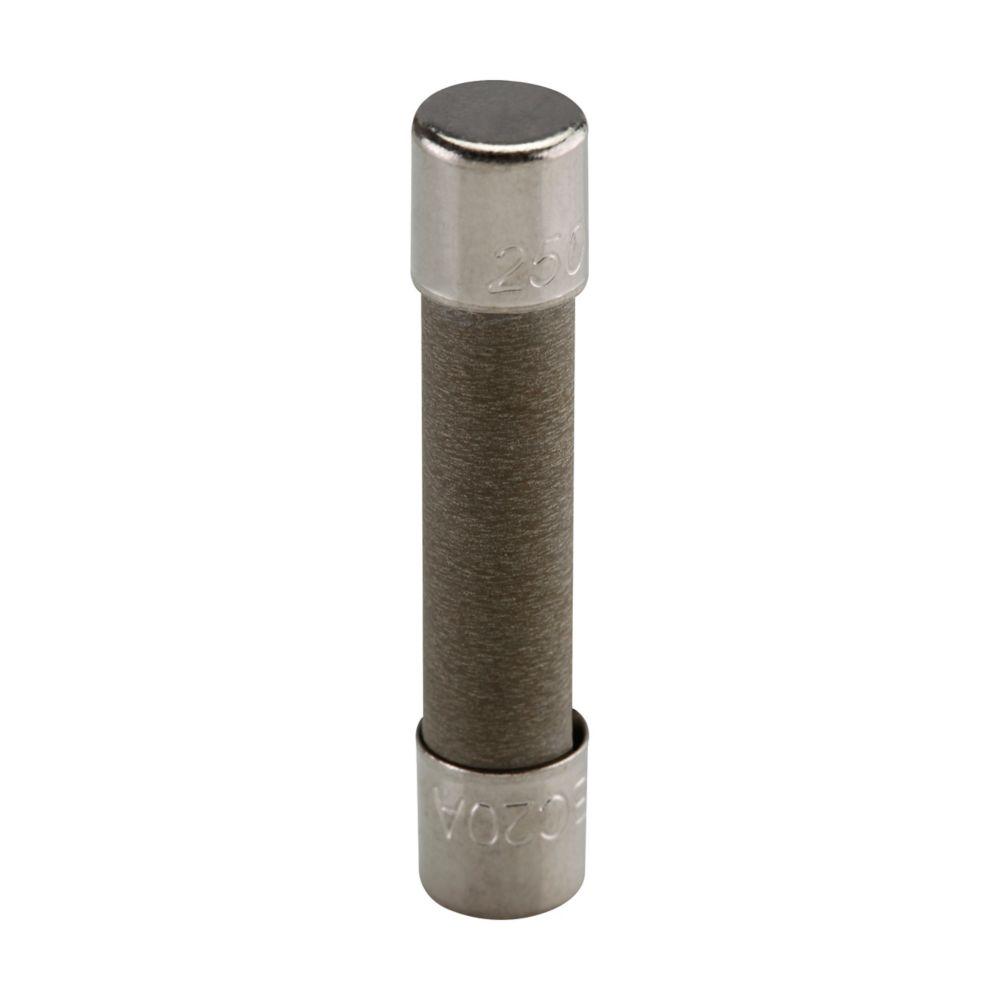

ABC-20 is a 20 Amp, 250 Volt fast-acting ceramic tube fuse from Cooper Bussmann, Eaton, designed for reliable circuit protection.ABC-20 features a 1/4 inch by 1 1/4 inch ceramic tube construction with nickel-plated brass end caps, providing durability and heat resistance. It has an interrupting rating of 400 AIC at 250 VAC and 1000 AIC at 125 VAC, meeting UL 248-14 standards and CSA certifications for safety and performance.
- Key Specifications
- Amperage: 20 Amps
- Voltage Rating: 250 VAC, 125 VDC
- Fuse Type: Fast Acting (Fast Blow)
- Physical Size: 1/4" x 1 1/4" (6.4 x 31.7 mm)
- Interrupting Rating: 400 AIC @ 250 VAC, 1000 AIC @ 125 VAC
- Construction: Ceramic tube with nickel-plated brass end caps
- Certifications: UL Listed (Guide JDYX, File E19180), CSA Certified (Class 1422-01 & 1422-03)
- Mounting Type: Cartridge fuse
- Series/Frame: ABC Series
Specifications
- Part Number: ABC-20
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : ABC
- Type : ABC
- Voltage : 250
- Amperage : 20
- AIC rating : 400A@250Vac
- Connection : Ferrule
- Diameter : 1.25
- Barrels : 1
Product Data
- UPC : 051712700160
- GTIN : 00051712646222
- Country of Origin : China
- Weight : 1
