Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
ABC-15-R

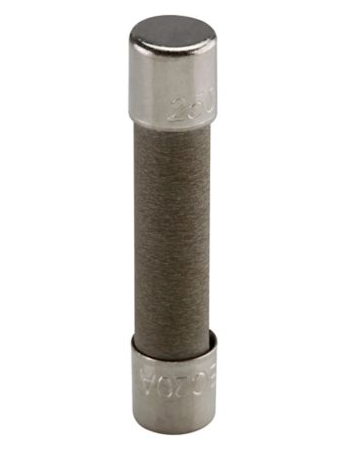

ABC-15-R is a 15-ampere, fast-acting ceramic tube fuse rated for 250 VAC and 125 VDC applications. This cartridge fuse is designed for reliable circuit protection in electronic equipment and power distribution systems. ABC-15-R features a ceramic tube construction with nickel-plated brass endcaps, delivering consistent fast-blow performance with a 750 ampere interrupt rating at 250 VAC. The fuse meets UL standard 248-14 and is available in the standard 3AG form factor measuring 1/4 inch by 1 1/4 inch (6.3 mm x 32 mm). Response time is 4 hours minimum at 100 percent of rated amperage and 120 seconds maximum at 200 percent.
- Current Rating: 15 Amperes
- Voltage Rating AC: 250 VAC
- Voltage Rating DC: 125 VDC
- Fuse Type: Fast-Acting
- Interrupt Rating: 750 AIC at 250 VAC
- Physical Size: 1/4 inch x 1 1/4 inch (6.3 mm x 32 mm)
- Construction: Ceramic tube with nickel-plated brass endcaps
- UL Listed: Standard 248-14
- Opening Time at 100%: 4 hours minimum
- Opening Time at 200%: 120 seconds maximum
Specifications
- Part Number: ABC-15-R
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : ABC
- Voltage : 250
- Connection : Ferrule
- Diameter : 0.25
- Barrels : 1
Product Data
- UPC : 05171264619
- GTIN : 00051712646192
- Country of Origin : China
- Dimensions : x 1-1/4 in x
- Weight : 0.00575
- Certification : CSA Certification Class 1422-01, UL 248-14 Guide JDYX
