ABC-10 - Cooper Bussmann 10 Amp 250 Volt Fast Acting Ceramic Tube Fuse

ABC-10

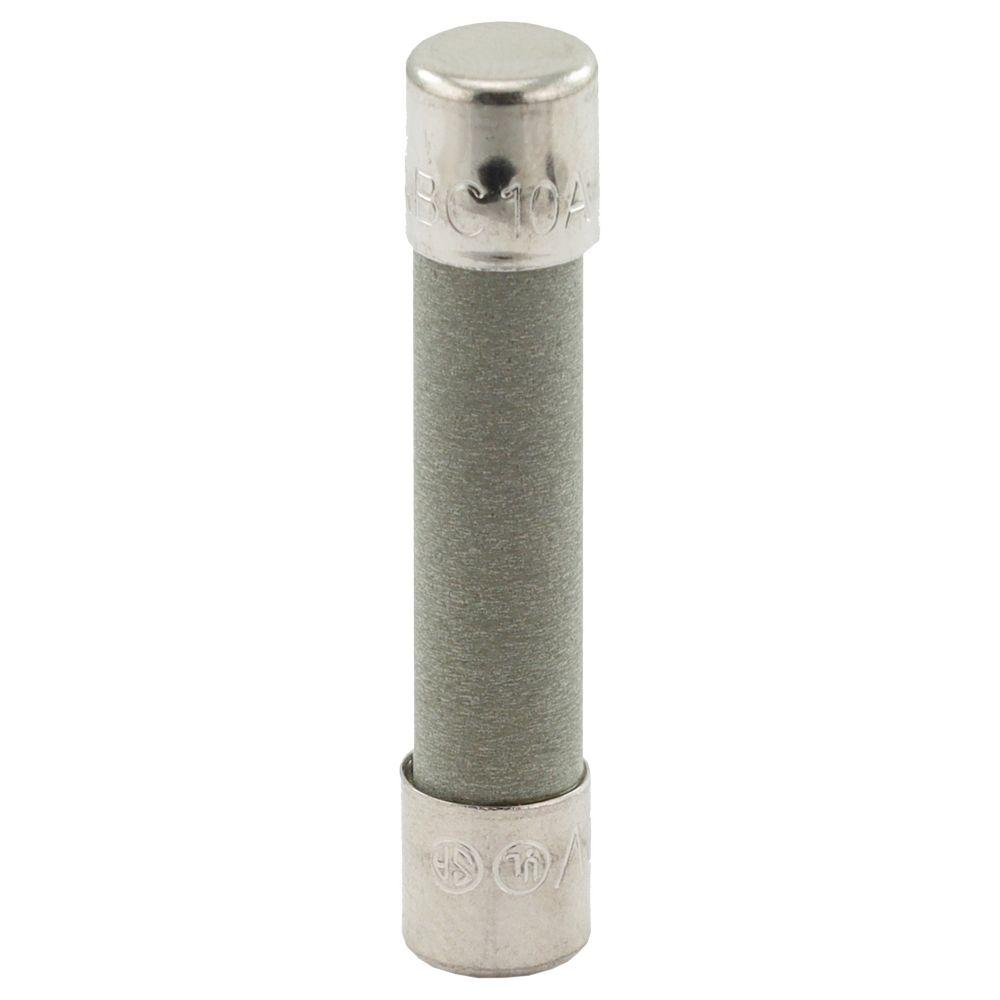

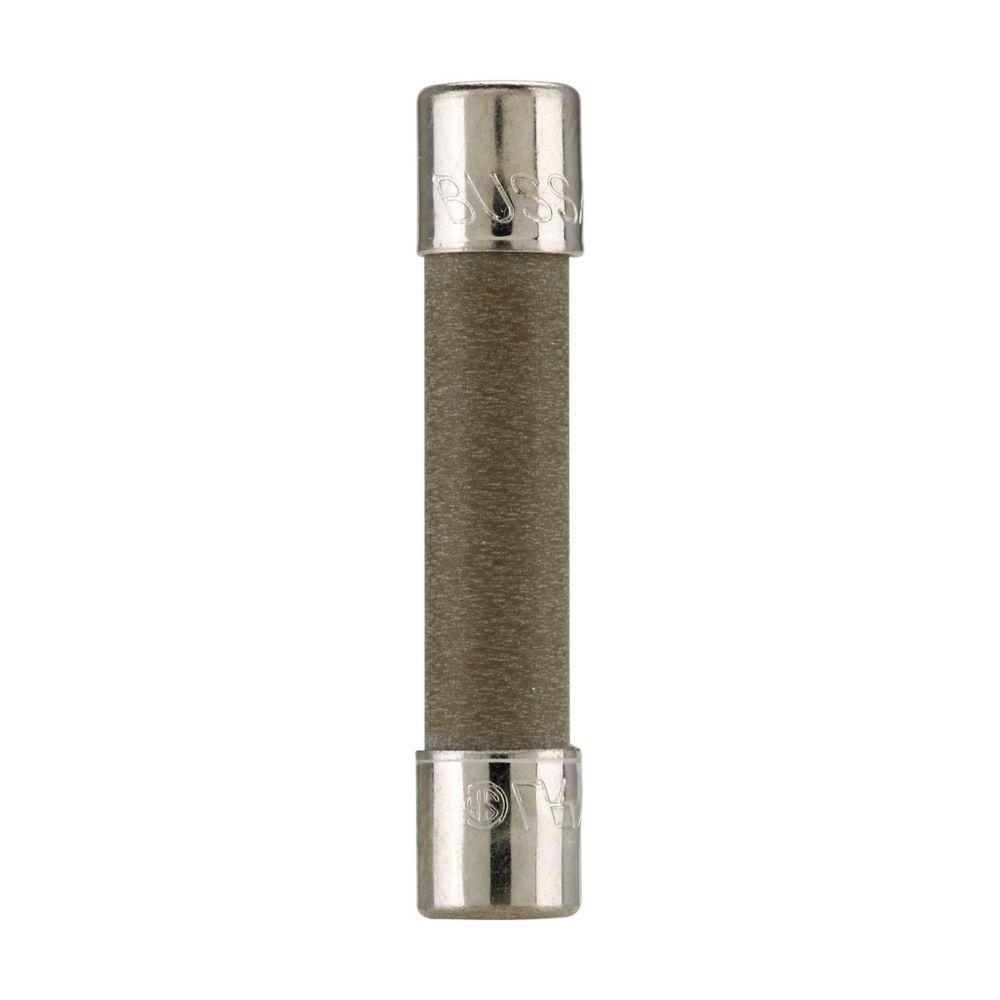

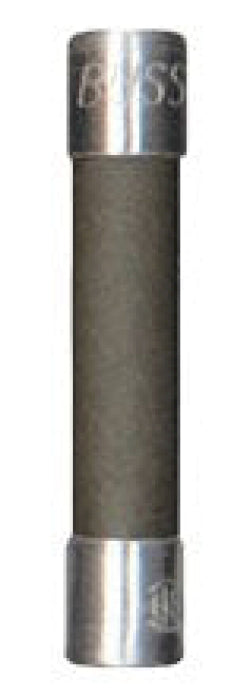

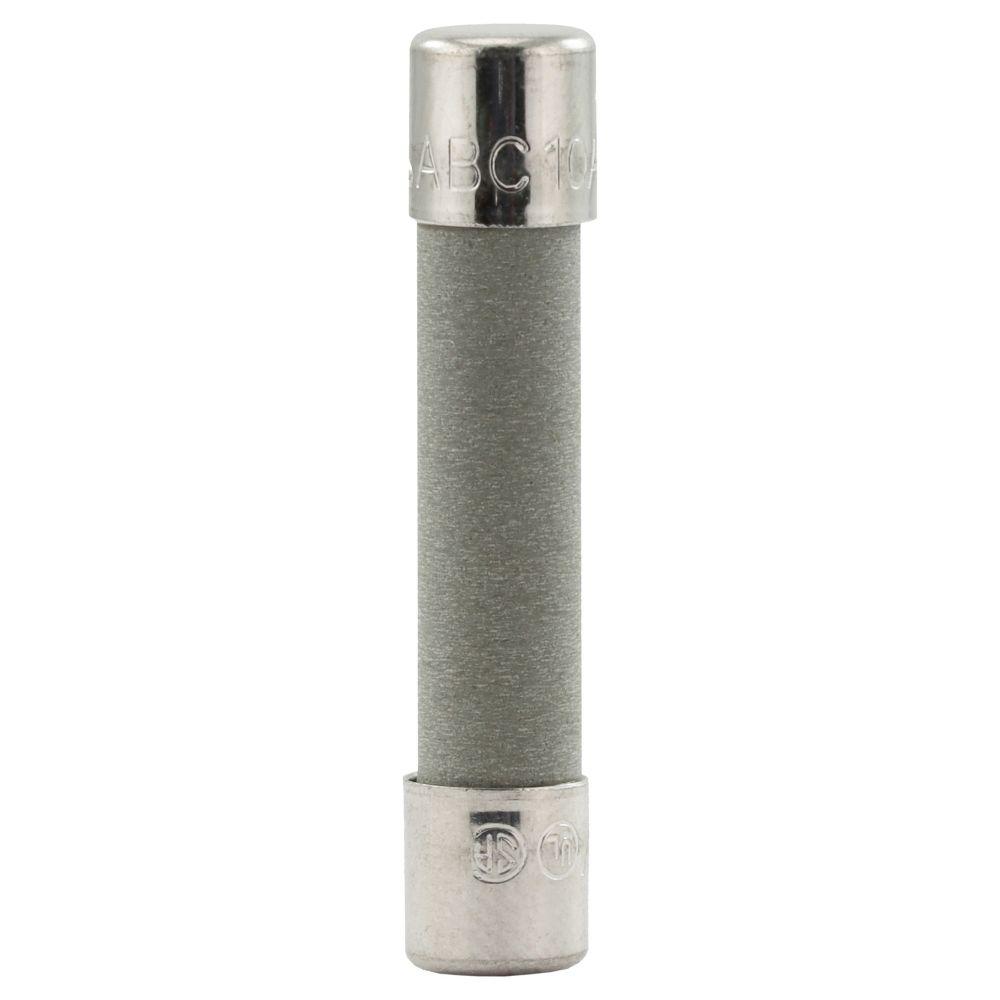

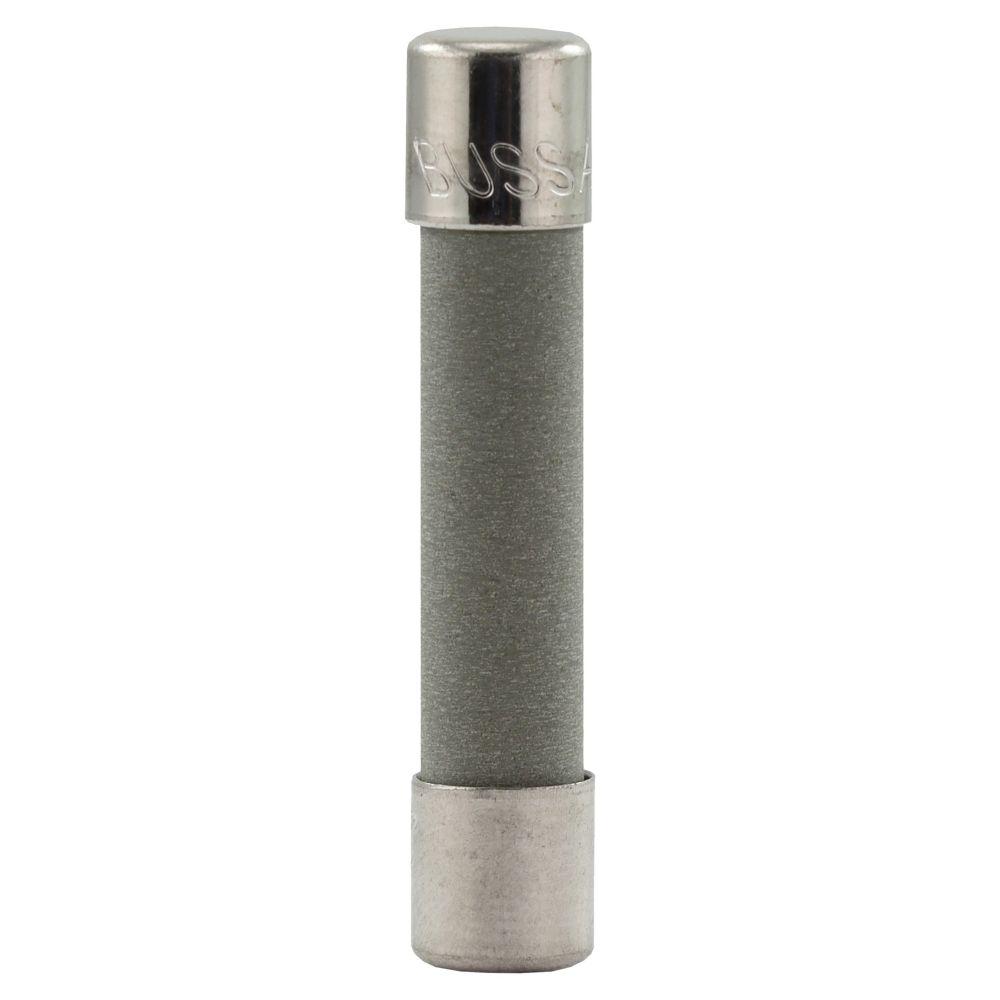

ABC-10 is a fast acting ceramic tube fuse rated for 10 amps and 250 volts AC, manufactured by Cooper Bussmann, Eaton. It features a 1/4" x 1 1/4" size with nickel plated brass end caps.The ABC-10 fuse is designed for low voltage applications with a 200 AIC interrupt rating at 250 VAC and 10,000 AIC at 125 VAC and 125 VDC. It meets UL 248-14 standards and is UL Listed (Guide JDYX, File E19180) and CSA certified (Class 1422-01 & 1422-03, File 53787). This fuse is suitable for mounting in fuse holders and provides reliable fast-acting protection.

Key Specifications
• Amperage: 10 Amps
• Voltage Rating: 250 VAC, 125 VDC
• Fuse Type: Fast Acting
• Physical Size: 1/4" x 1 1/4" (6.4 x 31.7 mm)
• Interrupting Rating: 200 AIC @ 250 VAC
• Interrupting Rating: 10,000 AIC @ 125 VAC and 125 VDC
• Mounting Type: Holder/Clip
• Construction: Ceramic tube with nickel plated brass end caps
• Certifications: UL Listed, CSA Certified
• Series: ABC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ABC-10
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : ABC
• Type : ABC
• Voltage : 250
• Amperage : 10
• AIC rating : 200A@250Vac
• Connection : Ferrule
• Diameter : 1.25
• Barrels : 1

Product Data

• UPC : 051712700108
• GTIN : 00051712646161
• Country of Origin : China
• Weight : 1
