Product Info
- Manufacturer:Schneider Electric
Description
A9XPH112

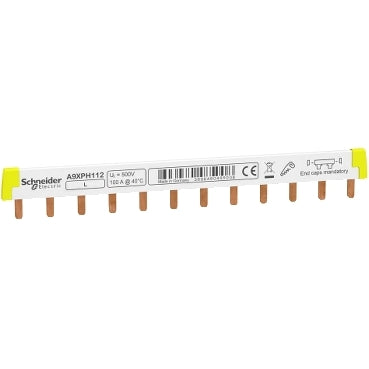

A9XPH112 is a Schneider Electric Acti 9 combination busbar designed for use with C60, iK60, iID, iID K, iSW, and iSW-NA circuit breakers and switch disconnectors. This cuttable horizontal-mount busbar provides reliable power distribution in compact electrical enclosures with a rated operational voltage of 415 VAC and insulation voltage of 500 VAC. The busbar features 100 ampere current rating, 1-pole configuration, and 12 modules at 18 mm pitch spacing, allowing for flexible circuit breaker arrangement and easy field customization through cutting.
- Rated Operational Voltage: 415 VAC
- Rated Insulation Voltage: 500 VAC
- Current Rating: 100 Amperes
- Electrical Phase: 1-Pole
- Number of Modules: 12 at 18 mm Pitch
- Mounting: Horizontal
- Length: 220 mm
- Cuttable Design: Yes
- Compatible Series: Acti 9 (iC60, iK60, iID, iID K, iSW, iSW-NA)
- Country of Origin: Germany
- Fire Resistance: 960 degrees C (30 seconds)
Specifications
- Part Number: A9XPH112
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
Product Data
- UPC : 60648048500
- GTIN : 3.60648E+12
- Country of Origin : Denmark
- Weight : 0.106
