Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

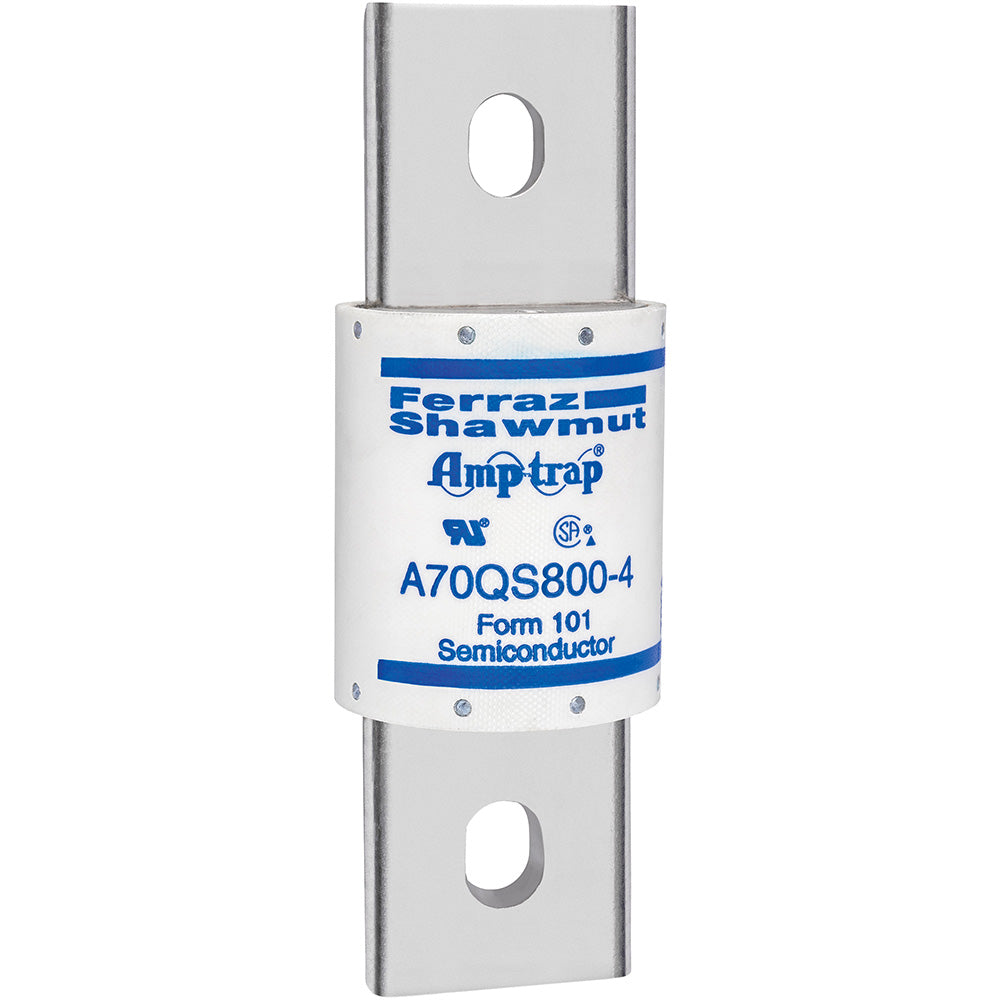

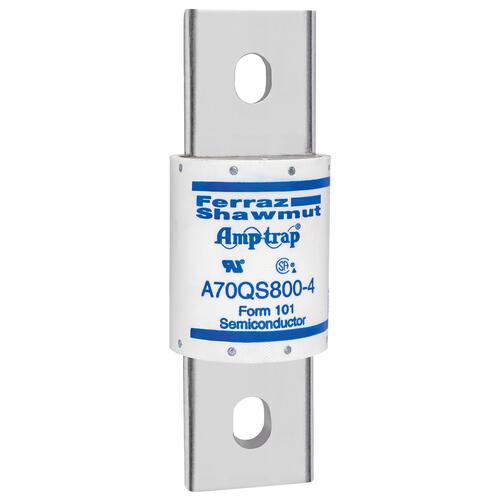

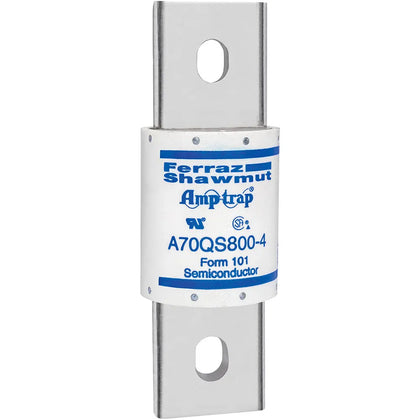

A70QS800-4
A70QS800-4 is an 800 amp, 700 volt semiconductor high speed fuse from Eaton's A70QS series designed for fast-acting circuit protection.This fuse features a bolted blade mounting type and is rated for 700 VAC and 700 VDC operation with high interrupting ratings of 200,000 AIC AC and 100,000 AIC DC. It provides superior protection for dynamic solid state equipment such as motor drives and UPS systems, offering lower I2t for better protection and longer life under cyclic loading.
- Key Specifications
- Amperage: 800A
- Voltage Rating: 700V AC/DC
- Fuse Type: Semiconductor High Speed
- Series/Frame: A70QS
- Mounting Type: Bolted Blade
- Interrupting Rating: 200,000 AIC AC / 100,000 AIC DC
- Application: Motor drives, UPS, solid state equipment protection
- Manufacturer: Eaton (Mersen/Ferraz Shawmut)
- Extremely fast acting
- Lower I2t for improved protection and longer fuse life
Specifications
- Part Number: A70QS800-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A70QS
- Voltage : 700
- Amperage : 700
- AIC rating : 200kA@700V
- Diameter : 2.5
- Barrels : 1
Product Data
- UPC : 782001946890
- GTIN : 00782001946890
- Country of Origin : Mexico
- Dimensions : x 7.09 in x
- Weight : 3
- Certification : CE, UL Recognized, Guide JFHR2, File 60314, CSA Certified LR12636
