Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

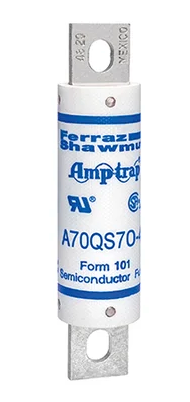

A70QS70-22F
A70QS70-22F is a high-speed semiconductor fuse designed for superior protection in AC and DC circuits up to 700 volts. A70QS70-22F features a 70 ampere rating with a 22mm ferrule mounting style, suitable for semiconductor protection applications including inverter drives and UPS systems. It offers a 200kA interrupting rating at 690VAC and 100kA at 700VDC with excellent cycling ability and low I2t for enhanced equipment protection.
- Key Specifications
- Amperage: 70A
- Voltage Rating: 700VAC / 700VDC
- Mounting Type: 22mm Ferrule
- Interrupting Rating: 200kA AC, 100kA DC
- Fuse Size: 22x58mm (22F)
- Type: High-Speed Semiconductor Protection
- Low I2t for improved semiconductor protection
- Capacitor Discharge Rating: 890VDC up to 2.5ms
- International IEC rated 690VAC
- Series: A70QS
- Characteristic: aR for semiconductor short-circuit protection
- Applications: Small inverter drives, UPS systems
Specifications
- Part Number: A70QS70-22F
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A70QS
- Voltage : 690
- Amperage : 70
- AIC rating : 200kA@690V
- Connection : Ferrule
- Diameter : 22
- Barrels : 1
Product Data
- UPC : 60534028696
- GTIN : 00605340286963
- Weight : 1
