A70QS600-4 - Ferraz Shawmut 600A 700V AC/DC Semiconductor Fuse, Amp-Trap® Series, Stud Mount, 200kA AC/100kA DC Interrupt, UL/CSA Certified

A70QS600-4

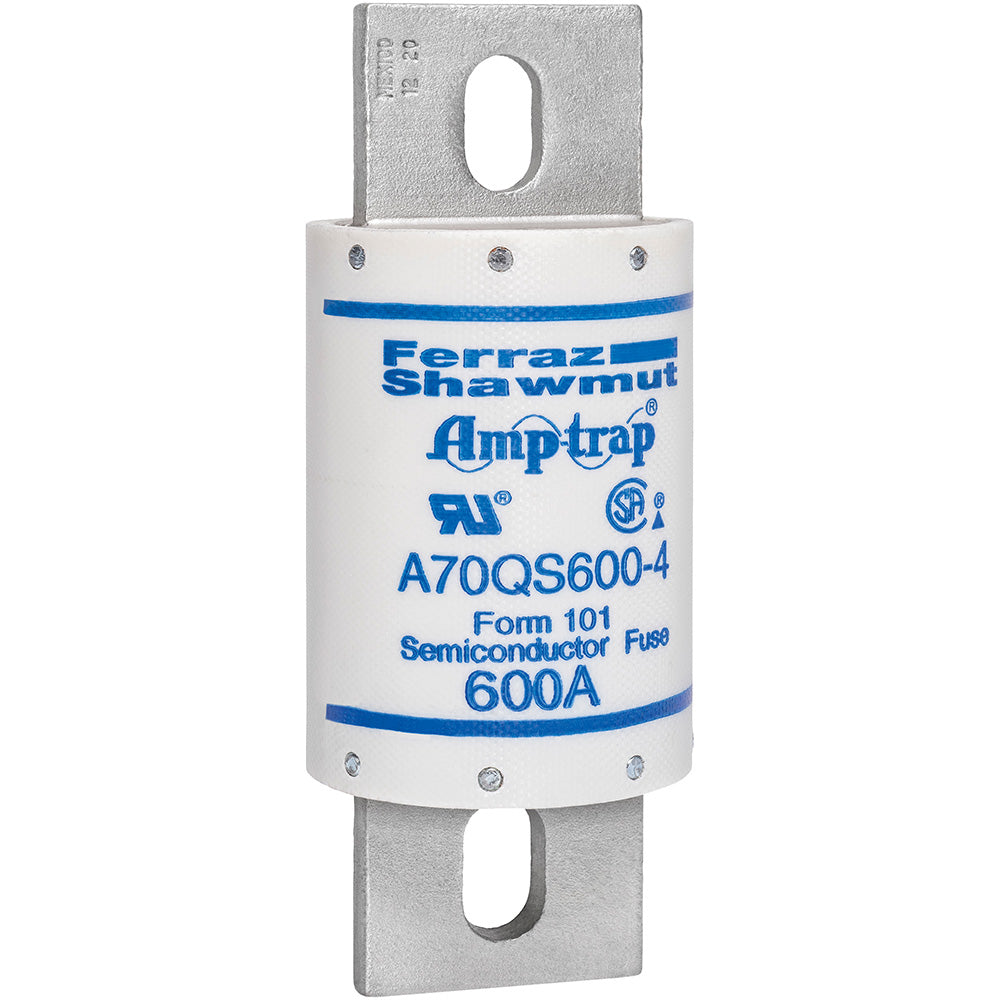

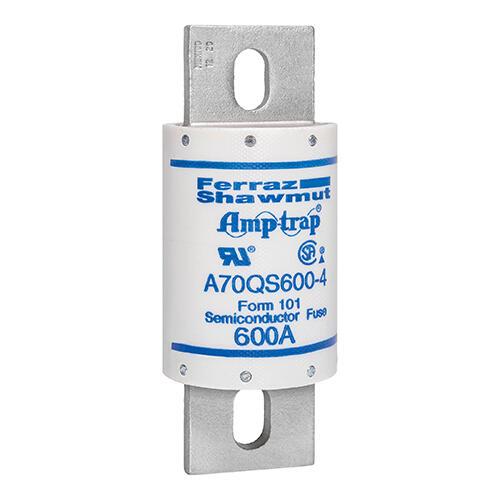

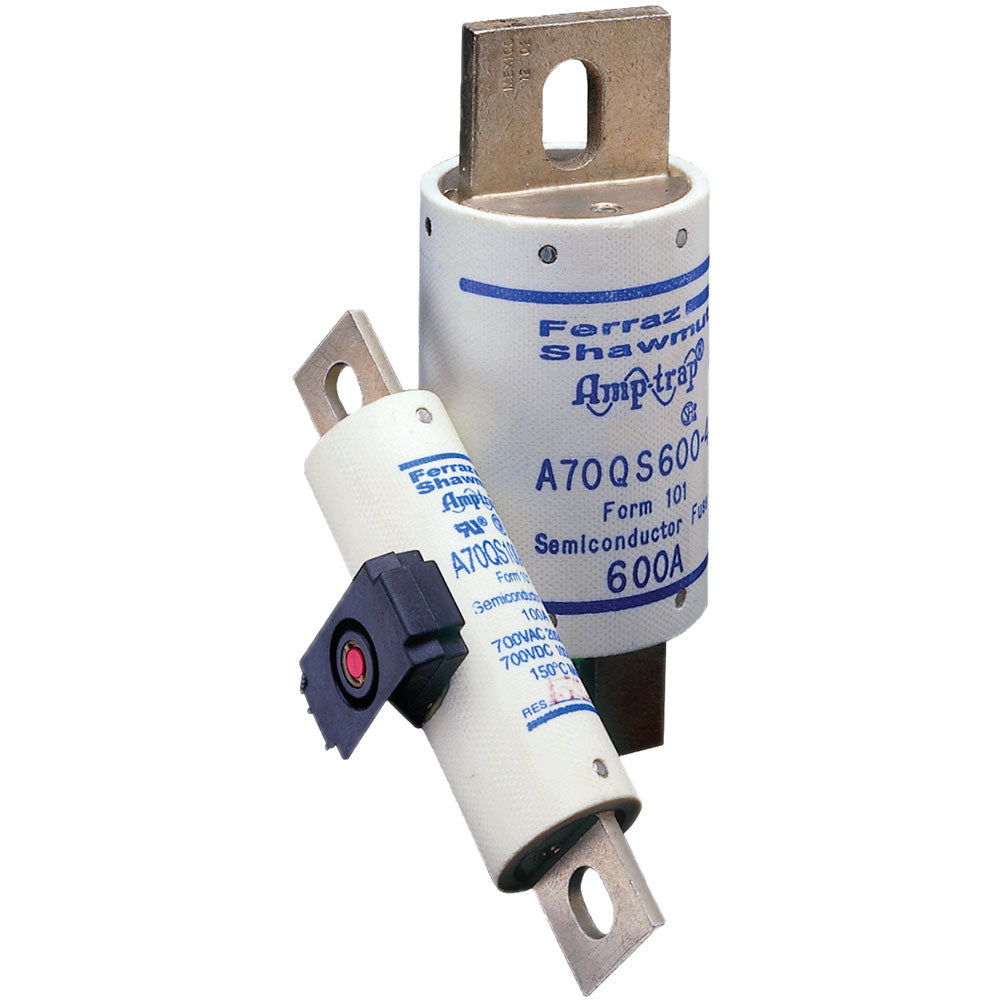

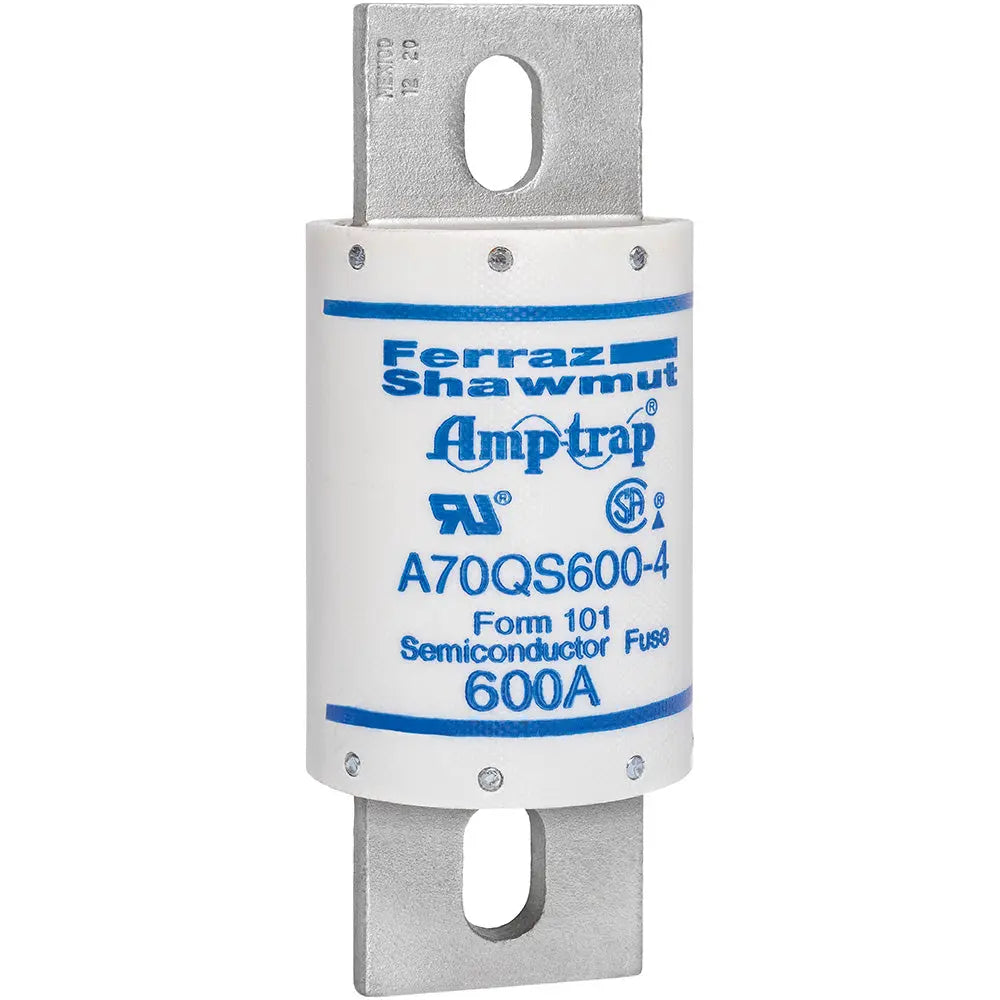

A70QS600-4 is a Ferraz Shawmut 600A, 700V AC/DC semiconductor fuse designed for ultra-fast, current-limiting protection of sensitive electronic equipment.

This Amp-Trap® series fuse features very low I²t for superior equipment protection, excellent cycling ability for long life under high cyclic loads, and low watts loss for cooler operation. It is ideal for protecting motor drives, UPS systems, inverters, and other solid-state devices up to 700V AC or DC. The fuse is stud-mounted (single pole) and is recognized for its compact size and high performance in demanding industrial applications.

Key Specifications
• Amperage: 600A
• Voltage: 700V AC/DC
• Poles: 1
• Mounting Type: Stud mount
• Interrupt Rating: 200,000A AC / 100,000A DC
• Series/Frame: Amp-Trap® A70QS
• Trip Unit: Not applicable (semiconductor fuse)
• Certifications: UL Recognized Component (E60314), CSA Certified (LR 12636)
• Speed: Extremely fast acting, current limiting
• Physical Size: 2" diameter x 5.09" length
• Application: Protection of motor drives, UPS, inverters, and similar equipment
• Features: Low I²t, superior cycling ability, low watts loss

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A70QS600-4
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap
• Type : A70QS
• Voltage : 700
• Amperage : 600
• AIC rating : 200kA@700V
• Diameter : 2
• Barrels : 1

Product Data

• UPC : 782001946876
• GTIN : 00782001946876
• Country of Origin : Mexico
• Dimensions : x 5.09 in x
• Weight : 2
• Certification : CE, UL Recognized, Guide JFHR2, File 60314, CSA Certified LR12636
