Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A70QS6-14F

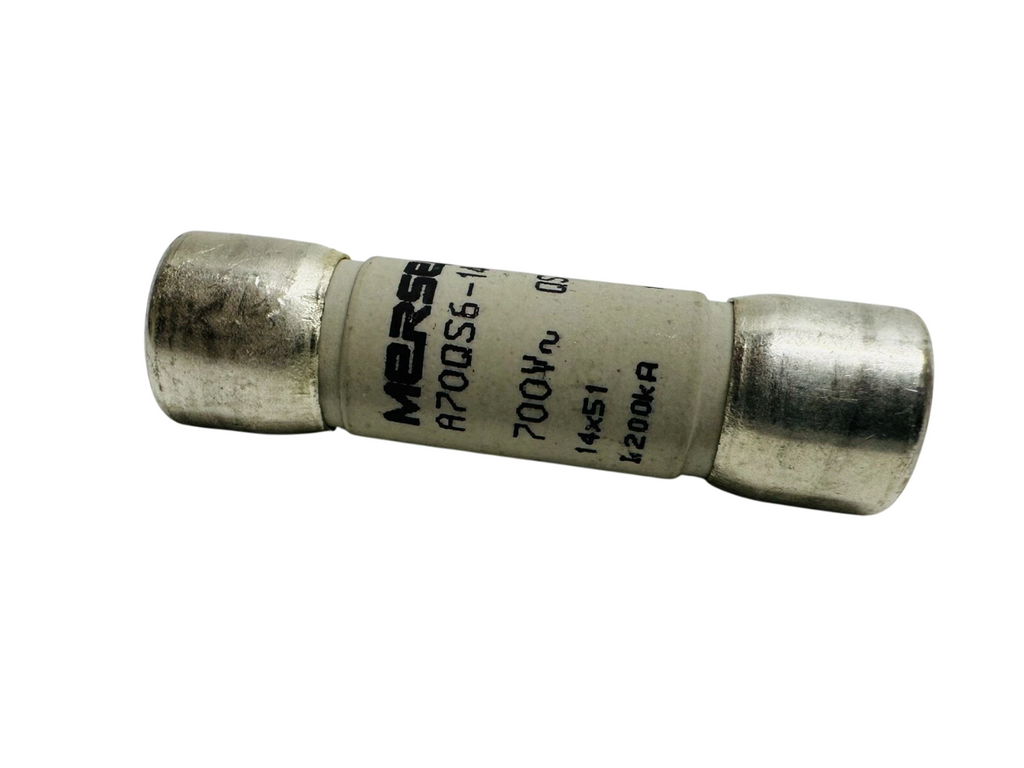

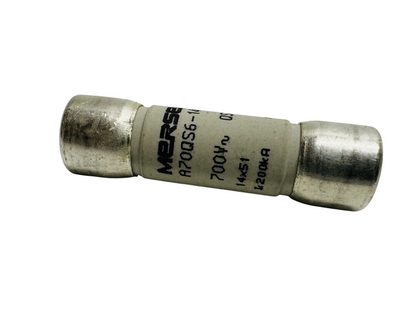

A70QS6-14F is a premium Amp-trap® French cylindrical semiconductor fuse designed for high-speed protection in demanding electrical applications. This solid-fill fuse offers reliable performance in both AC and DC circuits, featuring a compact 14mm x 51mm cylindrical body for easy integration into power distribution systems. Engineered for superior cycling ability and low watt loss, the A70QS6-14F provides extremely fast-acting, current-limiting protection for sensitive semiconductor equipment. It is UL recognized and CSA certified, ensuring compliance with North American safety standards. The fuse is suitable for use in industrial drives, UPS systems, and other high-performance environments requiring robust overcurrent protection.
- 6A Amperage Rating
- 700V AC/DC Voltage Rating
- 200kA AC Interrupting Rating
- 100kA DC Interrupting Rating
- 14mm x 51mm Cylindrical Body
- UL Recognized Component
- CSA Certified
- IEC 690VAC, 760VAC (IEC)
- Extremely Fast Acting
- Current Limiting
- Superior Cycling Ability
- Low Watts Loss
Specifications
- Part Number: A70QS6-14F
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A70QS
- Voltage : 690
- Amperage : 6
- AIC rating : 200kA@690V
- Connection : Ferrule
- Diameter : 14
- Barrels : 1
Product Data
- UPC : 78200135879
- GTIN : 00782001358792
- Country of Origin : Tunisia
- Dimensions : x 51 mm x
- Weight : 0.08
