A70QS50-22F - Mersen (Ferraz Shawmut) 50A 700V Semiconductor Fuse, 22x58mm, Fast Acting, Current Limiting, UL Recognized, CSA Certified

A70QS50-22F

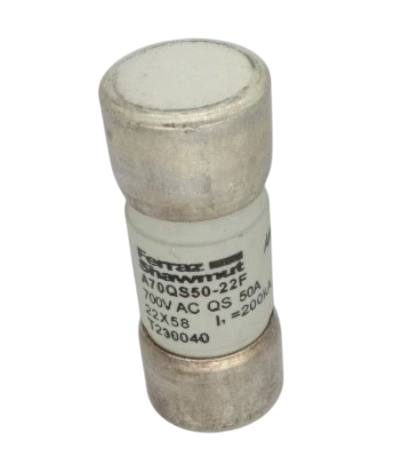

A70QS50-22F is a premium semiconductor fuse designed for high-speed protection in demanding electrical applications. This fuse features a cylindrical ceramic body and is engineered for reliable performance in both AC and DC circuits. It is extremely fast acting and current limiting, making it ideal for protecting sensitive semiconductor equipment. The fuse is UL Recognized and CSA Certified, ensuring compliance with industry safety standards. Its compact 22x58mm size allows for easy integration into a variety of fuse blocks and panels. This Mersen (Ferraz Shawmut) A70QS50-22F fuse is part of the A70QS series and is equivalent to Bussmann FWP style fuses. It offers a very low I²t for improved equipment protection and superior cycling ability with low watts loss. The fuse is suitable for use in applications requiring high interrupting ratings and fast response times.

• Amperage: 50A
• Voltage: 700V AC/DC
• Interrupt Rating: 200,000 AIC AC, 100,000 AIC DC
• Series: A70QS
• Speed: Extremely Fast Acting
• Current Limiting: Yes
• Body Material: Ceramic
• Physical Size: 22mm x 58mm
• Standards: UL Recognized, CSA Certified
• Equivalent to: Bussmann FWP
• Mounting Type: Non-Rejection Fuse Block
• Visual Indication: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A70QS50-22F
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap
• Type : A70QS
• Voltage : 690
• Amperage : 50
• AIC rating : 200kA@690V
• Connection : Ferrule
• Diameter : 22
• Barrels : 1

Product Data

• UPC : 78200114210
• GTIN : 00782001142100
• Country of Origin : Tunisia
• Dimensions : x 2-1/4" x
• Weight : 1
• Certification : UL Recognized Component File E76491, CSA Certified, CSA Certified
