Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage
Description

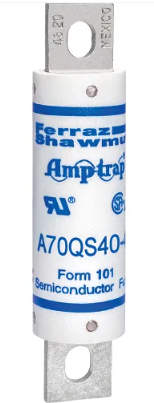

A70QS40-22FI
A70QS40-22FI is a 40 amp, 690VAC/700VDC Amp-Trap® semiconductor fuse by Mersen designed for high-speed circuit protection in industrial applications.This fuse features a French cylindrical 22x58mm solid-fill design, rated for 200kA interrupting capacity at AC and 100kA at DC with a 10ms time constant. It provides superior cycling ability, low I2t, and low watts loss, making it suitable for protecting sensitive semiconductor devices. The fuse includes an indicator for status and complies with IEC standards.
- Amperage: 40A
- Voltage Rating: 690VAC / 700VDC
- Fuse Size: 22 x 58 mm
- Interrupting Rating: 200kA AC / 100kA DC
- Fuse Type: Amp-Trap® high-speed semiconductor fuse
- Indicator: With status indicator
- Mounting: French cylindrical style
- Standards: IEC tested
- Low I2t and watts loss for efficient protection
- Solid-fill construction for durability
Specifications
- Part Number: A70QS40-22FI
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Amp-Trap
- Type : A70QS
- Voltage : 700
- Amperage : 40
- AIC rating : 200kA@700V
- Connection : Ferrule
- Diameter : 22
- Class Rating : Semiconductor
- Velocity : VFA - Very Fast Acting
Product Data
- UPC : 078200114225
- GTIN : 00782001142254
- Weight : 1
