Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

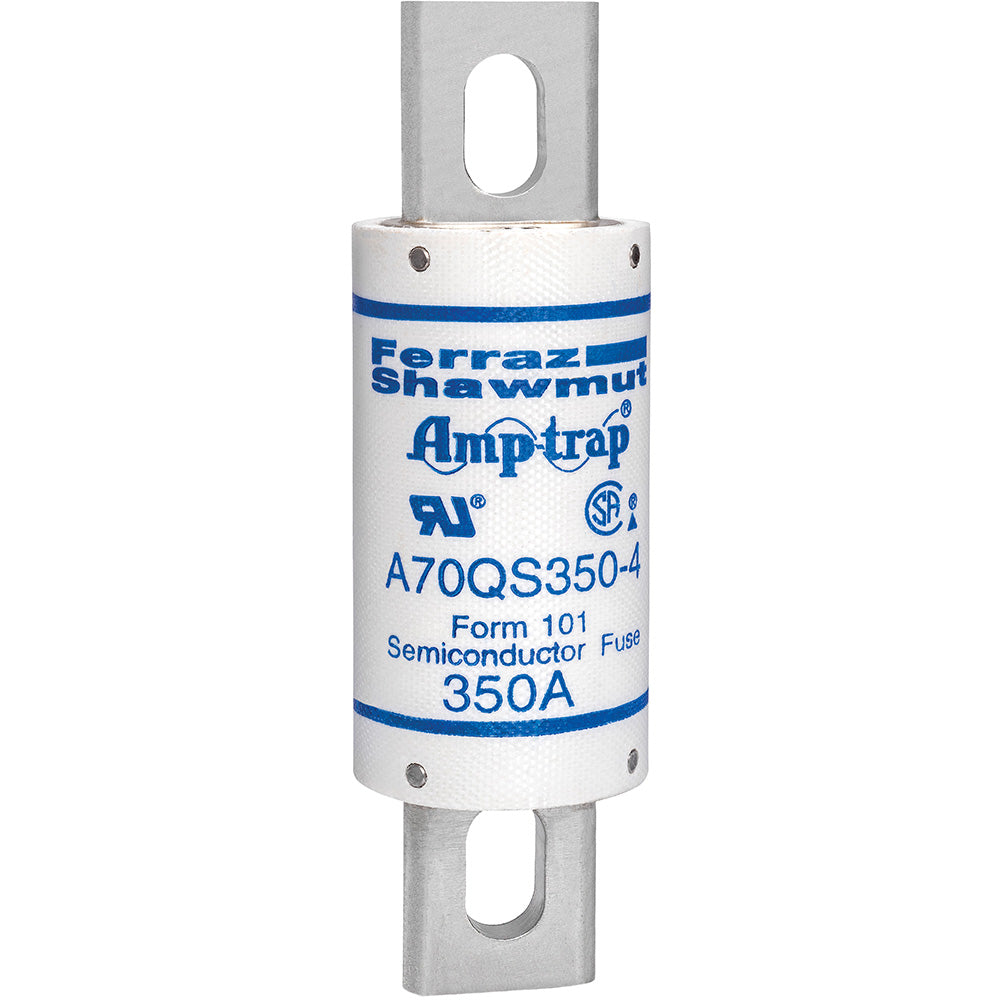

A70QS350-4
A70QS350-4 is a high speed semiconductor fuse from Eaton's Amp-Trap A70QS series designed for 350 amp, 700 volt AC/DC applications with bolted blade mounting.This Eaton A70QS350-4 fuse offers high performance semiconductor protection with a 700VAC/700VDC voltage rating and 350 ampere current rating. It features a bolted blade mounting type, tin-plated brass blade terminals, and a 50 kA interrupt rating for reliable circuit protection. The fuse is designed for fast acting operation with low I2t for enhanced protection of dynamic solid state equipment such as motor drives and UPS systems. It complies with ROHS standards and is suitable for both AC and DC circuits.
- Key Specifications
- Amperage Rating: 350 A
- Voltage Rating: 700 V AC/DC
- Interrupt Rating: 50 kA
- Mounting Type: Bolted Blade
- Series/Frame: Amp-Trap A70QS
- Speed/Characteristic: High Speed
- Connection Material: Tin-Plated Brass
- Connection Type: Blade
- Frequency: 50/60 Hz
- ROHS Compliant: Yes
- Product Length: 5.09 in
- Product Diameter: 1.5 in
- Part Number: A70QS350-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 700
- Amperage : 350
- AIC rating : 200kA@700V
- Diameter : 1.5
- Barrels : 1
- UPC : 78200194874
- GTIN : 00078200194874
- Country of Origin : Mexico
- Dimensions : x 5.09 in x
- Weight : 1
- Certification : CE, UL Recognized, Guide JFHR2, File 60314, CSA Certified LR12636
Specifications
Product Data
