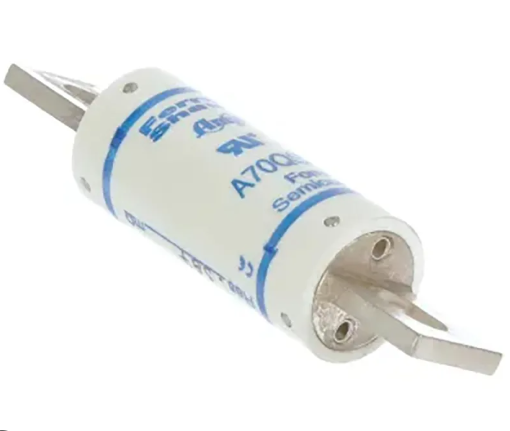

A70QS32-14F - Mersen A70QS 32A 690VAC 700VDC Semiconductor Fuse 14x51mm Very Fast Acting

A70QS32-14F

A70QS32-14F is a high-speed semiconductor fuse designed for reliable protection in demanding electrical applications. This solid-fill cylindrical fuse features a 14x51mm size and is rated for 32A, 690VAC, and 700VDC, with a very fast-acting response for critical circuit protection. It is ideal for use in industrial power systems, motor drives, and capacitor banks where rapid fault interruption is essential. This premium Amp-trap® fuse is part of the A70QS series and is engineered for high interrupting capacity, supporting up to 200kA at 690VAC and 100kA at 700VDC. The fuse is suitable for both AC and DC applications, including those with capacitor discharge up to 2.5ms time constant. It is available with optional striker for enhanced monitoring and safety.

• Part Number: A70QS32-14F
• Manufacturer: Mersen (Ferraz Shawmut)
• Series/Frame: A70QS
• Amperage Rating: 32A
• Voltage Rating: 690VAC, 700VDC
• Size: 14x51mm
• Interrupt Rating: 200kA @ 690VAC, 100kA @ 700VDC
• Speed: Very Fast Acting
• Mounting Type: Cylindrical (Barrel)
• Application: Semiconductor, Capacitor Discharge
• Optional: Striker Available
• Certifications: IEC Rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A70QS32-14F
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap
• Type : A70QS
• Voltage : 690
• Amperage : 32
• AIC rating : 200kA@690V
• Connection : Ferrule
• Diameter : 14
• Barrels : 1

Product Data

• UPC : 782001142032
• GTIN : 00782001142032
• Country of Origin : Tunisia
• Dimensions : x 51 mm x
• Weight : 0.05
• Certification : UL Certified; CSA Certified
