Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
A70QS30-14F

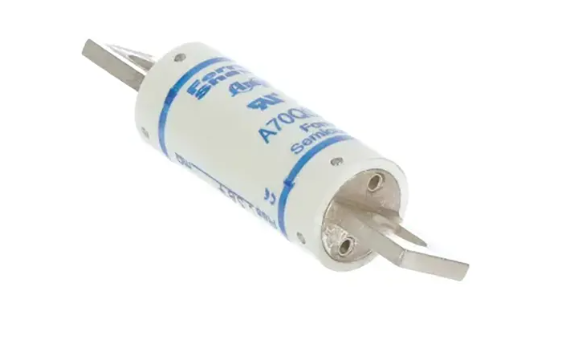

A70QS30-14F is a French cylindrical semiconductor protection fuse rated for 30 amperes at 690VAC with a 200kA interrupting capacity at 690V. This Amp-Trap fuse features a 14x51mm ferrule-mount design and is engineered for low I2t performance to provide superior semiconductor protection in inverter drives, UPS systems, and other industrial applications. The fuse delivers very fast acting protection with solid-fill construction and is IEC rated for worldwide acceptance. Key Specifications
- Amperage: 30A
- Voltage Rating: 690VAC, 700VDC
- Interrupting Capacity: 200kA at 690V
- Size: 14x51mm (14F)
- Connection Type: Ferrule Mount
- Fuse Style: A70QS French Cylindrical
- Application: Semiconductor Protection
- Speed: Very Fast Acting
- Construction: Solid-Fill
- Optional Striker: Available
Specifications
- Part Number: A70QS30-14F
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Amp-Trap
- Type : A70QS
- Voltage : 690
- Amperage : 30
- AIC rating : 200kA@690V
- Connection : Ferrule
- Diameter : 14
- Barrels : 1
Product Data
- Weight : 5.19
