Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
A70QS250-4

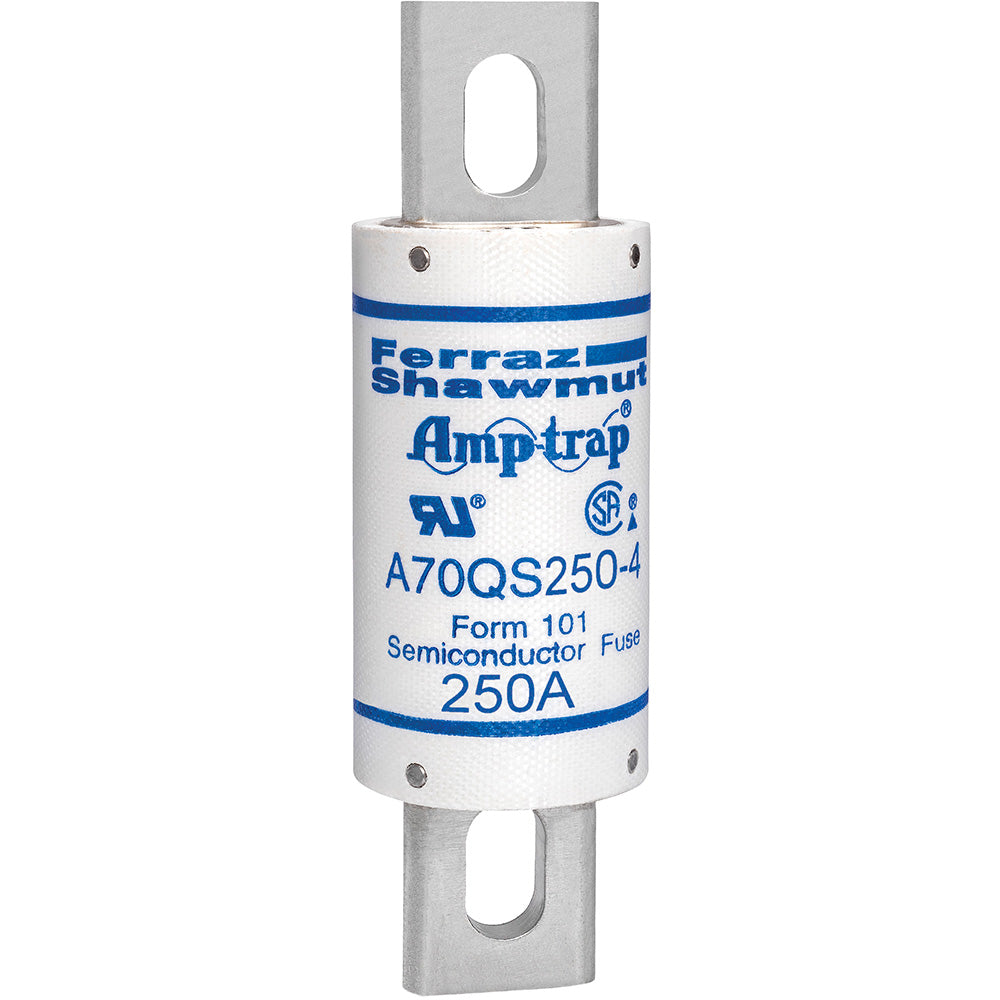

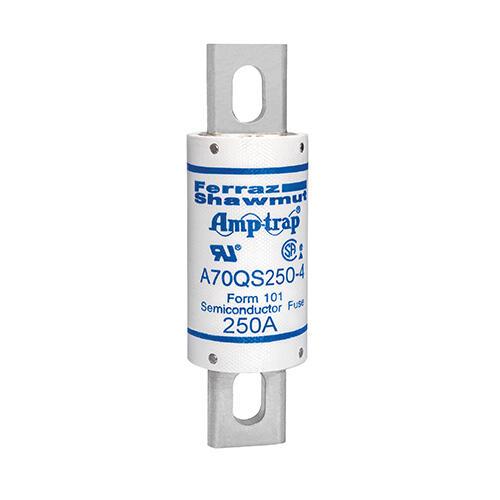

A70QS250-4 is a high speed semiconductor fuse designed for reliable protection in electrical circuits.A70QS250-4 features a 250 amp rating and supports up to 700 volts AC/DC with a bolted blade mounting type. It offers very fast acting characteristic suitable for semiconductor protection with an interrupt rating of 100 kA at 700 VAC and 200 kA at 690 VAC. This fuse is part of the Amp-Trap A70QS series and is UL and CSA certified.
- Key Specifications
- Amperage: 250 A
- Voltage Rating: 700 V AC/DC
- Mounting Type: Bolted Blade
- Fuse Type: Semiconductor High Speed
- Interrupt Rating: 100 kA @ 700 VAC, 200 kA @ 690 VAC
- Series: Amp-Trap A70QS
- Characteristic: Very Fast Acting
- Certifications: UL, CSA
- Body Material: GMG
- Poles: 1 (single pole fuse)
Specifications
- Part Number: A70QS250-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A70QS
- Voltage : 700
- Amperage : 250
- AIC rating : 200kA@700V
- Diameter : 1.5
- Barrels : 1
Product Data
- UPC : 78200194832
- GTIN : 00782001948320
- Weight : 1
- Certification : UL, CSA
