2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A70QS25-14F

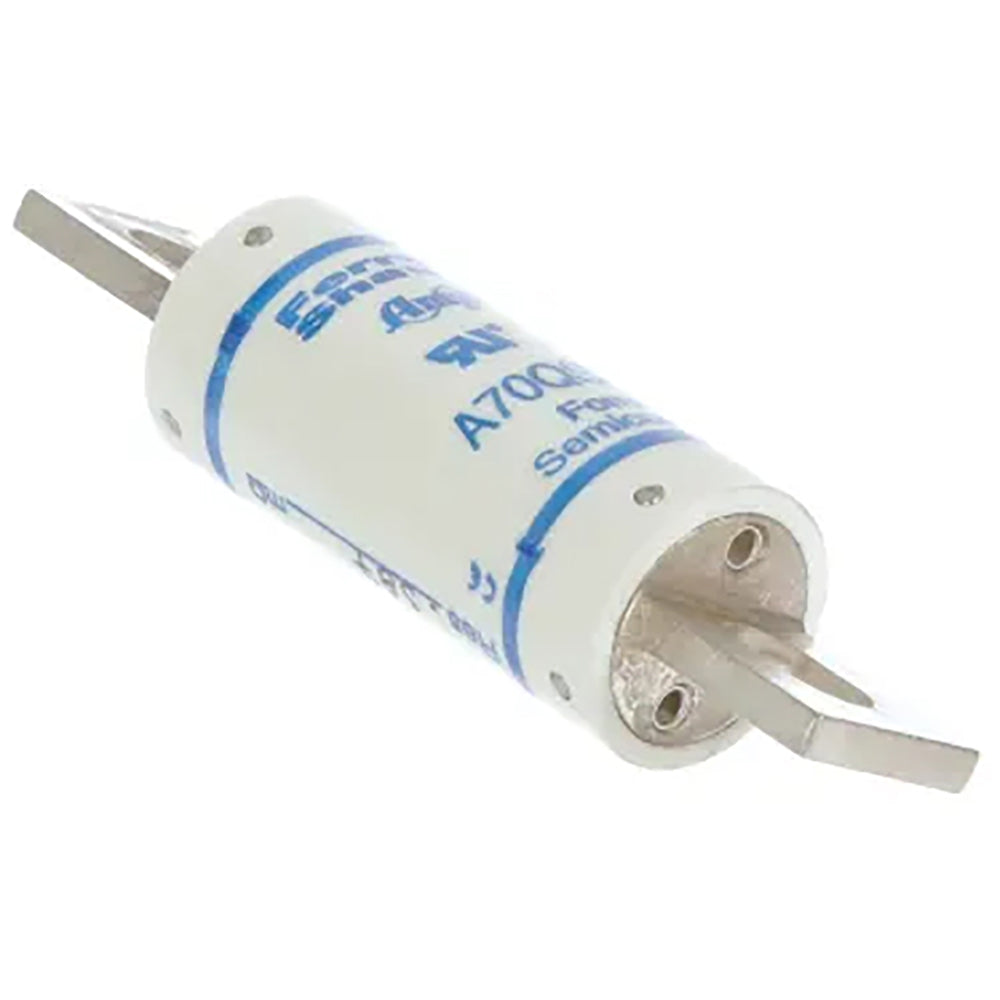

A70QS25-14F is a high speed semiconductor fuse designed for reliable protection in power electronics applications.
This fuse features a solid-fill construction with a 14mm diameter and 51mm length, rated for 25 amps and 700 volts DC, with an interrupting rating of 200kA AC and 100kA DC at a 10ms time constant. It is IEC rated for 690 VAC and UL and CSA approved, suitable for protecting semiconductor devices in inverter drives, UPS systems, and other sensitive equipment. The fuse uses a ferrule terminal type for mounting and offers very low I2t for superior semiconductor protection.
- Amperage: 25 Amp
- Voltage Rating: 690 VAC, 700 VDC
- Interrupting Rating: 200kA AC, 100kA DC
- Fuse Size: 14mm diameter x 51mm length
- Mounting Type: Ferrule
- High Speed Characteristics
- IEC Rated
- UL and CSA Approved
- Series: A70QS
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: A70QS25-14F
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A70QS
- Voltage : 690
- Amperage : 25
- AIC rating : 200kA@690V
- Connection : Ferrule
- Diameter : 14
- Barrels : 1
Product Data
- UPC : 78200114202
- GTIN : 00782001142025
- Weight : 0.05
- Certification : UL Recognized Component CSA Certified IEC 269-4 Compliance
