Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

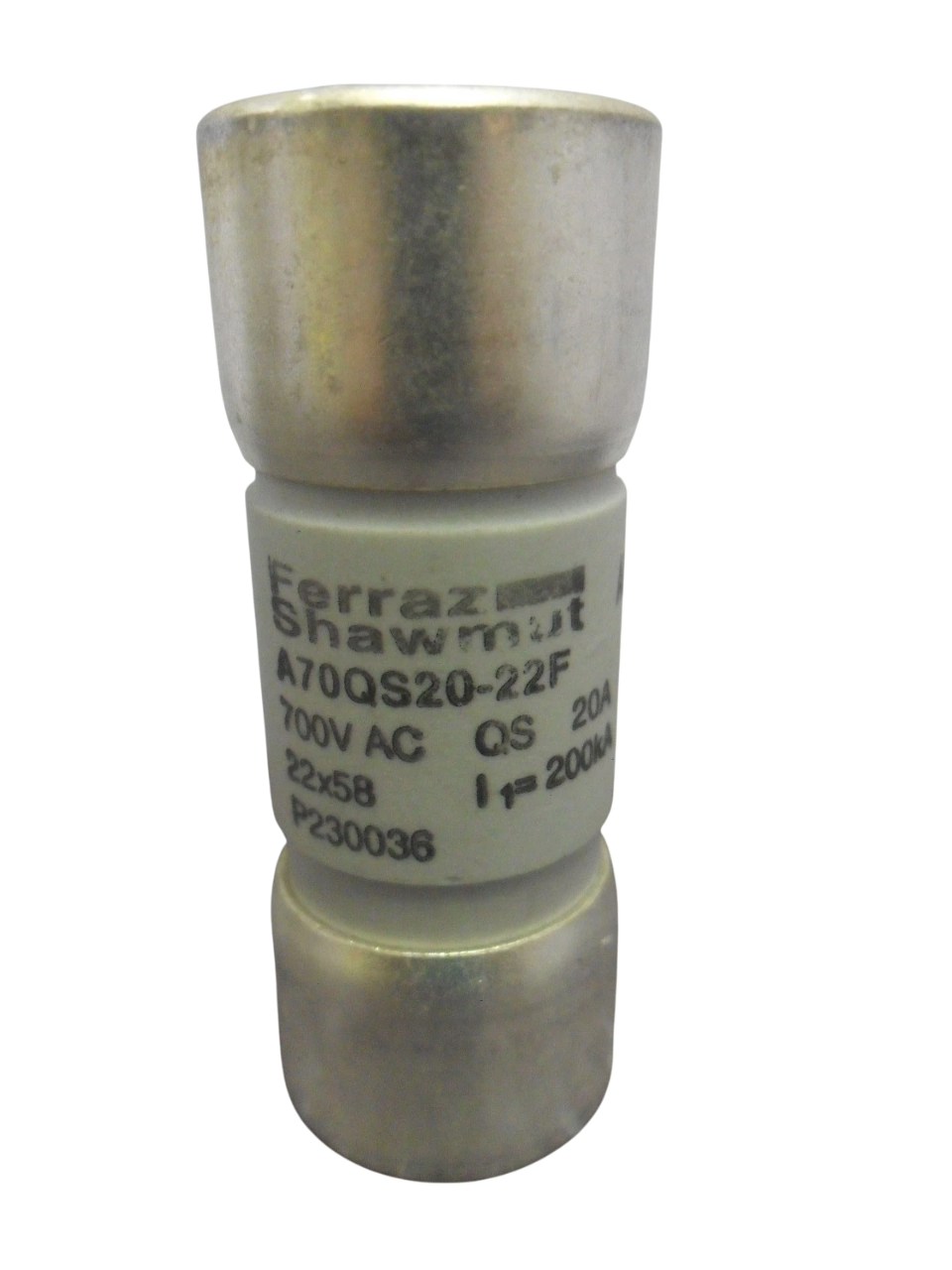

A70QS20-22F
A70QS20-22F is a high-speed semiconductor fuse designed for protecting sensitive electronic components in industrial applications.This Mersen Amp-Trap® A70QS20-22F fuse features a 20 Amp current rating, 690 Volt AC and 700 Volt DC voltage ratings, and a 200kA interrupting rating at 690VAC. It is a solid-fill French cylindrical fuse with a 22mm x 58mm physical size, providing extremely fast acting, current limiting protection equivalent to Bussmann FWP style fuses. It is IEC tested and suitable for capacitor discharge applications up to 890 VDC.
- Current Rating: 20 Amps
- Voltage Rating: 690 VAC / 700 VDC
- Interrupting Rating: 200kA at 690VAC, 100kA at 700VDC
- Fuse Style: Semiconductor, Amp-Trap® A70QS Series
- Physical Size: 22mm x 58mm (22F)
- Mounting Type: Ferrule Terminal
- Extremely Fast Acting, Current Limiting
- IEC Tested at 760VAC
- Equivalent to Bussmann FWP Style
- Capacitor Discharge Rated up to 890 VDC
Specifications
- Part Number: A70QS20-22F
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A70QS
- Voltage : 690
- Amperage : 20
- AIC rating : 200kA@690V
- Connection : Ferrule
- Diameter : 22
- Barrels : 1
Product Data
- UPC : 78200114206
- GTIN : 00782001142063
- Weight : 1
- Certification : UL Recognized Component CSA Certified IEC 269-4 Compliance
