Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
A70QS150-4K

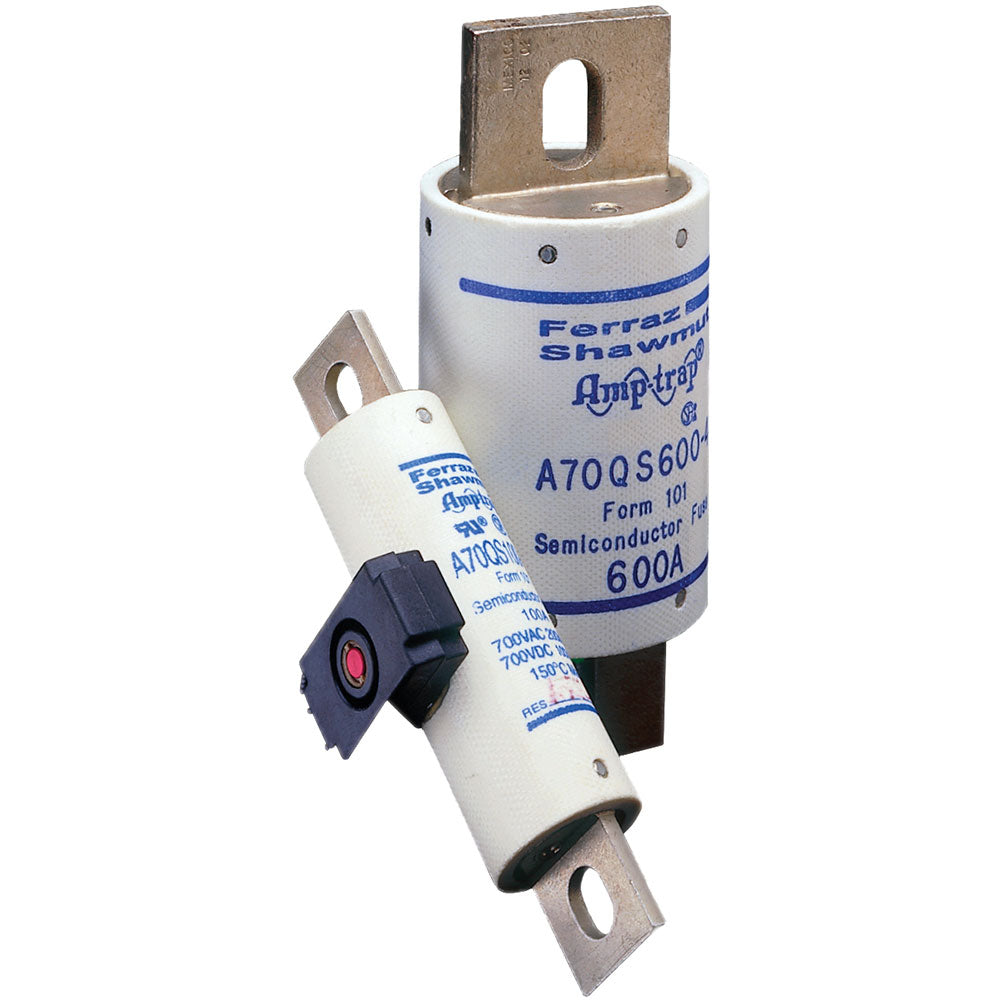

A70QS150-4K is a fast-acting semiconductor fuse from Eaton designed for high-performance circuit protection.This Eaton fuse features a 150 ampere rating with a voltage capacity of 700 volts AC and DC. It is a bolt-on style fuse from the A70QS-K series, offering a high interrupt rating of 100kA at 700V DC and 200kA at 700V AC. The fuse body is made of fiberglass with a cylindrical shape, measuring approximately 5-1/16 inches in length and 1-1/4 inches in diameter. It is UL recognized, CSA certified, and meets CE standards, making it suitable for demanding semiconductor protection applications.
- Key Specifications
- Amperage: 150A
- Voltage Rating: 700V AC / 700V DC
- Speed: Fast-Acting
- Interrupt Rating: 100kA DC / 200kA AC
- Series: A70QS-K
- Body Style: Bolt-On
- Body Material: Fiberglass
- Length: 5-1/16 inches
- Diameter: 1-1/4 inches
- Certifications: UL Recognized, CSA Certified, CE Compliant
- Part Number: A70QS150-4K
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A70QS
- Voltage : 700
- Amperage : 150
- AIC rating : 200kA@700V
- Diameter : 1.22
- Barrels : 1
- UPC : 78200114134
- GTIN : 00782001141349
- Country of Origin : Mexico
- Dimensions : x 5.09 in x
- Weight : 1
- Certification : CE, UL Recognized, Guide JFHR2, File 60314, CSA Certified LR12636
