Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
A70QS150-4

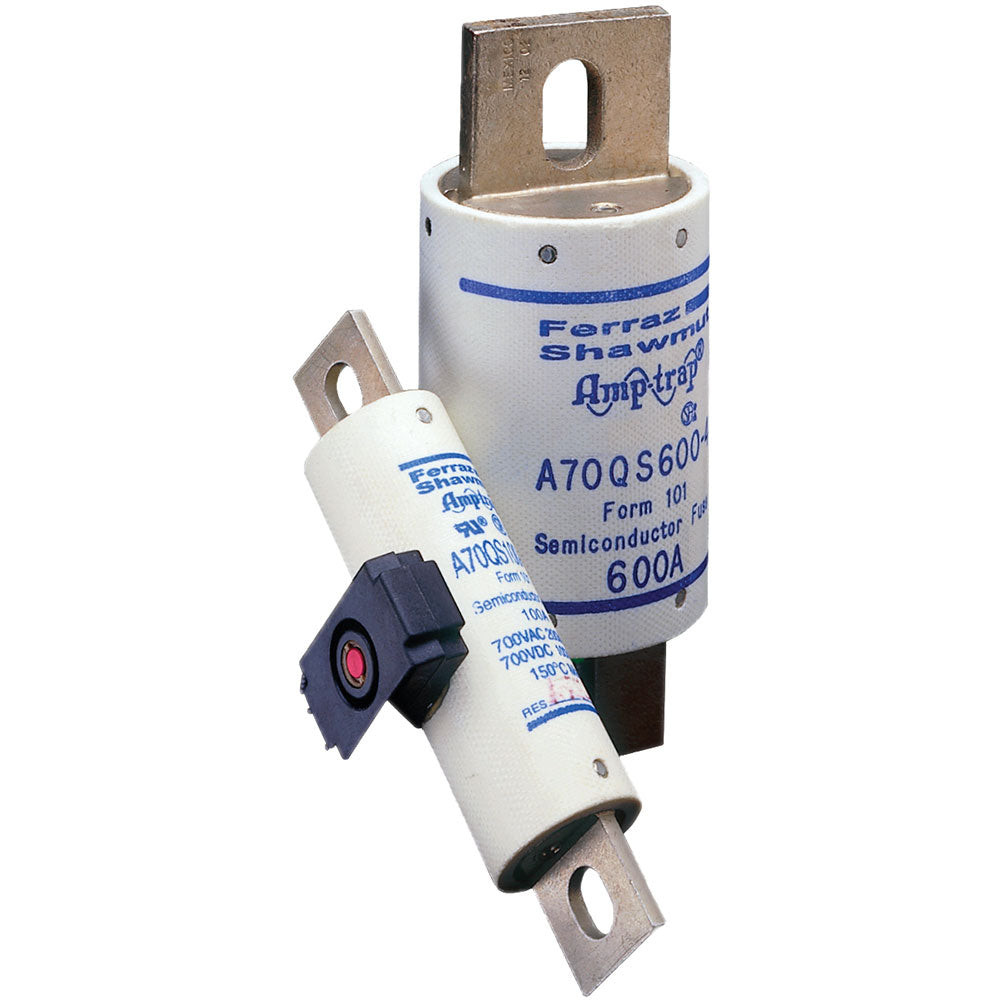

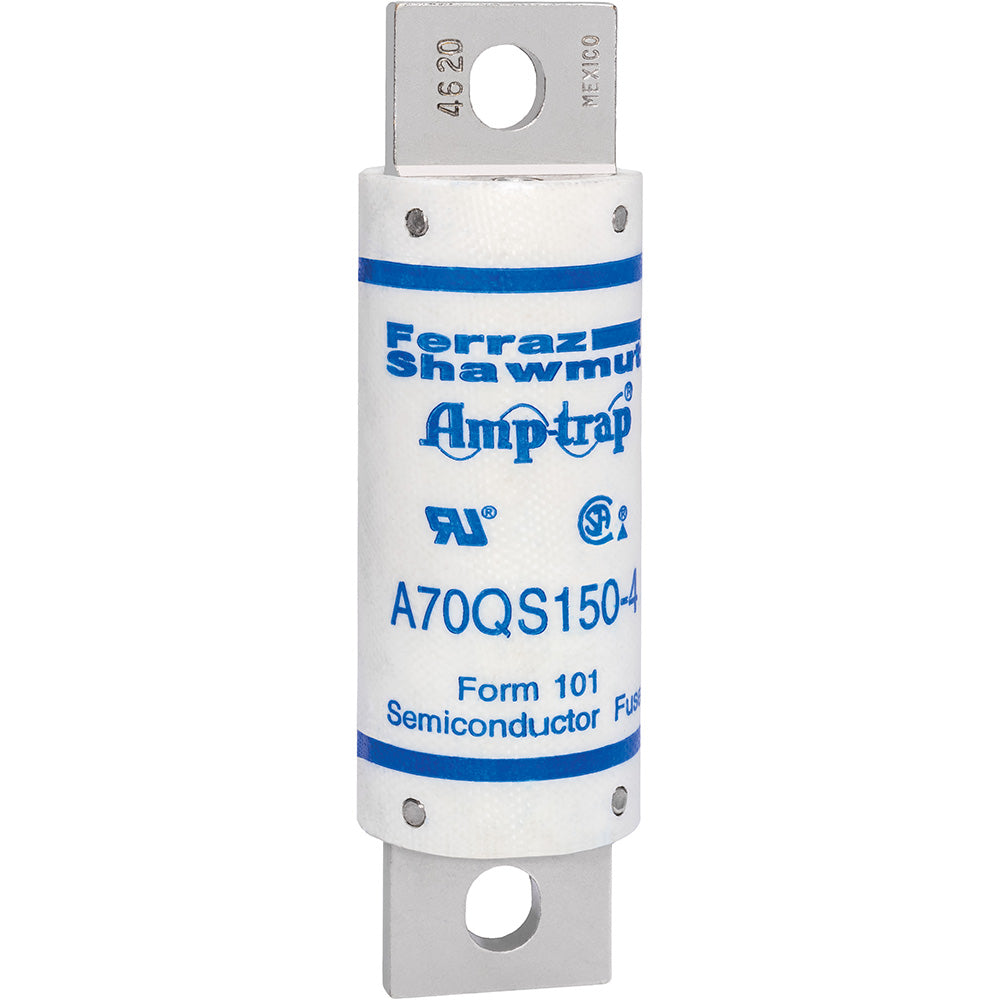

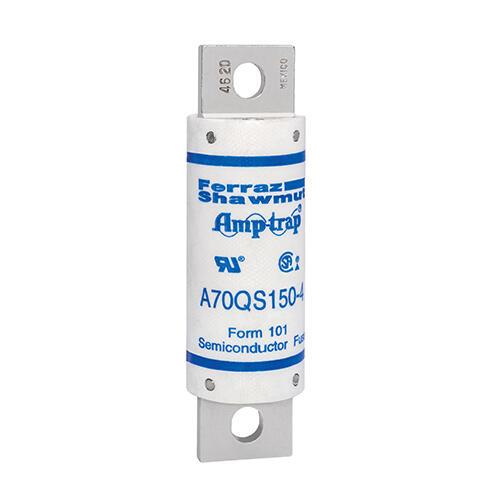

A70QS150-4 is a high-speed semiconductor fuse designed for 150 amps and 700 volts AC/DC applications with bolted blade mounting.This Eaton Mersen Amp-Trap fuse features a fast-acting trip unit suitable for protecting sensitive semiconductor devices. It supports an interrupt rating of up to 100kA at 700V DC and 200kA at 700V AC, ensuring reliable circuit protection. The fuse body is fiberglass with a bolt-on style for secure installation. Certified to UL, CSA, and CE standards, it meets stringent safety and performance requirements.
- Amperage: 150A
- Voltage Rating: 700V AC / 700V DC
- Poles: Single Pole
- Mounting Type: Bolted Blade
- Interrupt Rating: 100kA at 700V DC, 200kA at 700V AC
- Series: Amp-Trap A70QS
- Speed: Fast-Acting (High Speed)
- Body Material: Fiberglass
- Fuse Size: 4 3/8 in length x 1 1/4 in diameter
- Certifications: UL Recognized, CSA Certified, CE Compliant
Specifications
- Part Number: A70QS150-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 700
- Amperage : 150
- AIC rating : 200kA@700V
- Diameter : 1.22
- Barrels : 1
Product Data
- UPC : 78200194869
- GTIN : 00782001948696
- Weight : 1
- Certification : UL, CSA
