Product Info
- Manufacturer:American/Federal Pacific
- Sub-Category:Low Voltage Fuse
Description

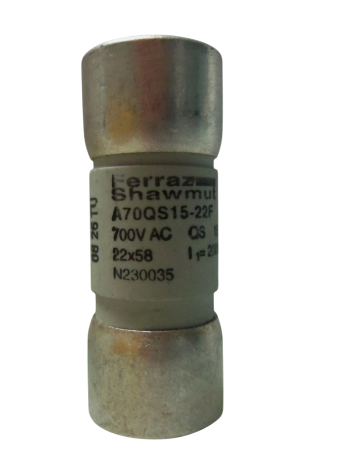

A70QS15-22F
A70QS15-22F is a high-speed semiconductor fuse designed for reliable protection in demanding electrical applications. This fuse features a cylindrical body with a 22mm diameter and 58mm length, rated for 15A at 690VAC and 700VDC. It is a solid-fill, current-limiting fuse with extremely fast-acting characteristics, ideal for protecting sensitive semiconductor devices. Engineered for high interrupting capacity, the A70QS15-22F offers 200kA interrupt rating at 690VAC and 100kA at 700VDC, meeting IEC standards for safety and performance. Its compact design and robust construction make it suitable for a wide range of industrial and commercial power distribution systems.
- Amperage: 15A
- Voltage Rating: 690VAC, 700VDC
- Interrupt Rating: 200kA (AC), 100kA (DC)
- Body Size: 22mm x 58mm
- Mounting Type: Cylindrical (Barrel)
- Series: A70QS
- Application: Semiconductor Protection
- Current Limiting: Yes
- Fast Acting: Yes
- Standards: IEC Rated
- Equivalent to: Buss FWP Style
- Manufacturer: Mersen (Federal Pacific)
Specifications
- Part Number: A70QS15-22F
- Manufacturer : American/Federal Pacific
- Brand : American/Federal Pacific
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A70QS
- Voltage : 690
- Amperage : 15
- AIC rating : 200kA@690V
- Connection : Ferrule
- Diameter : 22
- Barrels : 1
Product Data
- UPC : 78200135885
- GTIN : 00782001358853
- Weight : 1
