Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

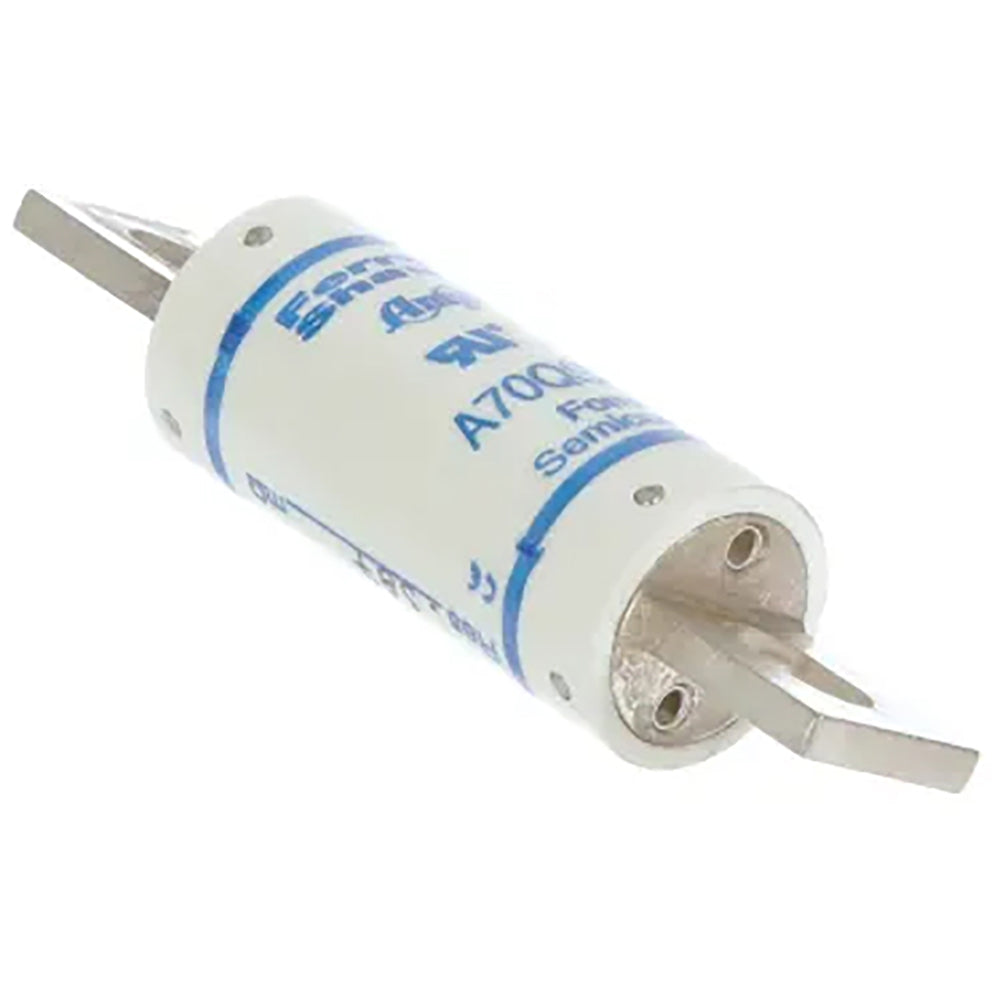

A70QS12-14F
A70QS12-14F is a premium Amp-trap French cylindrical semiconductor fuse designed for reliable protection in demanding industrial applications. This fuse features a compact 14mm x 51mm size and is engineered for superior cycling ability and low I2t, making it ideal for protecting sensitive semiconductor devices such as those found in small inverter drives and UPS systems. The A70QS12-14F offers a current rating of 12 amps and is rated for 690VAC (IEC) and 700VDC. It provides an interrupting rating of 200kA at 690VAC and 100kA at 700VDC, ensuring robust protection under fault conditions. The fuse is designed for ferrule mounting, allowing for versatile installation options. It is UL and CSA approved, meeting stringent safety and performance standards.
- Current Rating: 12 A
- Voltage Rating AC: 690 VAC (IEC), tested at 760 VAC
- Voltage Rating DC: 700 VDC
- Interrupting Rating AC: 200 kA
- Interrupting Rating DC: 100 kA
- Mounting Type: Ferrule
- Series: A70QS
- Frame Size: 14 x 51 mm
- Certifications: UL, CSA
- Application: Semiconductor protection
- Design: Solid-fill, cylindrical
- Feature: Low I2t for improved semiconductor protection
Specifications
- Part Number: A70QS12-14F
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A70QS
- Voltage : 690
- Amperage : 12
- AIC rating : 200kA@690V
- Connection : Ferrule
- Diameter : 14
- Barrels : 1
Product Data
- UPC : 78200114199
- GTIN : 00782001141998
- Weight : 5.19
