Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
A70QS100-4

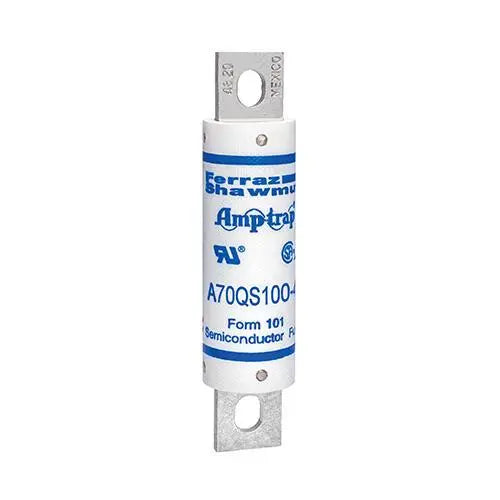

A70QS100-4 is a fast-acting semiconductor fuse from Eaton designed for high-speed circuit protection.
This Eaton A70QS100-4 fuse features a 100 ampere rating and is rated for 700 volts AC and DC. It has a bolt-on mounting style and provides current-limiting protection with an interrupt rating of up to 200kA at 700V AC and 100kA at 700V DC. The fuse body is fiberglass with a cylindrical shape, measuring approximately 4.38 inches in length and 1 inch in diameter. It meets UL, CSA, and CE certifications and is part of the Amp-Trap A70QS series, suitable for semiconductor protection applications.
- Amperage: 100A
- Voltage Rating: 700V AC / 700V DC
- Mounting Type: Bolt-On
- Interrupt Rating: 200kA AC, 100kA DC
- Series/Frame: A70QS Amp-Trap
- Speed: Fast-Acting
- Body Material: Fiberglass
- Dimensions: 4.38 in length x 1 in diameter
- Certifications: UL Recognized, CSA Certified, CE Compliant
- Non-Indicating Type
- Current Limiting Fuse
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: A70QS100-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A70QS
- Voltage : 700
- Amperage : 100
- AIC rating : 200kA@700V
- Diameter : 1
- Barrels : 1
Product Data
- UPC : 78200194867
- GTIN : 00782001948672
- Country of Origin : Mexico
- Dimensions : x 4.38 in x
- Weight : 0.51
- Certification : CE, UL Recognized, Guide JFHR2, File 60314, CSA Certified LR12636
