Product Info
- Manufacturer:American/Federal Pacific
- Sub-Category:Low Voltage Fuse
Description

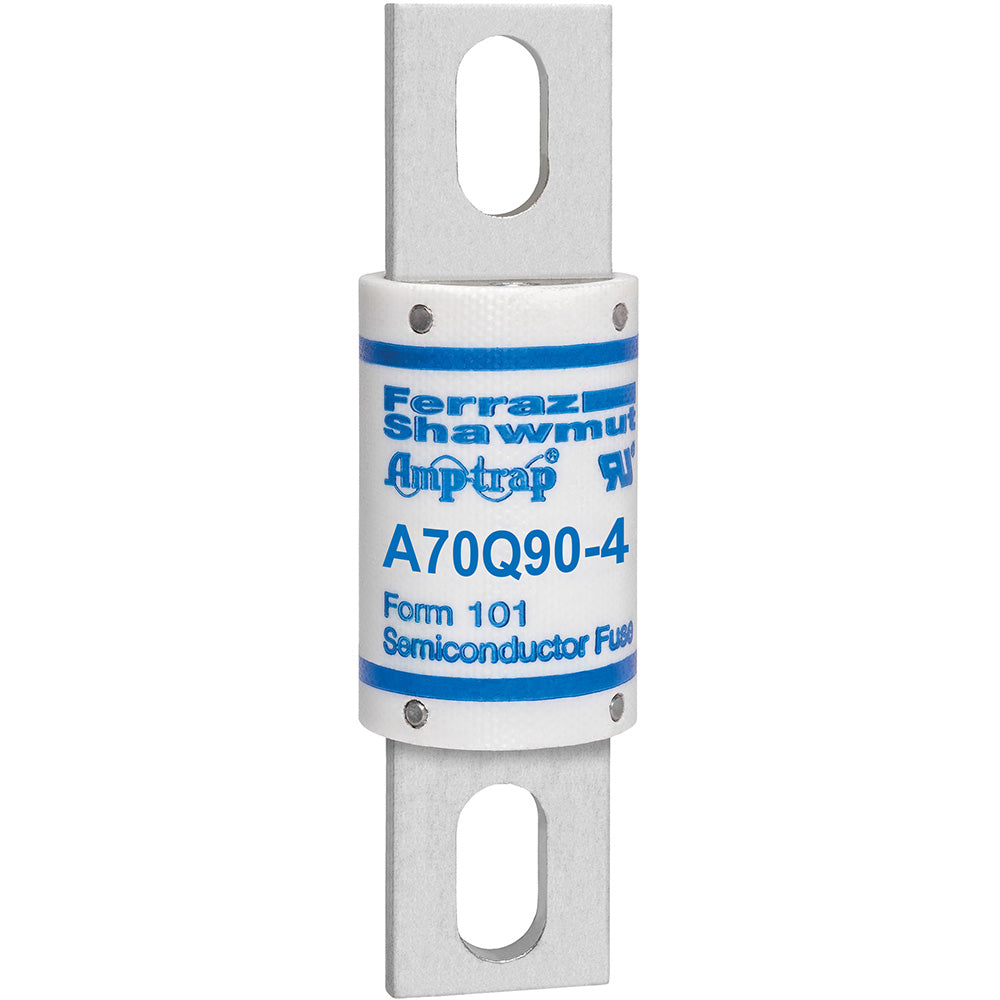

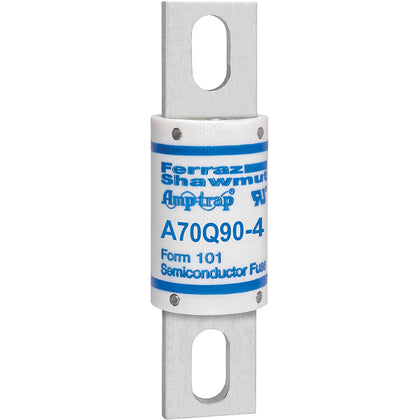

A70Q90-4
A70Q90-4 is a 90 amp, 700 volt semiconductor fuse from American/Federal Pacific's Amp-Trap series designed for fast-acting circuit protection.This A70Q90-4 fuse features a 1-barrel design with a diameter of 1.22 inches and length of 4.37 inches. It is rated for 700V AC and 650V DC operation with a 100 kiloampere interrupting rating. The fuse is extremely fast acting with current limiting characteristics, ideal for inverter and semiconductor protection applications requiring low I2t for superior circuit protection. It uses solid fill technology for enhanced reliability and has blade terminal type mounting.
- Key Specifications
- Amperage: 90A
- Voltage Rating: 700V AC / 650V DC
- Poles: 1 Barrel
- Mounting Type: Blade Terminal
- Interrupt Rating: 100 kAIC
- Series/Frame: A70Q Amp-Trap
- Speed: Extremely Fast Acting
- Diameter: 1.22 inches
- Length: 4.37 inches
- Technology: Solid Fill
- Application: Semiconductor/Inverter Protection
- Certifications: UL 198L
Specifications
- Part Number: A70Q90-4
- Manufacturer : American/Federal Pacific
- Brand : American/Federal Pacific
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A70Q
- Voltage : 700
- Amperage : 90
- AIC rating : 100kA@700V
- Diameter : 1.22
- Barrels : 1
Product Data
- UPC : 078200114112
- GTIN : 00782001141127
- Country of Origin : Mexico
- Dimensions : x 4.37 in x
- Weight : 12
- Certification : CE, UL Recognized, Guide JFHR2, File E60314
