Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
A70Q600-4

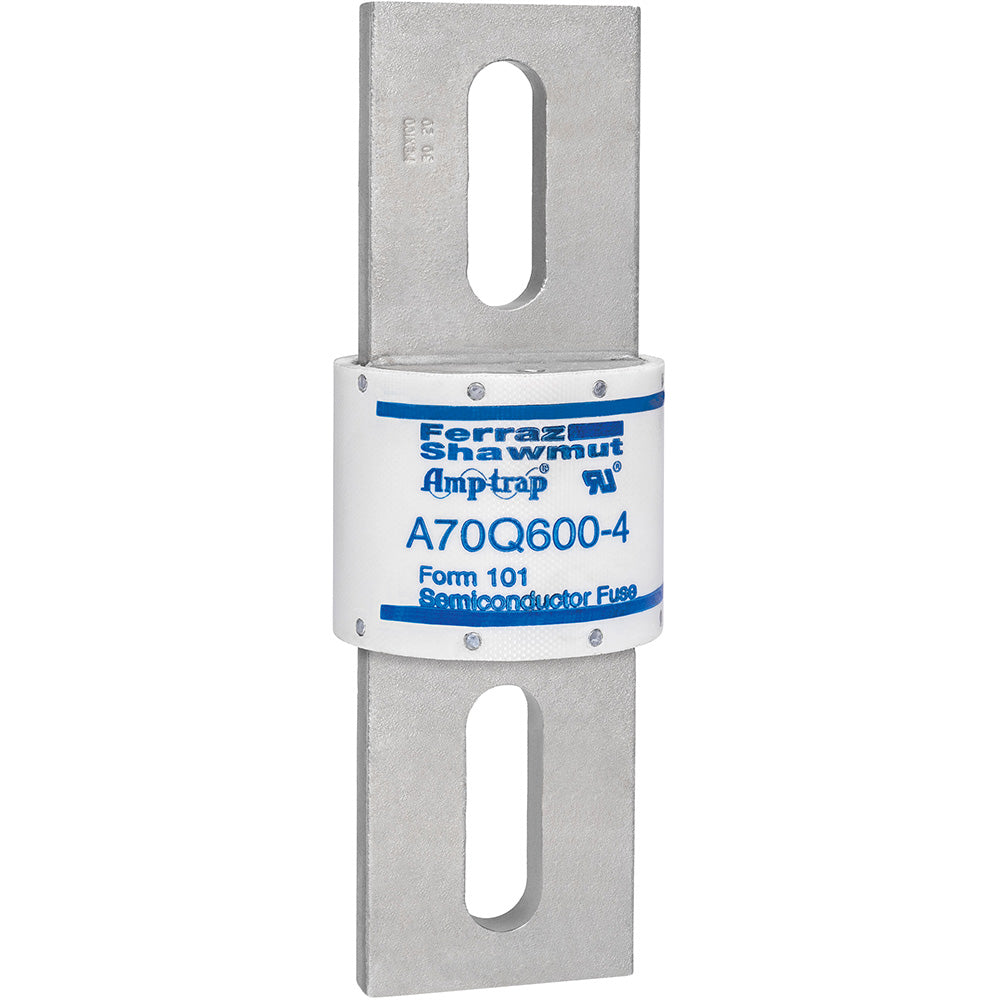

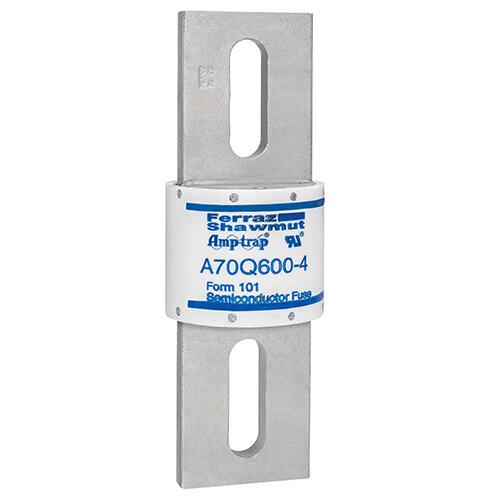

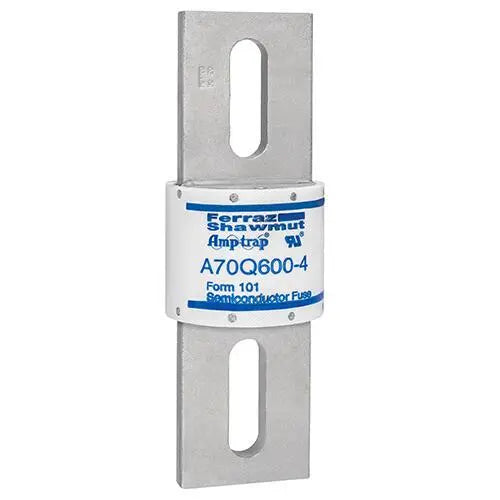

A70Q600-4 is a high speed semiconductor fuse designed for inverter applications requiring extremely low I2t and fast-acting protection.This Eaton (Mersen) A70Q600-4 fuse features a 600 ampere rating, 700 volts AC and 650 volts DC voltage rating, and a 1-pole bolted mounting style. It uses solid fill technology for enhanced reliability and provides the lowest I2t of any fuse in this voltage rating for optimal circuit protection. The fuse body is made of fiberglass with tin-plated copper terminals and is UL recognized and CE certified.
- Key Specifications
- Amperage: 600 Amp
- Voltage Rating: 700V AC, 650V DC
- Poles: 1
- Mounting Type: Bolted (Bolt-On)
- Interrupt Rating: 100kA at 700V AC and 650V DC
- Series: Amp-Trap® A70Q
- Body Material: Fiberglass
- Terminal Material: Tin-Plated Copper
- Speed: Fast-Acting
- Certifications: UL Recognized, CE
Specifications
- Part Number: A70Q600-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A70Q
- Voltage : 700
- Amperage : 600
- AIC rating : 100kA@700V
- Diameter : 2.5
- Barrels : 1
Product Data
- UPC : 782001141097
- GTIN : 00782001141097
- Country of Origin : Mexico
- Dimensions : x 7.09 in x
- Weight : 3
- Certification : CE, UL Recognized, Guide JFHR2, File E60314
