Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
A70Q150-4

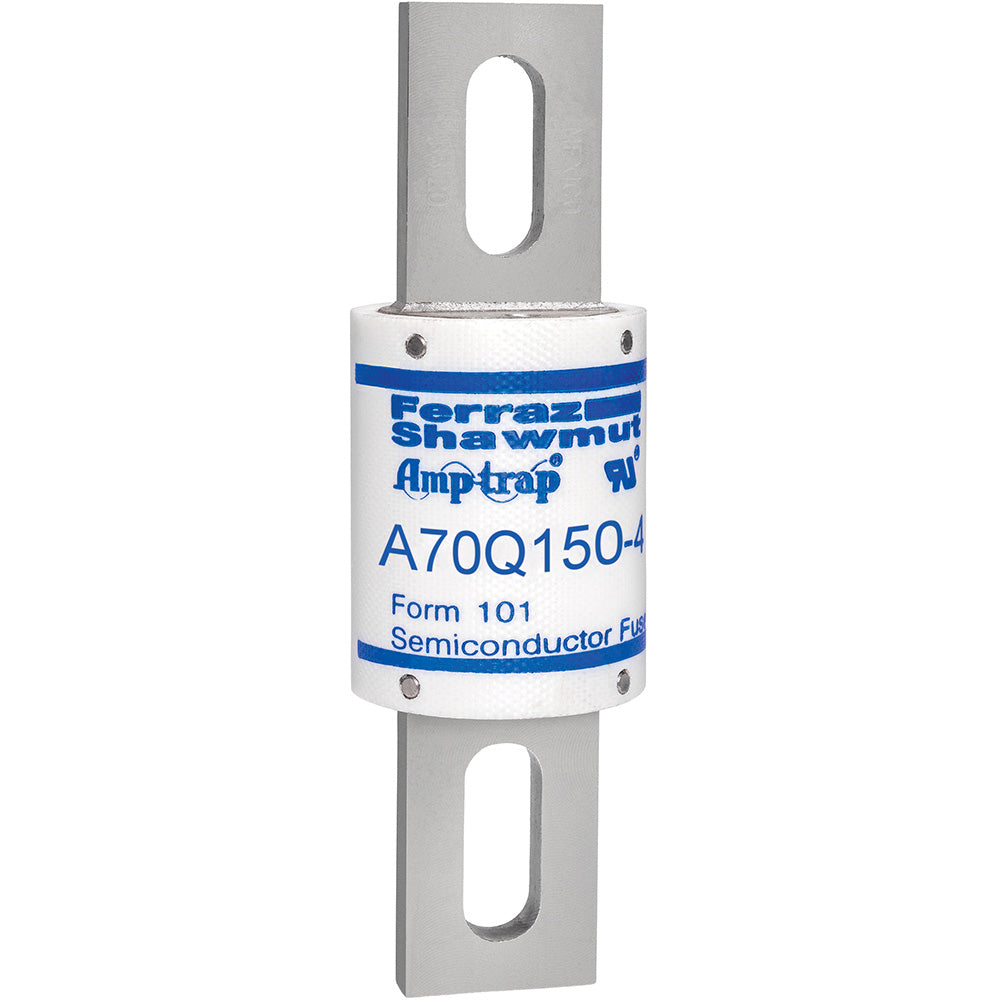

A70Q150-4 is a high-speed semiconductor fuse designed for reliable circuit protection in demanding applications.A70Q150-4 features a 150 amp rating with 700 volts AC and 650 volts DC voltage ratings, providing fast-acting, current-limiting protection. It has a bolt-on mounting type and a 100 kA interrupt rating, ensuring high performance and safety. The fuse is part of the A70Q series and constructed with a fiberglass body for durability. It is non-indicating and non-rejection type, UL recognized and CE certified.
- Key Specifications
- Amperage Rating: 150 A
- Voltage Rating: 700 V AC / 650 V DC
- Interrupt Rating: 100 kA
- Mounting Type: Bolt-On
- Series: A70Q
- Body Material: Fiberglass
- Speed: Fast Acting
- Type: Current Limiting Semiconductor Fuse
- Body Size: 1.5 in Diameter x 5.09 in Length
- Non-Indicating, Non-Rejection
- Certifications: UL Recognized, CE
- Part Number: A70Q150-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A70Q
- Voltage : 700
- Amperage : 150
- AIC rating : 100kA@700V
- Diameter : 1.5
- Barrels : 1
- UPC : 782001140960
- GTIN : 00782001140960
- Country of Origin : Mexico
- Dimensions : x 5.09 in x
- Weight : 5
- Certification : CE, UL Recognized, Guide JFHR2, File E60314
