Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
A70Q125-4

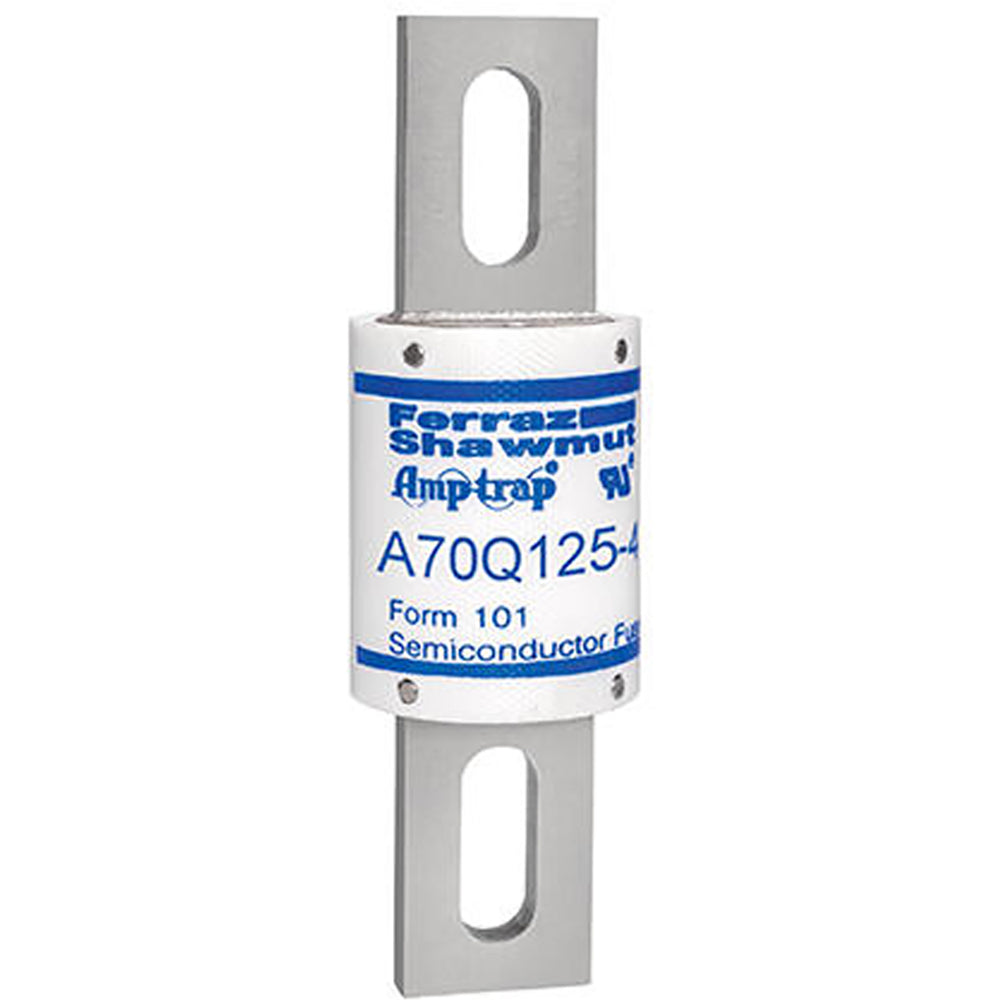

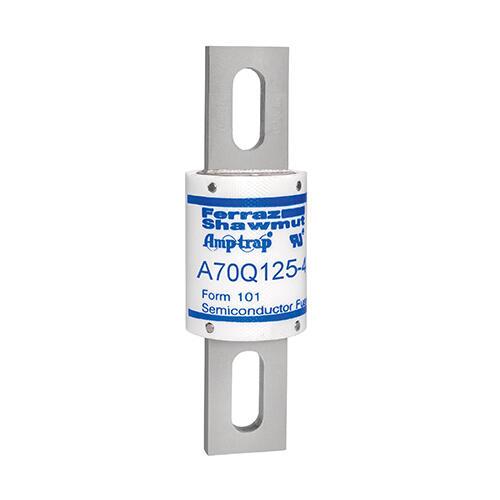

A70Q125-4 is a high speed semiconductor fuse from Eaton designed for low voltage circuit protection with a 125 amp rating and 700 volts AC capacity.This Eaton A70Q125-4 fuse features a cylindrical fiberglass body with a diameter of 1.5 inches and length of approximately 5.1 inches. It is rated for 125 amps continuous current and can interrupt up to 100,000 amps (100kA) at 700 volts AC and 650 volts DC. The fuse is designed for bolted mounting and provides fast acting, current limiting protection ideal for semiconductor circuits. It meets industry standards for reliable low voltage fuse performance.
- Key Specifications
- Amperage: 125A
- Voltage Rating: 700V AC, 650V DC
- Interrupt Rating: 100kA
- Poles: 1
- Mounting Type: Bolted
- Body Material: Fiberglass (GMG)
- Speed Type: High Speed (Fast Acting)
- Length: 5.09 inches
- Diameter: 1.5 inches
- Manufacturer: Eaton (Mersen/Ferraz Shawmut brand)
- Fuse Type: Semiconductor
Specifications
- Part Number: A70Q125-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 700
- Amperage : 125
- AIC rating : 100kA@700V
- Diameter : 1.5
- Barrels : 1
Product Data
- UPC : 078200114095
- GTIN : 00782001140953
- Country of Origin : Mexico
- Dimensions : x 5.09 in x
- Weight : 0.6
- Certification : CE, UL Recognized, Guide JFHR2, File E60314
